Elevator Servo Installation - Seagull Models EXTRA 260 Instruction Manual

Fuel pick-up
tube.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.

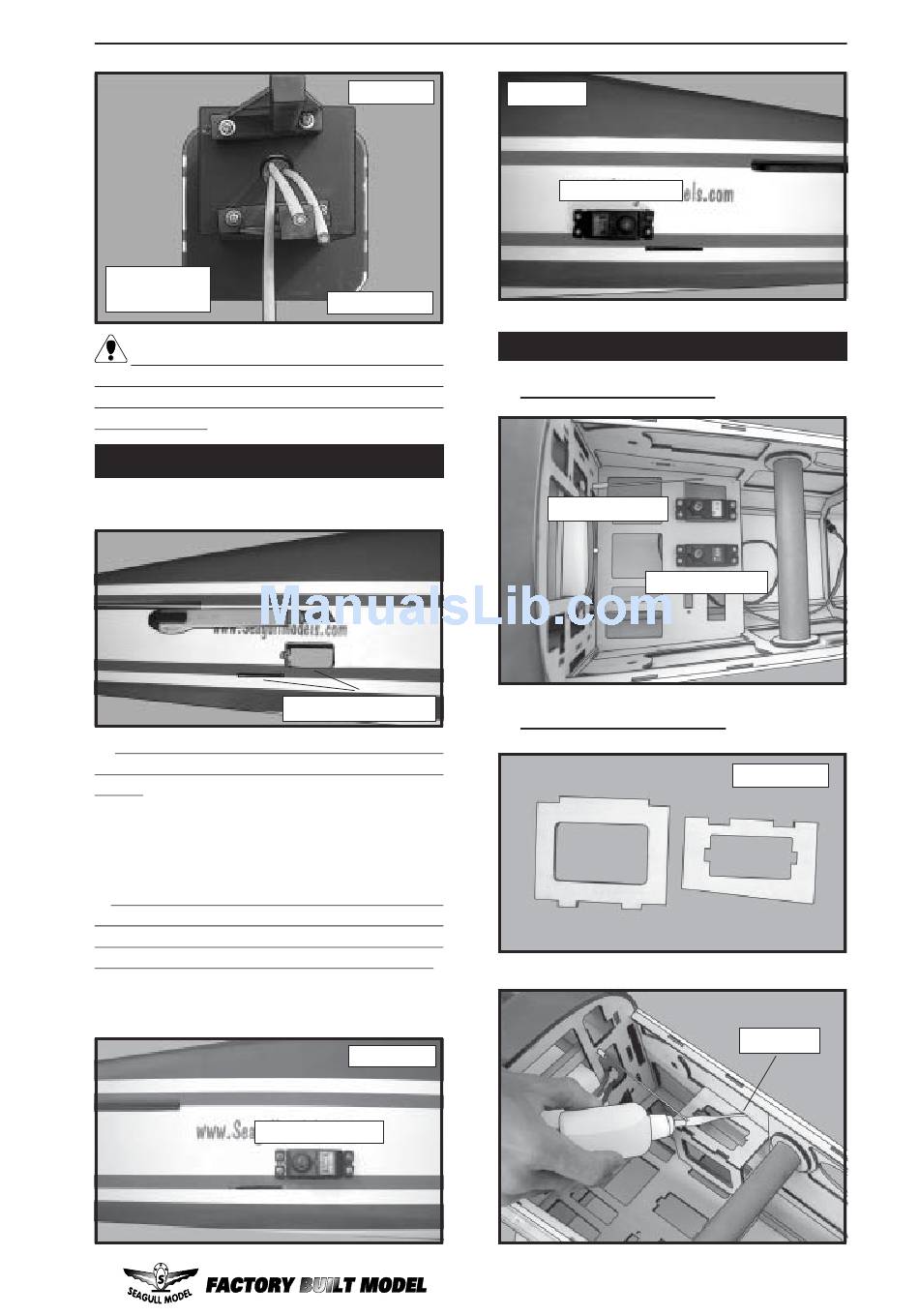

ELEVATOR SERVO INSTALLATION.

!
Locate and cut out the covering film from
1)
the servo holes in both sides of fuselage.
We recommended to use long servos arm
( 70mm diameter) for all servos without throttle
servo.
! 2) Install the rubber grommets and brass
collets onto the elevator servo. Test fit the
servo into the elevator servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
! 3) Secure the servos with the screws pro-
vided with your radio system.
Elevator servo.
www.seagullmodels.com
Vent tube.
Fuel fill tube.
Remove covering.
Right side.
Left side.
Elevator servo.
INSTALLING THE FUSELAGE SERVO.
Engine .91 - 2 stroke.
Throttle servo.
Rudder servo.
Engine 1.25 - 4 stroke.
Servo tray.
C/A glue.
