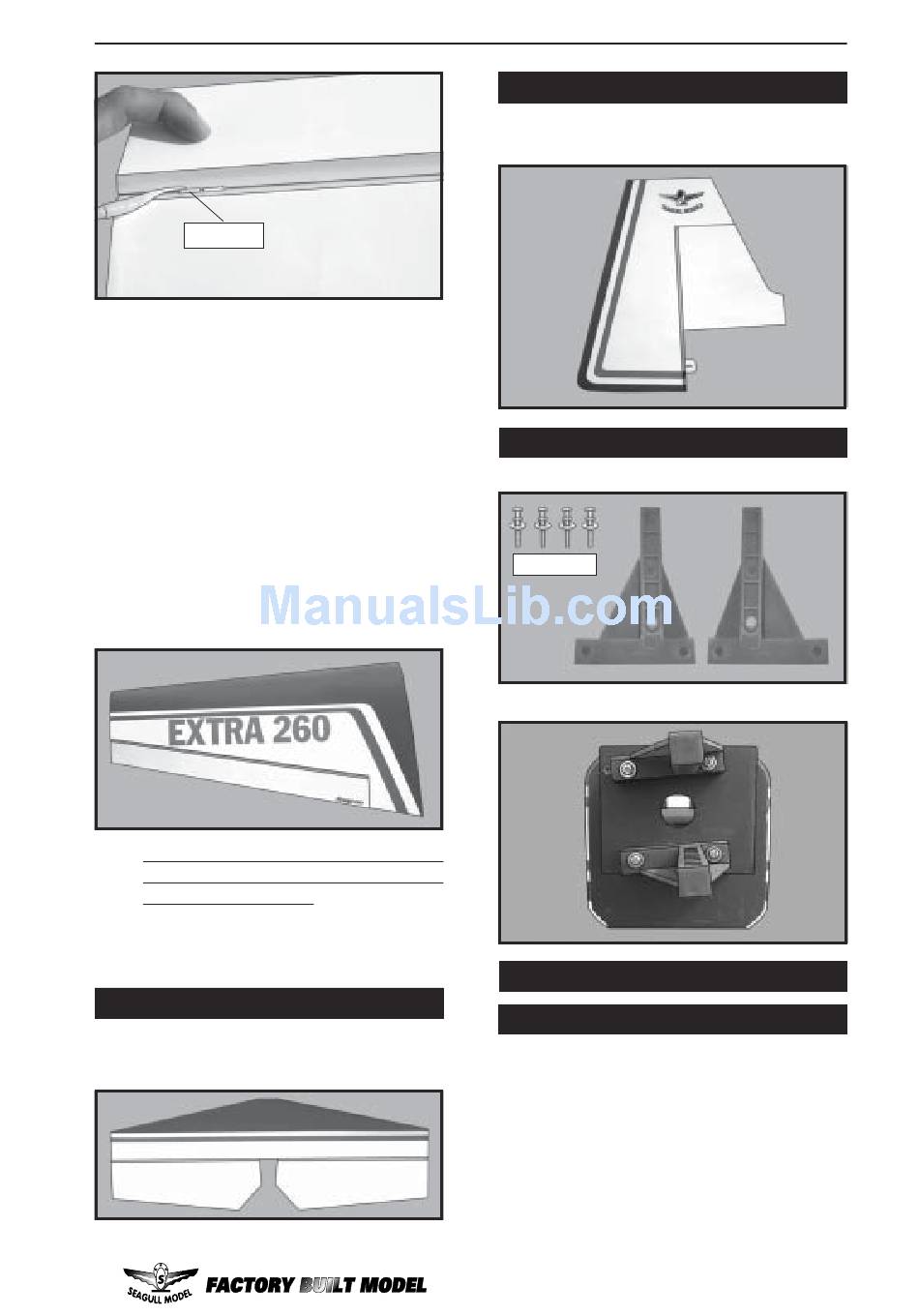

C/A glue.
! 6) Using C/A remover/debonder and a paper
towel, remove any excess C/A glue that may
have accumulated on the wing or in the aileron
hinge area.
! 7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
! 8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note:
Work the aileron up and down several
times to "work in" the hinges and check
for proper movement.

HINGING THE ELEVATOR.

Glue the elevator hinges in place using the
same tectniques used to hinge the ailerons.
www.seagullmodels.com
same tectniques used to hinge the ailerons.
See pictures below:
! 1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
! 2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.

HINGING THE RUDDER.

Glue the rudder hinges in place using the

ENGINE MOUNT.

4x30mm.
Mark and drill 4 holes for engine mount.
FUEL TANK.
INSTALLING THE STOPPER ASSEMBLY.
5
