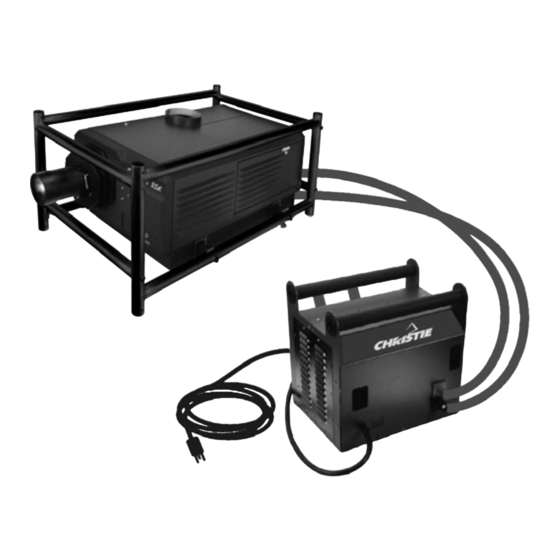

Christie roadie 25k User Manual

Hide thumbs Also See for roadie 25k:
Table of Contents

Advertisement

Quick Links

Download this manual
1
2
3
Basic
4
013-100209 Software Version 1.1 (08/05)
oadie

Table of Contents

Section
Contents
1.1
The Projector ....................................................................................................1-1
1.2
List of Components...........................................................................................1-3
1.3
Purchase Record and Service Contacts.............................................................1-3
1.4
Ethernet Settings for This Projector..................................................................1-3
1.5
Who Should Use This Manual..........................................................................1-3
2.1
Quick Setup ......................................................................................................2-1
2.2
Installation Considerations................................................................................2-5
2.3
Projector Position and Mounting ....................................................................2-10
2.4
Installing a Lens, Lamp & Cooling.................................................................2-16
2.5
Connecting Sources ........................................................................................2-22
2.6
Connecting Communications ..........................................................................2-28
2.7
Connecting Multiple Projectors ......................................................................2-32
2.8
Connecting the Ballast ....................................................................................2-38
2.9
Initial Power-up ..............................................................................................2-40
2.10
Maximizing Light Output ...............................................................................2-41
2.11
Basic Image Alignment...................................................................................2-41
2.12
Boresight Adjustment .....................................................................................2-42
2.13
Internal Optical Adjustments ..........................................................................2-45
2.14
Remote Keypad Protocols and Conversion.....................................................2-46
3.1
Projector Basics ................................................................................................3-1
•
Components/Features....................................................................................
3.2
Using the Keypads ............................................................................................3-5
3.3
Power-up Procedure / Checklist .....................................................................3-13
3.4
Power-down Procedure...................................................................................3-14
3.5
Navigating the Menus.....................................................................................3-15
3.6
Using Inputs and Channels .............................................................................3-18
3.7
Adjusting the Image........................................................................................3-24
3.8
Adjusting System Parameters and Advanced Controls ...................................3-38
3.9
Working with PIP ...........................................................................................3-48
3.10
Working with the Lamp ..................................................................................3-51
3.11
Status Menu ....................................................................................................3-58
3.12
Using Multiple Projectors...............................................................................3-59
3.13
Remote Control of the Projector.....................................................................3-69
3.14
Working with the Lenses ................................................................................3-70
3.15
Error Conditions .............................................................................................3-71
4.1
Warnings and Guidelines..................................................................................4-1
4.2
Maintaining Proper Cooling .............................................................................4-3
4.3
Maintenance and Cleaning................................................................................4-4
4.4
Replacing the Lamp and Filter..........................................................................4-6
4.5
Replacing a Lens.............................................................................................4-12
U s e r ' s M a n u a l
Roadie 25K User's Manual
Page
3-1
continued...
i

Advertisement

Table of Contents
loading

Related Manuals for Christie roadie 25k

Summary of Contents for Christie roadie 25k

  • Page 1: Table Of Contents

    Remote Control of the Projector..............3-69 3.14 Working with the Lenses ................3-70 3.15 Error Conditions .....................3-71 Maintenance Warnings and Guidelines..................4-1 Maintaining Proper Cooling ................4-3 Maintenance and Cleaning................4-4 Replacing the Lamp and Filter................4-6 Replacing a Lens.....................4-12 continued… 013-100209 Software Version 1.1 (08/05) Roadie 25K User’s Manual...
  • Page 2 Glossary ......................A-1 Appendices Remote Keypad....................B-1 Serial Communication Cables................C-1 Throw Distance....................D-1 System Integration ................... E-1 Optional Input Modules ................... F-1 NOTE: Due to continuing research, all information in this manual is subject to change without notice Roadie 25K User’s Manual...

  • Page 3: Introduction

    Roadie 25K output of up to 25000 ANSI lumens, and 10-bit image processing all standard, Roadie 25K images are stunning in their size, brilliance and quality. This tough, user-friendly projector is built for frequent transport and quick setup, even on sprawling networks—perfect for any large audience venue demanding effortless installation and operation.
  • Page 4 Large status light for long-distance alerts Double voltmeters: one for lamp ballast, one for projection head PROCESSING & PROJECTION: The Roadie 25K accepts a variety of signals for How The Projector Works projection in large screen applications. High brightness light is generated by a short-...

  • Page 5: List Of Components

    Should you encounter a problem with any part of the projector and require assistance, contact your dealer or one of the Christie service depots listed on the back cover of this manual. If you have purchased the projector, fill out the form below and keep with your records.

  • Page 7: Installation & Setup

    • Connect all 4 cables to the projection head prior to turning the ballast breaker on. • Follow all labeling exactly. Connect all 4 ballast cables—two DC power cables, and 2 HEAD-TO-BALLAST: communication/control cables—between the projector rear and lamp ballast. See Figure 2.1. Roadie 25K User’s Manual...
  • Page 8 Confirm that the ballast’s 3-phase status lights are on and that the adjacent voltmeter displays an acceptable AC level for your ballast and region. See Section 6, Specifications for details. Then set the ballast AC on/off switch to ON and listen for Roadie 25K User’s Manual...
  • Page 9 PROJ. STATUS compartment fans are running but the rest of the projection head is off. STEP 5 Set Lamp Type WARNING Explosion hazard. Keep the projection head OFF until you have defined which lamp type is installed. Roadie 25K User’s Manual...
  • Page 10 Factory Figure 2.3. Setting Lamp Size default=6000. 2. Enter either the Lamp Password (see Figure 2.3), or the Christie service password. NOTE: Password is required unless the “Enable Password” service option has been turned off. 3. Use to select which lamp is currently installed. Make sure the lamp type is also indicated on the lamp door label—use a small sticker from the front cover...

  • Page 11: Installation Considerations

    See Figure 2.4. Figure 2.4. Audience Coverage with a Flat Screen NOTE: Roadie 25K lenses are designed primarily for use with flat screens, but the projector’s depth-of-field range allows the lens to be focused on mildly curved screens as well.
  • Page 12 NOTE: Screens with aspect ratios (proportion) of 4:3 are typically specified by diagonal size, but screens having other aspect ratios—such as the 2048 x 1080 of the Roadie 25K— are usually specified by their horizontal width. See below. Table 2.1. Matching Lenses to Screen Size Lens Type Screen Width (<—>)
  • Page 13 Projector Variables: Electronic and Anamorphic Resizing The native resolution of the projector (1.89) closely matches the aspect ratio of “flat” source material (1.85). Wider scope material, however, may be “squeezed” Roadie 25K User’s Manual...
  • Page 14 This arrangement is the most flexible of all. Figure 2.9. Side Masking for Flat Refer to Figure 2.10 for a summary of the basic factors affecting wide displays in a variety of rooms. Roadie 25K User’s Manual...
  • Page 15 INSTALLATION AND SETUP Figure 2.10. Switching Between Flat & Scope Displays Roadie 25K User’s Manual...

  • Page 16: Projector Position And Mounting

    With zoom lenses, you’ll want to know the approximate minimum and maximum image sizes possible from a given throw distance so that the most appropriate lens is installed at the site (throw distance / screen width = throw ratio). 2-10 Roadie 25K User’s Manual...
  • Page 17 2048 x 1080 image from this projector can be moved by a maximum distance of 540 pixels, resulting in all of the image displayed above or below lens center (Figure 2.12). 2-11 Roadie 25K User’s Manual...
  • Page 18 Figure 2.13. Example of Alternative Offset Specification For any projector, if you find that you cannot raise or lower the image enough using mechanical vertical offset, try adjusting V-Position in the Size and Position menu 2-12 Roadie 25K User’s Manual...
  • Page 19 Take special care if using a mobile cart—avoid sudden stops, force and uneven surfaces that may cause the top-heavy cart to lurch and overturn. Make sure your mounting structure is reasonably level, then adjust one or more projector feet as necessary to fine-tune. 2-13 Roadie 25K User’s Manual...
  • Page 20 There is no need for the  FredFrame unless stacking with another Roadie 25K, or unless you decide to rig and fly the projector. To adjust the height and level of the projector, extend or retract the feet by rotating them.
  • Page 21 , then secure all corners of the frames together using 4 stacking pins (provided). You must also use the Roadie 25K Exhaust Adapter to route exhaust air from the bottom projector away from the top projector (not required with a side-by- side projector row).

  • Page 22: Installing A Lens, Lamp & Cooling

    NOTES: 1) The lens seals the projection head, preventing contaminants from entering the area of main electronics. Never attempt to operate the projector without a lens installed. Figure 2.18. Install the Lens During transport and installation, 2-16 Roadie 25K User’s Manual...
  • Page 23 This small bracket will help stabilize the lens within the mount to minimize vibration in projected images. It is packaged with other accessories such as the remote keypad, Roadie 25K User’s Manual, etc. (OPTIONAL) Anamorphic Lens Installation NOTE: The optional anamorphic lens mount is required for use of the 1.25x...
  • Page 24 Cooling Extractor Fan and Duct For any Roadie 25K with any lamp, install the Christie extractor fan and duct to pull warm exhaust air from the projector at a minimum rate of 600 CFM. Use either the 6- in. or the 6-ft. duct in one of the configurations shown below: Figure 2.21.
  • Page 25 Follow the installation guidelines provided below, securing all INSTALLATION: components in the order that best suits your site and installation requirements. WARNING Do not operate the projector without the Christie Extractor components installed. INSTALL DUCT ON PROJECTOR: Figure 2.23 below. Align either the 6- inch or 6-foot duct at the projector’s...
  • Page 26 3. To suspend the projector/fan assembly, always use appropriate rigging hardware and secure to adequate support structures at your site. The Christie 6-ft. duct-with-fan weighs approximately 22 lb. The Christie 6-in. duct-with-fan weighs approximately 15 lb. Use third-party extractors only if the minimum of 600 CFM airflow can be maintained.
  • Page 27 Fan” outlet on the rear panel of the projector. Use appropriate extension cords if necessary. The fan will power-up with the projection head, and will run for a 10 minute cool-down period after the projection head is powered off. 2-21 Roadie 25K User’s Manual...

  • Page 28: Connecting Sources

    INPUT 6 There are also several optional interfaces available for connecting other sources— these interfaces slide into the remaining unused option slot, and can be removed or installed while the projector is running. 2-22 Roadie 25K User’s Manual...
  • Page 29 INSTALLATION AND SETUP Figure 2.25. Roadie 25K Input Panel NOTES: 1) See Section 6, Specifications for details regarding compatible inputs. 2) Use high quality shielded cables only for all connections. 2-23 Roadie 25K User’s Manual...
  • Page 30 INPUT 1 sources–to , use the red, green and blue BNCs as described in YPbPr Signals (below). 3) This input does not route to the decoder and cannot be used for Composite Video or S-Video. 2-24 Roadie 25K User’s Manual...
  • Page 31 3.7, Adjusting the Image. 2) Do not connect digital component signals (known as YCbCr) to INPUT 1 INPUT . Use the appropriate optional digital interface installed in only. INPUT 5 Figure 2.27. Connecting a YPbPr Source 2-25 Roadie 25K User’s Manual...
  • Page 32 Connect as shown at right. Figure 2.28. Connecting Composite Video and/or S-Video Christie’s Dual SD/HD-SDI module is standard with this projector, and factory- Dual SD/HD-SDI installed in the first option slot (labeled ). Its loop-through capability enables...
  • Page 33 “RBG” input module installed—the optional HDTV Input Module used in earlier projectors is not needed or recommended. 2) See Appendix F, Optional Input Modules for a brief description of each interface. 2-27 Roadie 25K User’s Manual...

  • Page 34: Connecting Communications

    Note that response to a wired keypad must also be enabled in the Communications menu—see 3.8, Adjusting System Parameters and Advanced Controls for more information. Note that if both wired remotes are connected, communications via the side input have priority over communications via the rear. 2-28 Roadie 25K User’s Manual...
  • Page 35 RS232 communication. Note that RS422 is not compatible with RS232—connecting a RS232-compatible PC to RS422 can damage the equipment at either end. Consult the documentation provided with your PC if your are unsure. 2-29 Roadie 25K User’s Manual...
  • Page 36 Commands sent during initializing will be lost. CAUTION Do not use an RS422 port unless you are using equipment with RS422 capability. The voltage levels of this signal can damage incompatible equipment. 2-30 Roadie 25K User’s Manual...
  • Page 37 GPIO pins. For example, you can automatically dim the room lighting when the projector is turned on, or automatically turn the projector off when the lights are raised. For more information, refer to Appendix E. 2-31 Roadie 25K User’s Manual...

  • Page 38: Connecting Multiple Projectors

    XLRs), and one is on the side input panel (9-pin D-connector). Continue connecting projectors in this manner until you’ve reached the last projector in the chain, so that only the last projector has two unused ports. See Figure 2.33. RS422 2-32 Roadie 25K User’s Manual...
  • Page 39 You must enable this joining of network ports in the Communications menu—set the “Network Routing” option to “RS232 and RS422 Joined”. Serial messages will reach all serial ports. Figure 2.34. Examples of Joined RS232 and RS422 Networks 2-33 Roadie 25K User’s Manual...
  • Page 40 DHCP server function for supplying a valid and unique IP address is disabled. Instead, you must define a specific and static IP address by entering the new address in the Ethernet Settings submenu, or by sending 2-34 Roadie 25K User’s Manual...
  • Page 41 If you have a single controller and SPLIT NETWORK WITH ONE CONTROLLER – want a back-up serial link, connect one controller standard (e.g., RS232) to one physical end of the network and the other controller standard (e.g., 2-35 Roadie 25K User’s Manual...
  • Page 42 “Separate” option for “Network Routing” in the Communications menu. NOTE: When connecting RS422 to a projector, use either of the identical rear ports (6-pin XLR) or the 9-pin “RS422 IN” port on the side input panel. 2-36 Roadie 25K User’s Manual...
  • Page 43 For example, you may need to use both an RS422-compatible controller and an Ethernet-connected PC for 2-37 Roadie 25K User’s Manual...

  • Page 44: Connecting The Ballast

    Do not connect the ballast to AC unless the projection head and ballast are already Connecting the connected to each other, otherwise the exposed live ends of the heavy ballast cables Ballast could be a serious hazard. WARNING Connect the ballast to the projector FIRST, then connect to AC. 2-38 Roadie 25K User’s Manual...
  • Page 45 Connect to Projector Connect all 4 ballast cables—two DC Figure 2.40. Setting Up the Ballast power cables, and 2 communication/control cables—to the rear of the projector and to the lamp ballast. Refer back to Figure 2.1. 2-39 Roadie 25K User’s Manual...

  • Page 46: Initial Power-Up

    Size” of 2000, 3000, 4500 or 6000 watts, depending on its last setting (factory default=6000). See Figure 2.41. 2. Enter either the Lamp Password (see Figure 2.41), or the Christie service password. NOTE: A password is required unless the “Enable Password”...

  • Page 47: Maximizing Light Output

    Properly position the projector relative to the screen (refer back to 2.3, Projector Position & Mounting). Basic Optical Alignment Procedure 1. Display a good test pattern appropriate for analyzing image focus and geometry, such as a single crosshair centered across the image. 2-41 Roadie 25K User’s Manual...

  • Page 48: Boresight Adjustment

    For best results, try to minimize offsets by “aiming” the projector lens at the center of the image. Refer back to 2.3, Projector Position and Mounting for offset ranges and method of adjustment. 2-42 Roadie 25K User’s Manual...
  • Page 49 GOAL: If the image comes into focus on both sides Figure 2.46. Example of Poor Left/Right Boresight simultaneously, left/right boresight is fine—skip to Step 7. 2-43 Roadie 25K User’s Manual...
  • Page 50 Refocus at center of image. The goal is good focus at center and on all sides. 12. Adjust the “hold” screw to lock in place, and check boresight again. 2-44 Roadie 25K User’s Manual...

  • Page 51: Internal Optical Adjustments

    3 colors should overlap precisely to form pure white lines throughout the image, one or more poorly converged individual colors may appear adjacent to some or all of the lines. A qualified service technician can correct 2-45 Roadie 25K User’s Manual...

  • Page 52: Remote Keypad Protocols And Conversion

    (Figure 2.51). When Keypad A operates under a different protocol than Keypad B (or others), each keypad communicates only with the projector(s) having a matching protocol defined in memory. 2-46 Roadie 25K User’s Manual...
  • Page 53 Advanced Controls for further information on how to define which protocol the projector's infrared sensors (rear and front) will recognize. Figure 2.51. Independent Keypads and Projectors The Roadie 25k’s standard IR remote keypad can be set to one of seven different Remote Keypad Protocols protocols, “A”...
  • Page 54 IR”, select the protocol that matches the new protocol of the keypad at hand. The projector should now respond properly. SHORTCUT METHOD: Unlike earlier Christie projectors and keypads, there is no shortcut method for changing a keypad’s protocol through a special sequence of keystrokes. You must change the internal jumper settings.
  • Page 55 Set jumpers according to the desired IR protocol (refer back to Figure 2.53). Make sure to set jumper #4 between pins 1 and 2 as shown for all remote protocols. • Replace battery compartment cover. 2-49 Roadie 25K User’s Manual...

  • Page 57: Projector Basics

    Section 2, Installation and Setup. Basics Components/Features Chief Roadie 25K components are identified below: Figure 3.1. Basic Projector and Related Components Projector components are briefly described and listed in alphabetical order below: Air Filter Intake air flows through the filter before circulating in the front compartment to cool the main electronics.
  • Page 58 The breaker on the lamp ballast serves two purposes: 1) it is a power switch for the Roadie 25K ballast 2) it protects against over-current conditions of 50A or more. The breaker must be ON in order to enable normal Roadie 25K system power-up and operation.
  • Page 59 OPERATION Exhaust Duct Connect the projector’s 8” top exhaust hole to a rigid duct (provided). Add Christie’s 50/60 Hz heat extractor at the opposite end of the duct so that adequate airflow (600 cf/m) is maintained near the top of the projector. The vane switch in this vent will prevent start-up and/or trigger a shutdown if airflow is inadequate.
  • Page 60 Rear Connection Panel The rear connection panel links the projection head to AC power, to an external RS422 controller, and to the other Roadie 25K components (ballast, extractor fan and a tethered keypad). Figure 3.3. Rear Connection Panel CATHODE/ANODE CONNECTORS: For connecting the ballast’s 2 lamp cables...

  • Page 61: Using The Keypads

    NOTE: A smaller “lite” remote keypad is also available as an option. It has a single IR protocol, and can be converted to a wired remote simply by adding its cable and connecting to the RCA jack on the side of the projector. Roadie 25K User’s Manual...
  • Page 62 One of the two IR sensors on the projector will detect the signals and relay the commands for internal processing. Roadie 25K User’s Manual...
  • Page 63 NOTE: A smaller “lite” wired remote is available as an option. It has only one protocol, thus needs no change in jumper settings, and connects via RCA connector to the input panel on the side of the projector. Commands from this keypad have Roadie 25K User’s Manual...
  • Page 64 Help Help menu option. Or, if there is no menu present, press to access a list of general Help help topics. To exit any help text, press again (or Help Exit Roadie 25K User’s Manual...
  • Page 65 If PIP is enabled, pressing this key will change the PIP source. If the Dual SD/HD- SDI Module is installed here, and there are two inputs connected, its second input (B) INPUT 8 is considered and can be most easily accessed with . Or, if you are Input Roadie 25K User’s Manual...
  • Page 66 Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the 3-10 Roadie 25K User’s Manual...
  • Page 67 Eliminating one or more colors can help with certain diagnostics and setups, such as when accurately overlaying one image on top of another from stacked projectors. NOTE: Color enabling can also be implemented from numerous locations within the menu system. 3-11 Roadie 25K User’s Manual...
  • Page 68 1 – 5 and 7 – 9 and others. For example, Func can be programmed to trigger RTEs (Real Time Events) or to display custom menus. Refer to the separate Christie Serial Communications publication. Proj Projector Press...

  • Page 69: Power-Up Procedure / Checklist

    Lamp & Cooling. 3. Connect the head to AC. The voltmeter on the back of the projector will indicate PROJ STATUS the incoming level of AC, and the main light on the rear of the 3-13 Roadie 25K User’s Manual...

  • Page 70: Power-Down Procedure

    2. All fans, including the heat extractor, will continue running to cool the lamp, and will shut off automatically when the internal temperature is cool enough. WARNING Make sure to wait for the cooling fans! 3. Turn the ballast breaker/switch 3-14 Roadie 25K User’s Manual...

  • Page 71: Navigating The Menus

    “hint” text is included at the bottom of some menus. Figure 3.7. Context-sensitive Help From presentation level, press to access general Help Topics. Scroll as Help Exit necessary within a topic. Press Help to return to your presentation. 3-15 Roadie 25K User’s Manual...
  • Page 72 (or press Exit to cancel). For quick access, you access Gamma, Brightness, and Contrast “Direct” slidebars - Cont slidebars without traveling the menu system. For example, simply press 3-16 Roadie 25K User’s Manual...
  • Page 73 Press to move the cursor forward or NAVIGATE WITHIN THE EDIT WINDOW: to move the cursor backwards as desired. 3-17 Roadie 25K User’s Manual...

  • Page 74: Using Inputs And Channels

    An input is a source physically connected at the projector. Input 3 Do I Select an Input Input 1 Input 2 INPUT – Or a Channel? describes the source signal according to which input slot it is Input 4 Input 5 Input 6 connected. 3-18 Roadie 25K User’s Manual...
  • Page 75 2-digit channel, such as . You can have numerous distinct channels available for the same input, any of which can be selected by using the Chan key on the keypad followed by the 2-digit channel number. 3-19 Roadie 25K User’s Manual...
  • Page 76 NOTES: 1) The current channel is highlighted upon entering the channel list, or, if this channel is not displayed here, the first channel in the list is highlighted. 2) Channels created automatically do not appear in the channel list unless a parameter for the channel has been changed. 3-20 Roadie 25K User’s Manual...
  • Page 77 Channel Setup menu and do one of two things: • Press Func if you want to copy the selected channel or delete this or other channels. See Copying or Deleting a Channel below. 3-21 Roadie 25K User’s Manual...
  • Page 78 NOTE: For any deletion, a confirmation box appears to make sure that you really want to delete. Select “Cancel” (default) if you don’t want to delete after all. 3-22 Roadie 25K User’s Manual...
  • Page 79 If unchecked (default), all available image settings can be adjusted as desired. You cannot use Auto Setup with a locked channel. • Select this option to see or change Channel Edit PREVIOUS CHANNEL: settings for the previous channel in the Channel Setup list. 3-23 Roadie 25K User’s Manual...

  • Page 80: Adjusting The Image

    Refer to "Using Slidebars and Other Controls" (earlier in this section) if you need help using any of the options and controls. Changes made in the Size and Position menu are applied immediately and are saved when you exit the menu (press Exit Menu 3-24 Roadie 25K User’s Manual...
  • Page 81 2048 x 1080 resolution. For example, for a source with a native resolution of 800 x 600, “No Resizing” will center a small image within a black border—the black border areas are unused areas. See below. 3-25 Roadie 25K User’s Manual...
  • Page 82 Size controls both the image width and height in tandem, maintaining the current aspect ratio (proportion) of the displayed signal data. Vertical Stretch Vertical stretch adjusts the height of the image while keeping the width constant. Use Vertical Stretch to change the aspect ratio of the display. 3-26 Roadie 25K User’s Manual...
  • Page 83 This option moves the image up or down within the area of available pixels. NOTE: The value shown represents where the approximate center of the image lies in relation to the total number of pixels available vertically. This varies widely according to the signal—watch the image while adjusting. 3-27 Roadie 25K User’s Manual...
  • Page 84 (see Figure 3.16). For example, left Blanking zooms the right side of the PIP image; Right Blanking zooms the left side. There are no black bars. Figure 3.15. Blanking of a Primary Image Figure 3.16. Blanking of a PIP Image 3-28 Roadie 25K User’s Manual...
  • Page 85 50. Start with a high value and decrease so that dark areas do not become black (i.e., are “crushed”). Conversely, high brightness changes black to dark gray, causing washed-out images. NOTE: Brightness affects contrast, and should be adjusted first. 3-29 Roadie 25K User’s Manual...
  • Page 86 “Color Space” determines how the color components of an analog input signal or certain digital signals connected to INPUT are decoded for accurate color in 1, INPUT 2, INPUT 5 INPUT 6 the display. Although color space for these analog signals is 3-30 Roadie 25K User’s Manual...
  • Page 87 Selecting a specific standard forces the projector to process the signal according to this standard. 3-31 Roadie 25K User’s Manual...
  • Page 88 50 and that color temperature is properly set up on an internal grayscale test pattern. 3) There must be at least 6-12 consecutive white pixels present in the image for proper “Auto Input Level” function. Leave this control off after use. 3-32 Roadie 25K User’s Manual...
  • Page 89 4. If the blacks and/or whites appear OK, input levels do not need adjustment. If black levels are too high (and/or whites are too low, which is rare), you likely have a noisy source that is producing skewed input levels. Continue with Step 5. 3-33 Roadie 25K User’s Manual...
  • Page 90 100% black. Do not adjust too far. With the same color still active, adjust its corresponding “Input Drive” slidebar just until a single band of color appears at the opposite edge of the screen. This 3-34 Roadie 25K User’s Manual...
  • Page 91 Alternatively, if neither default is ideal, you may prefer to apply a user-defined custom gamma curve that has been created externally, named, and 3-35 Roadie 25K User’s Manual...
  • Page 92 Note that slidebar is enabled only if you have a source connected and have selected “Color Temperature” in the adjacent “Select Color Adjustment” pull-down list in the Advanced Image Settings menu. No function. RESERVED — 3-36 Roadie 25K User’s Manual...
  • Page 93 In most cases the proper Motion Filter setting is automatically determined according to the type of incoming source signal. However, if your source is noisy and/or inconsistent you may wish to “force” a setting to ensure stable 3-37 Roadie 25K User’s Manual...

  • Page 94: Adjusting System Parameters And Advanced Controls

    NOTE: The Configuration menu is recommended for experienced users/technicians only. The first six options in the Configuration menu are explained below: System Configuration — GENERAL — Language Choose from available languages to use in the projector’s menus. The change will take effect immediately. 3-38 Roadie 25K User’s Manual...
  • Page 95 Enter a checkmark to superimpose a small slidebar over the DISPLAY SLIDEBARS — current image whenever an adjustable parameter is selected directly with a key such Bright . If “Display slidebars” is unchecked, these slidebars can still be 3-39 Roadie 25K User’s Manual...
  • Page 96 Startup And No Signal – A splash screen appears at startup only if there is no source signal. To replace the default “Christie logo” splash screen (or other) with one of your own, use KoRE Librarian to download the desired .bmp to the projector. This will overwrite the current splash screen content in projector memory.
  • Page 97 Messages to and from the RS232 ports will also be RS232 AND ETHERNET JOINED: relayed to the Ethernet port, and vice versa. Any RS422 communications will be isolated. All messages reach all ports, regardless of type. ALL JOINED: 3-41 Roadie 25K User’s Manual...
  • Page 98 IR data accordingly, responding to one of the A – G protocols all or none. The projector’s default is adequate for most single- “All” projector installations. Select a specific protocol to work with only certain projectors in a multi-projector group. 3-42 Roadie 25K User’s Manual...
  • Page 99 NOTE: If the optional ChristieTWIST module is installed, this option is Keystone and Warping, and activates a submenu for defining custom image shapes. Please refer to documentation included with your Christie TWIST module. Use to correct a keystoned image shape in which both sides of your image are inclined toward the top or bottom edge.
  • Page 100 (red, green, blue, and white) used to generate the millions of colors produced in displays. You can create up to four custom color gamuts (User 1, 2, 3, or 4) with these adjustments. 3-44 Roadie 25K User’s Manual...
  • Page 101 Advanced Image Settings menu. NOTE: Keep new x,y coordinates within the Figure 3.23. CIE 1931 Chromaticity Diagram original color gamut triangle shown here. See 3.12, Using Multiple Projectors. PROCEDURE FOR X,Y ADJUSTMENTS: 3-45 Roadie 25K User’s Manual...
  • Page 102 Colors can also be enabled/disabled by entering the corresponding function code listed on the back of the standard remote keypad. Odd Pixel Adjustment NOTES: 1) Factory-set and rarely required by user. 2) Source must be >90 MHz. 3-46 Roadie 25K User’s Manual...
  • Page 103 16-step grayscale pattern in which the two black and white bands are known to be at opposite edges of the image, you can watch these isolated areas while adjusting individual blacklevels and input drives until both bands are just visible. 3-47 Roadie 25K User’s Manual...

  • Page 104: Working With Pip

    “primary” background. In a seamless switch (not currently available for this projector), the double processing essentially occurs between displays so that a full image relayed from one source can smoothly transform into a full image from 3-48 Roadie 25K User’s Manual...
  • Page 105 PIP. Options 8 and 9 pertain to source switching only, and are not supported in Figure 3.27. PIP Menu this projector. (SWITCHING NOT APPLICABLE FOR THE PROJECTOR) 3-49 Roadie 25K User’s Manual...
  • Page 106 See 3.6, Adjusting the Image for details. PIP Border Width Set the desired line thickness for your PIP window border. PIP Border Color Select the desired color for the PIP window border. 3-50 Roadie 25K User’s Manual...

  • Page 107: Working With The Lamp

    3000, 4500 or 6000 watts, depending on its most recent setting (factory default=6000). Select the lamp that is currently installed—if you are unsure, a qualified service technician must unlock the lamp door and look at the lamp. 3-51 Roadie 25K User’s Manual...
  • Page 108 “Cable Length (m)” slidebar to match that of your DC cables. By default from the manufacturer, this setting is 8 (approximately 25 feet). See Figure 3.31. Figure 3.31. Define Lamp Cable Length 3-52 Roadie 25K User’s Manual...
  • Page 109 This information also appears in the Status menu. LAMP S/N is the serial number recorded for the current lamp. When you install a new lamp and enter its serial number, the number will appear here. NOTE: Read-only. 3-53 Roadie 25K User’s Manual...
  • Page 110 (brightness) you wish to maintain—the projector will automatically adjust power as needed to maintain this intensity as closely as possible. Note that the intensity value is a correlation only and does not represent an actual Intensity lumens level. See “ ” below. 3-54 Roadie 25K User’s Manual...
  • Page 111 At this point, the tracking function terminates (i.e., the power level stabilizes) and the lamp will begin to dim normally. Either Intensity reduce your “ ” setting or replace the lamp. 3-55 Roadie 25K User’s Manual...
  • Page 112 Particularly in projectors rented for temporary installations, this setting may have to be changed from its last use. Adjustment range is 2-30m (6½-100 ft.). 3-56 Roadie 25K User’s Manual...
  • Page 113 Distance from the lens does not matter. You may need an attenuator, or wish to construct an internal foil aperture first. 3) This is an optional procedure—watch the intensity feedback shown near the top of the menu if preferred. 3-57 Roadie 25K User’s Manual...

  • Page 114: 3.11 Status Menu

    Refer to the Status menu for versions of hardware and software installed, the type (size) of lamp defined in projector memory, its current, voltage and hours logged in total and for a specific period (such 3-58 Roadie 25K User’s Manual...

  • Page 115: Using Multiple Projectors

    NOTE: Using the Service menu to set the projector’s primary colors as described above is not a requirement for color matching, and is rarely necessary. 3-59 Roadie 25K User’s Manual...
  • Page 116 (NOTE: MAGENTA, CYAN AND YELLOW ARE NO LONGER USED 5. In each projector, select a “User” color adjustment (1-4) to enable Color Adjustments by X,Y changes. Then enter your recorded x/y values into each menu (Figure 3.36). 3-60 Roadie 25K User’s Manual...
  • Page 117 7. All screens should now be color-matched. Apply this new “User” gamut to a source at any time by selecting it in the “Select Color Adjustment” list accessed in the Advanced Image Settings menu. 3-61 Roadie 25K User’s Manual...
  • Page 118 These matches are needed before you can achieve good Brightness Uniformity results. Light output and Brightness Uniformity can vary RUN LAMP FOR 100 HOURS— significantly during the first 100 hours of lamp use. For best results with new 3-62 Roadie 25K User’s Manual...
  • Page 119 FOR BEST RESULTS: Rather than examining the CENTER of each zone when assessing Brightness Uniformity adjustments, focus on extreme EDGES as indicated in the illustration at right. In either Color Adjustment menu, select a color. Then: 3-63 Roadie 25K User’s Manual...
  • Page 120 Left Uniformity menu (i.e., change their light output) until all portions of the left side closely match the center color temperature. Adjust an edge first (focusing on its center), then adjust its corners. See Figure 3.38. 3-64 Roadie 25K User’s Manual...
  • Page 121 Figure 3.39. Match Zones to Center Light Output Step 4: Readjust Color Temperature (level of red/green/blue) in 8 Zones Return to Steps & and, if necessary, fine tune the zones so that they all still exhibit a single color temperature. 3-65 Roadie 25K User’s Manual...
  • Page 122 “Uniformity Enable” checkbox at the top of the Brightness Uniformity menu. Christie Edge Blending is an innovative set of software functions that can quickly and Edge Blending easily blend whitelevels along the edges of multiple adjacent projected images to create a single seamless larger image.
  • Page 123 A setting Figure 2. “Midpoint” Examples of 50 means the midpoint is approximately 50% black—for best results in most applications, keep fairly close to this default. 3-67 Roadie 25K User’s Manual...
  • Page 124 “Standard” and continue with Step 3. SET STARTING POINTS FOR ADJUSTMENT Set all blend widths to 0. Go to “More” and set everything in the Edge Blending (2) menu to 50. 3-68 Roadie 25K User’s Manual...

  • Page 125: Remote Control Of The Projector

    RS232 or RS422 port (recommended), or open an Ethernet socket (i.e., Telnet) between your controller and the valid projector address. Valid ASCII codes and messages are documented in the Christie Serial Communications document available at the Christie website. Connect your PC to the projector’s Ethernet port. In your VIA WEB INTERFACE —...

  • Page 126: Working With The Lenses

    “scope” images, or in rooms having fixed side masking but a very short throw ratio (throw distance/screen width). With the projector in its permanent location, turn the lens zoom Zoom ring on the primary lens to enlarge or shrink the image in each direction as necessary. 3-70 Roadie 25K User’s Manual...

  • Page 127: Error Conditions

    • To be notified via a serial communication only, select the “ ” option. RS232 • To receive both types of notifications, select “ ”. • To disable error messages (except for “invalid user key entry”, which can’t be hidden), select “ ”. 3-71 Roadie 25K User’s Manual...
  • Page 128 Exit Exit from presentation level, but may indicate the need for service by a qualified service technician. NOTE: System messages appear on-screen only if Display Error Messages has been set to “Screen” or “All”. 3-72 Roadie 25K User’s Manual...
  • Page 129 LCD status display window. For example, the code “27” means the lamp could not be turned on. Error codes for this projector are listed in Table 3.6. 3-73 Roadie 25K User’s Manual...
  • Page 130 GENERAL Software error. Contact dealer/factory. CRC error in flash ROM. Download new software. Engineering-only programming is complete. Call Christie, replace TIPM. Attempting to download s/w code without being in boot mode Invalid interrupt. Power off/on. If persists, contact dealer/factory. User has forced system to stay in boot mode...

  • Page 131: Maintenance

    FIRE HAZARD. Keep hands, clothes, and all combustible material at least 1m away from the concentrated light beam of the lamp. WARNING Position all cables where they cannot contact hot surfaces or be pulled or tripped over. Roadie 25K User’s Manual...
  • Page 132 Wear Protective Clothing Never open the lamp door unless you are wearing authorized protective clothing such as that included in a Christie Protective Clothing Safety Kit #598900-095. Recommended protective clothing includes—but may not be limited to—protective gloves, latex lab gloves, double-layer 0.040” acetate face shield, and a quilted ballistic nylon jacket or a welder’s jacket.

  • Page 133: Maintaining Proper Cooling

    FILLING THE COOLER: The cooler should require filling only upon projector installation. Fill with Christie’s 50/50 mix of distilled water and ethylene glycol. Top up as necessary, making sure not to over fill. Roadie 25K User’s Manual...

  • Page 134: Maintenance And Cleaning

    When to Check LENS: A small amount of dust or dirt on the lens has minimal effect on image quality—to avoid the risk of scratching the lens, clean the lens only if absolutely required. See below. Roadie 25K User’s Manual...
  • Page 135 1. First brush dust off with a camel-hair brush and/or blow dust away with compressed air. 2. Fold a clean microfibre cloth and dampen with methanol. Make sure to wipe evenly with the smooth portion of the cloth that has no folds or creases. Do not Roadie 25K User’s Manual...

  • Page 136: Replacing The Lamp And Filter

    It is recommended that you replace the air filter with every lamp replacement, or sooner in dusty or dirty environments. Check its condition monthly in all projectors. NOTE: For this procedure you will need a compatible Christie Xenon CDXL or CXL Lamp Replacement Procedure lamp as shown in Section 6, Specifications—never install a lamp intended for a...
  • Page 137 (saved from previous installation) and then seal it in a heavy carton on the floor where it cannot fall or be bumped. WARNING Handle box with extreme caution—the lamp is hazardous even when packaged. Dispose of lamp box according to safety regulations for your area. Roadie 25K User’s Manual...
  • Page 138 8.2. Rest the anode (+) end of the lamp on the lamp cradle as shown in Figure 4.1, right, and slip the positive lamp connector over the bulb end. 8.3. Tighten set screws in both negative and positive lamp connectors (Figure 4.2). Roadie 25K User’s Manual...
  • Page 139 With a blue dot label or dry-erase pen, mark the lamp door’s LAMP INSTALLED label to indicate the size of the newly installed lamp — 2.0, 3.0, 4.5, or 6.0 kW. A supply of blue dot labels is secured inside the front cover of this manual. Roadie 25K User’s Manual...
  • Page 140 Status Display at the rear of the projector will show a “Lamp Size” of 2000, 3000, 4500 or 6000 watts, depending on its last setting. Factory default=6000. 2. Enter either the Lamp Password shown in Figure 3.29, or the Christie service password. A password is required unless the “Enable Password” service option has been turned off.
  • Page 141 Slide the old filter down-and-out and discard. Insert the new air filter, following the labeling for proper inside/outside orientation. Slide all the way up, under top tabs. WARNING Use only Christie filters. Never operate the projector without the filter installed. STEPS 5-6...

  • Page 142: Replacing A Lens

    NOTES: 1) Make sure the lens UP label faces up, otherwise boresight may need readjustment. 2) Keep the lens safety tether attached to the projector for use with any lens ring clamp. This cable must be used with a flown projector. 4-12 Roadie 25K User’s Manual...

  • Page 143: Troubleshooting

    8. If the lamp does not ignite after a second and third try, replace the lamp. 9. If there is no “buzzing” or high voltage “snaps” indicating that the igniter is attempting ignition, there may be a problem with the igniter itself (Christie service required).

  • Page 144: Ethernet

    3. Make sure the shutter is OPEN. Menu 4. Make sure there is not a full black test pattern selected for display—press to access test patterns, then cycle patterns with keys. 5. Is the input selected? Check connections. Roadie 25K User’s Manual...
  • Page 145 2. Resizing, vertical stretch and positioning options may be improperly adjusted for the incoming source signal. 3. You may need an anamorphic lens for sources that have been supplied in a re- sized and vertically stretched format. Roadie 25K User’s Manual...
  • Page 146 4. If the distance between the input source device and the projector is greater than 25 feet, signal amplification/conditioning may be required. 5. If the source is a VCR or off-air broadcast, detail may be set too high. Roadie 25K User’s Manual...

  • Page 147: Specifications

    100% = image moved by a distance of 540 pixels up or down (100% of image half-height). 70% = image moved by distance of 410 pixels left or right (40% of image half-width). Simultaneous vertical/horizontal offsetting may limit the range of each. See illustrations in 2.3, Projector Position and Mounting. Roadie 25K User’s Manual...
  • Page 148 • Bi-level or tri-level composite • Serrations and/or Equalization pulses • MacroVision for stnd. & prog. video Polarity Positive or negative (for composite or separate H & V) Maximum return loss (VSWR) 1.2:1 dB @ 200 MHz Roadie 25K User’s Manual...
  • Page 149 If range appears limited, shield the IR sensor, turn off lights, or change your fluorescent ballast. Ethernet Number of ports Standard 100Base-TX Connector type RJ-45 Max. baud rate 115200 RS232 Serial Input Number of connectors Connector type 9-pin subminiature D (female=in, male=out) Max. baud rate 115200 Roadie 25K User’s Manual...
  • Page 150 Lamp (DC) Max. operating voltage 46 VDC Max. start-up voltage 155 VDC Max. current consumption 180 A Max. power consumption 6600 W Connector type Female CAM Lock receptacle (+red) Male CAM Lock receptacle (–black) With extractor Roadie 25K User’s Manual...
  • Page 151 • CISPR 24 / EN55024:1998 (all parts of immunity characteristics for ITE) Temperature 10°C to 35°C (50°F to 95°F) Operating Environment Humidity (non-condensing) 20% to 80% Altitude 0 – 3000 meters Tilt, any angle 15° max. Roadie 25K User’s Manual...
  • Page 152 25.6” x 49.0” x 20” (65 cm x 124.5 cm x 50.8 cm) Size with Anamorph (W x L x H ) 25.6” x 64.6” x 20” (65 cm x 164.1 cm x 50.8 cm) (incl. anamorphic lens mount & lens) See Figure 5.1 on the following page. Roadie 25K User’s Manual...
  • Page 153 SPECIFICATIONS Roadie 25K User’s Manual...
  • Page 154 Lamp (choices shown on page 8-4) 1 primary zoom lens, high-brightness (see below) Cabling kit and misc. assembly hardware Roadie 25K User’s Manual Options Standard High-Brightness Lenses 1:1 fixed lens — part# 38-809071-01 1.25 – 1.45 :1 — part# 38-809073-01 1.45 –...

  • Page 155: A Glossary

    Anamorphic lenses can restore a ‘scope’ (CinemaScope) or ‘flat’ format film frame to the correct wide-screen appearance by increasing its horizontal proportion. The Roadie 25K uses a 1.25x scope anamorphic lens option only. The American National Standards Institute is the organization that denotes the ANSI measurement standard for lamp brightness.
  • Page 156 The fraction of a motion picture frame image that is intended to be viewed by the Clean Aperture audience. The clean aperture is subjectively free of edge artifacts and lies within the screen area framed by curtains in a cinema. Aspect ratio is often referenced to the clean aperture. Roadie 25K User’s Manual...
  • Page 157 Also known as digital scaling. The process of averaging pixel information when Digital Interpolation scaling (resizing) an image up or down. When reducing the size of an image, adjacent pixels are averaged to create fewer pixels. When increasing the size of an image, Roadie 25K User’s Manual...
  • Page 158 The difference between the center of the projected image and the center of the Horizontal Offset projector lens. For clarity, offset is often expressed as the maximum percentage of the Roadie 25K User’s Manual...
  • Page 159 It is caused when the lens surface is not parallel to the screen.  A Christie software feature where internal samples of light in a projector guide the LampLOC precise position of the lamp along 3 axes—vertical, horizontal and distance to lens—...
  • Page 160 The equipment in a digital cinema theatre which delivers previously recorded signals Playout in real time to the playback system. The playout may also receive, store, and process these signals prior to delivering them. Roadie 25K User’s Manual...
  • Page 161 Also known as Y/C. The horizontal or vertical frequency at which images are generated. Also known as Scan Frequency scan rate or refresh rate. Roadie 25K User’s Manual...
  • Page 162 A signal selector such as the Marquee Signal Switcher formerly manufactured by Christie that can be connected for adding more sources to a projector. The part of the video signal that stabilizes the picture. Sync can occur in three forms: Sync "Composite sync": the horizontal and vertical components are together on one...
  • Page 163 YCbCr YPbPr A high-end analog component video signal. Sometimes called YUV, Component, or Y, R-Y, B-Y, the YPbPr signal by-passes video decoding. See YPbPr. Zoom The adjustment of image size by means of a zoom lens. Roadie 25K User’s Manual...

  • Page 165: Remote Keypad

    A p p e n d i x B Remote Keypad Figure B.1. Standard Remote Keypad Roadie 25K User’s Manual...

  • Page 167: Serial Communication Cables

    Using a rear RS422 port (3-pin XLR) or Ethernet link for downloading new software to the projector is not supported. RS422 CONNECTIONS: Depending on your RS422-compatible device or RS232- RS444 converter, the cabling wiring can vary, and may require a custom cable. Roadie 25K User’s Manual...
  • Page 168 SERIAL COMMUNICATION CABLES Roadie 25K User’s Manual...
  • Page 169 SERIAL COMMUNICATION CABLES Roadie 25K User’s Manual...

  • Page 171: Throw Distance

    All formulas are in centimeters (cm). NOTE: Minimum throw distance is 15 feet for all lenses except as noted. Roadie 25K User’s Manual...
  • Page 172 NOTE: Throw ratios, formulas and throw distances apply to both standard and optional high-contrast lenses. Roadie 25K User’s Manual...
  • Page 173 3605 3741.5 1419.3 1473.0 3705 3844.5 1458.7 1513.6 3805 3947.5 1498.0 1554.1 3905 4050.5 1537.4 1594.7 4005 4153.5 1576.8 1635.2 4105 4256.5 1616.1 1675.8 4205 4359.5 1655.5 1716.3 4305 4462.5 1694.9 1756.9 4405 4565.5 1734.3 1797.4 Roadie 25K User’s Manual...
  • Page 174 4067 3216.7 2762.5 1601.2 1266.4 1087.6 4167 3296.3 2830.8 1640.6 1297.8 1114.5 4267 3375.9 2899.2 1679.9 1329.1 1141.4 4367 3455.5 2967.5 1719.3 1360.4 1168.3 4467 3535.1 3035.8 1758.7 1391.8 1195.2 4567 3614.7 3104.1 1798.0 1423.1 1222.1 Roadie 25K User’s Manual...
  • Page 175 4067 2793.7 2238.9 1601.2 1099.9 881.5 4167 2862.7 2294.2 1640.6 1127.0 903.2 4267 2931.7 2349.4 1679.9 1154.2 925.0 4367 3000.7 2404.7 1719.3 1181.4 946.7 4467 3069.7 2460.0 1758.7 1208.5 968.5 4567 3138.7 2515.3 1798.0 1235.7 990.3 Roadie 25K User’s Manual...
  • Page 176 4067 2251.5 1680.6 1601.2 886.4 661.6 4167 2307.1 1722.1 1640.6 908.3 678.0 4267 2362.7 1763.5 1679.9 930.2 694.3 4367 2418.3 1805.0 1719.3 952.1 710.6 4467 2473.9 1846.5 1758.7 974.0 727.0 4567 2529.5 1888.0 1798.0 995.9 743.3 Roadie 25K User’s Manual...
  • Page 177 4067 1810.7 1334.3 1601.2 712.9 525.3 4167 1855.3 1367.2 1640.6 730.4 538.3 4267 1900.0 1400.0 1679.9 748.0 551.2 4367 1944.6 1432.9 1719.3 765.6 564.1 4467 1989.2 1465.7 1758.7 783.2 577.0 4567 2033.8 1498.5 1798.0 800.7 590.0 Roadie 25K User’s Manual...
  • Page 178 4067 1331.0 935.0 1601.2 524.0 368.1 4167 1363.8 958.0 1640.6 536.9 377.2 4267 1396.5 981.0 1679.9 549.8 386.2 4367 1429.3 1004.0 1719.3 562.7 395.3 4467 1462.0 1027.0 1758.7 575.6 404.3 4567 1494.7 1050.0 1798.0 588.5 413.4 Roadie 25K User’s Manual...
  • Page 179 4060 927.0 660.0 1598.4 364.9 259.8 4160 949.8 676.3 1637.8 374.0 266.2 4260 972.7 692.5 1677.2 383.0 272.6 4360 995.6 708.7 1716.5 392.0 279.0 4460 1018.5 725.0 1755.9 401.0 285.4 4560 1041.3 741.2 1795.3 410.0 291.8 Roadie 25K User’s Manual...
  • Page 180 726.0 466.7 1601.2 285.8 183.7 4167.0 743.9 478.2 1640.6 292.9 188.3 4267.0 761.8 489.7 1679.9 299.9 192.8 4367.0 779.7 501.2 1719.3 307.0 197.3 4467.0 797.5 512.6 1758.7 314.0 201.8 4567.0 815.4 524.1 1798.0 321.0 206.3 D-10 Roadie 25K User’s Manual...

  • Page 181: System Integration

    Example 1. Turn room lighting on when the projector is turned off. (Assumes a control/automation unit is configured to turn the lights on when pin 2 of its input goes high.) (GIO C2 O) Set pin #2 configuration to output (GIO 2 H) Set pin #2 to high (state) Roadie 25K User’s Manual...
  • Page 182 (GIO C2 I) Set pin #2 configuration as input (RTE G 2 H “(PWR 1)”) Power on when pin #2 set to high (RTE G 2 L “(PWR 0)”) Power off when pin #2 set to low Roadie 25K User’s Manual...

  • Page 183: Optional Input Modules

    Inputs are 75 terminated. RGB400BA Features ◊ accepts 3, 4, or 5 wire RGB video (sync-on-green, composite sync, or separate horizontal and vertical sync) ◊ BNC connectors for RGB signal inputs ◊ Buffered signals to a remote destination Roadie 25K User’s Manual...
  • Page 184 This module receives analog RGB input signals from IBM PC compatibles or PC250 Analog Input Module Macintosh computers. Video inputs are 75 terminated. Outputs are provided for 38-804609-xx buffered loop-through to another display device. Roadie 25K User’s Manual...
  • Page 185 10-bit YCbCr 4:2:2 video. Either input can be set as the active primary or secondary part of a Picture-in-Picture display, and either input can be looped through to one (or both) of the module’s BNC outputs. See Section 2.5, Connecting Sources for more information. Roadie 25K User’s Manual...
  • Page 187 Bad Sync, 3-72 And Enter Key, 3-22 Ballast And Function Key, 3-21 Breaker, 3-2 Channels Cable Length Setting, 2-5 Creating Automatically, 3-20 Cables, 3-3 Creating in Channel Setup Menu, 3-22 Connection to AC, 2-2, 2-38 INDEX-1 Roadie 25K User’s Manual...
  • Page 188 Edge Blending Menu, 3-44 Context-sensitive, 3-15 Enable Decoder AGC, 3-31 From presentation level, 3-16 Enter Key, 3-12 General Topics, 3-15 Error Messages Help Key, 3-8 Bad Sync, 3-72 Hoisting, 2-15 How to Find, 3-71 Horizontal Offset Range, 2-13 INDEX-2 Roadie 25K User’s Manual...
  • Page 189 Keypads, IR or Wired. See Remote Keypads Description, 3-3, 3-70 Level Detector, 3-48 Level Value, 3-48 Leveling (Hor.) Lamp Final Side-to-Side, 2-42 Adjusting Position, 3-57 Liquid Cooling, 2-22 Cables from Ballast, 3-52 LiteLOC, 3-55 Compatible Lamps, 2-17 Troubleshooting, 5-2 Cooldown, 3-14 INDEX-3 Roadie 25K User’s Manual...
  • Page 190 Odd Pixel Adjustment Menu, 3-47 Changing in Projector, 3-42 Offset Adjustment on Lens Mount, 3-71 Pull-Down Lists, Use of, 3-17 Offset, Horizontal, 2-13, 6-1 Offset, Vertical, 2-11, 6-1 Option 1, 3-9 Optional Input Modules, 3-48 INDEX-4 Roadie 25K User’s Manual...
  • Page 191 Yellow Notch Filter, 2-45 Connection, 2-1 YPbPr, 3-31 Splash Screen Setup. See Menu:Splash Screen Connection, 2-25 Setup Split Networks And Downloads, 2-37 Options for Setup, 2-35 Zoom Adjustment (Primary Lens), 3-70 Stand-by, 2-3, 3-58 Status Light, Large, 3-5 INDEX-5 Roadie 25K User’s Manual...
