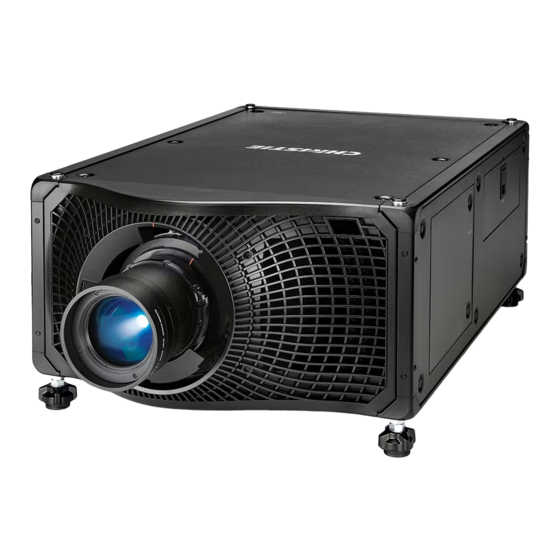

Christie Boxer 30 Installation And Setup Manual

Bb.2
Hide thumbs Also See for Boxer 30:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Installation and Setup Guide
020-102017-08
Boxer 30 (Bb.2)

Advertisement

Table of Contents
loading

Related Manuals for Christie Boxer 30

Summary of Contents for Christie Boxer 30

  • Page 1 Installation and Setup Guide 020-102017-08 Boxer 30 (Bb.2)
  • Page 2 The warranty does not apply to any product where the serial number has been removed or obliterated. The warranty also does not apply to any product sold by a reseller to an end user outside of the country where the reseller is located unless (i) Christie has an office in the country where the end user is located or (ii) the required international warranty fee has been paid.

  • Page 3: Table Of Contents

    Adjusting boresight..........26 Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 4 Configuring Boxer 30 to work with Christie Link....... . 31...
  • Page 5 3GIC video formats..........50 Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 6: Introduction

    Read all safety and warning guidelines before installing or operating the projector. This projector must be operated in an environment that meets the operating range specification. Use only the attachments and/or accessories recommended by Christie. Use of others may result in the risk of fire, shock, or personal injury.

  • Page 7: Installation Safety And Warning Guidelines

    Caution! If not avoided, the following could result in minor or moderate injury. • ELECTRICAL and BURN HAZARD! Use caution when accessing internal components. • Only Christie qualified technicians are authorized to use the tools provided in the toolbox. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc.

  • Page 8: Light Intensity Hazard Distance

    • E—Represents the top view of the projector. • F—Represents the side view of the projector. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 9: Product Labels

    144-108100-XX 4.96-7.69:1 HB zoom lens 144-109101-XX The following table lists the hazard distance for the Christie projector lens with the zoom adjusted to its most hazardous position. Product labels Learn about the labels that may be used on the product. Labels on your product may be yellow or black and white.
  • Page 10 Explosive material hazard. To avoid personal injury, disconnect all power sources before performing maintenance or service, and wear Christie-approved protective clothing. Bright light hazard. To avoid personal injury, never look directly at the light source.

  • Page 11: Projector Overview

    Contact your dealer Record the information about your projector and keep this information with your records to assist with the servicing of your projector. If you encounter a problem with your Christie projector, contact your dealer. Purchase record...

  • Page 12: How The Projector Works

    New LCD display to provide information at-a-glance How the projector works The Boxer 30 accepts a variety of input signals for projection on front or rear projection screens, typical in commercial or other large screen applications. High-brightness light is generated by mercury vapor lamps, then modulated by three Digital Micromirror Device (DMD) panels responding to incoming data streams of digitized red, green and blue color information.

  • Page 13: Related Documentation

    Boxer 4K Service Guide (P/N: 020-101699-XX) • Boxer 30 Serial Commands Guide (P/N: 020-102096-XX) • Boxer 30 Status System Guide (P/N: 020-102233-XX) Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 14: Installation And Setup

    A 30A rated wall breaker is required at the installation when using Input 1. A 15A rated wall breaker is required at the installation when using Input 2. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 15: Projector Components

    Projection lens A variety of lenses can be used with the projector. Available lenses are listed in accessories. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 16: Ir Remote Keypad

    One of the two IR sensors on the projector detect the signal and relay the commands for internal processing. The remote also offers a connector for wired connections to the projector. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 17 Turns off the light source and puts the projector in standby. Selects an active or inactive input on any slot. Not supported. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 18 Shows or hides the on-screen display menus. Turns the remote backlight on. Male 3-pin XLR connector for wired option. Lock/unlock the keypad. Battery door. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 19: Display Panel Components

    Projector Information Provides information about the projector such as the projector name, serial number, software version, and projector ID. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 20: Positioning The Projector

    Installing the projector lens Only use lenses designed for Boxer 30 projectors. Installing a lens not designed for Boxer 30, results in a warning that the lens is not present. 1. Remove the lens caps from the lens.

  • Page 21: Calibrating The Lens Motor

    After the projector is moved and/or jostled. • After any manual adjustment is made to the zoom or focus. To calibrate the lens: Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 22: Removing The Projection Lens

    Packaging tape is required to ensure safe shipment of the projection lens to restrain the zoom ring from rotating during shipping. Connecting to AC power The Boxer 30 projectors can operate in full or limited power modes, depending on the available or required AC power source. Power mode...

  • Page 23: Turning The Projector On

    Projector is moving to one of the two standby states: • Light source is off and video electronics are booting up. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 24: Projector Led Shutter Indicators

    The shutter is open. Lamp states Learn the LED states of the lamp. State Description Lamp is off. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 25: Turning The Projector Off

    1. Project an image with the primary lens. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 26: Resetting The Lens To Home Position

    4. From the Test Pattern menu, select the Boresight test pattern. The Boresight test pattern assists with adjusting the boresight for the three focus points. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 27 Repeat for the other two stabilization screws. Continue to adjust the locking screws until they are tight. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 28: Adjusting The Fold Mirror

    5. To make vertical adjustments, use the purple knob labeled Vertical. 6. Lock the fold mirror screw to lock the adjustment knobs. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 29: Optimizing The Integrator Zoom And Focus

    Always focus the center of the image first and then make sure no blurry edges exist. 6. When complete, lock the Zoom and Focus paddles. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 30: Adjusting Dmd Convergence

    4. Use the Convergence test pattern to assist with adjusting the horizontal and vertical lines. Vertical convergence and rotation is done by adjusting two knobs. Christie recommends rotating a single knob a maximum of a quarter rotation before adjusting the second knob a quarter rotation.

  • Page 31: Aligning The Image With Lens Zoom And Focus

    The system optimizes the active signal and displays a progress message on screen. Configuring Boxer 30 to work with Christie Link Configure Boxer 30 to work with Christie Link, which provides a fully integrated fiber solution for long range video transport.

  • Page 32: Selecting A Test Pattern

    On the Input selection page, select the appropriate input marked Christie Link. More than one input source may be listed as Christie Link, depending on how many signals are being sent from Christie Link. For example, 0-1, 0-2, and so on, where 0 is the slot number.

  • Page 33: Connecting Devices And Establishing Communication

    Can be used for upgrades, backups, restores,a nd interrogators. USB 3 For manufacturing use only. Wired Keypad Physically connects a remote control to the projector. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 34: Connecting A Video Source Using Hbmic

    Connecting devices and establishing communication Port Description 3D Sync In/3D Sync Out Supported for 3D-enabled projectors. Ethernet Connects to the web user interface and can send Christie serial commands. RS232 Sends Christie serial commands using a standard RS232 serial cable. GPIO Provides a method for controling the projector using electrical signals.

  • Page 35: Connecting A Video Source Using 3G Input Card

    DVI input supplies the entire video raster. This card may or may not be included with your model. Standard inputs are subject to change. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 36: Connecting A Video Source Using Hdbaset

    The Terra SDVoE (TSIC) input card accepts digital video data from a Christie Terra Transmitter. Enables a connection from an SDVOE source (such as the Christie Terra Transmitter) and routes it to the backplane interface. Refer to the signal chart for more information about what resolution, frame rates, and formats are supported based on the projector the card is installed in.

  • Page 37: Configuring The Rs232 Port

    Ethernet is setup to obtain an IP address automatically if a DHCP server is on the network. To modify IP settings, or manually enter an address. Christie recommends using the Ethernet port on the IMXB as the HDBaseT port is limited to 100 Mb/s. You cannot change the IP settings using the web interface.

  • Page 38: Boxer 30 Specifications

    Control signal compatibility Ethernet port Interface 10Base-T/100Base-TX Connector Female RJ-45 3D sync Connector BNC Male Interface TTL inputs and outputs Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 39: Shipped Input Cards

    Learn about the input cards that may be used with the projector. Input card Part number Additional information Dual 3G SD/HD-SDI 108-313101-02+ Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 40: Temperature Sensor Thresholds

    Option card 1 Option card 2 Option card 3 Option card 4 Housekeeping board Lamp driver A1 — Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 41: Warning Thresholds For Fans

    Radiator fan A Radiator fan B Radiator fan C Radiator fan D HIP blower A HIP blower B Intake A Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 42: Warning Threshold For Liquid Cooling Module

    IEC 309, 32 A/250 VAC Input 2 IEC 320 - C14, 15 A/125 VAC, 10 A/250 VAC Inrush current 40 A maximum Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 43: Physical Specifications

    1.63-2.17:1 HB zoom 144-105107-XX 1.95-3.26:1 HB zoom 144-131106-XX 1.99-2.71:1 HB zoom 144-106108-XX 2.71-3.89:1 HB zoom 144-107109-XX 3.89-5.43:1 HB zoom 144-108100-XX Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 44: Regulatory

    Near field communication reader Warning! If not avoided, the following could result in death or serious injury. • Changes or modifications not expressly approved by Christie Digital Systems USA Inc. could void the user's authority to operate the equipment. •...

  • Page 45: Electro-Magnetic Compatibility

    Regulation (EC) No. 1907/2006 on the registration, evaluation, authorization and restriction of chemicals (REACH) and the applicable official amendment(s). Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 46: Environment

    10 to 80% Altitude 3000 meters (10,000 feet) maximum Non-operating environment Temperature -40 to 70°C (-40 to 158°F) Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 47: Signal Connectivity Specifications

    The list of formats listed below are not exhaustive and other formats may be supported. For more information, contact Christie Technical Support. For a list of supported Christie Link video formats, see the Christie Link User Manual (P/N: 020-102234-XX). HBMIC video formats Identify the video formats for the HBMIC card.

  • Page 48: Tsic Video Formats

    TDPIC video formats Identify the video formats for the TDPIC card. The DisplayPort 1.1a interface supports HDCP 1.x. Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 49: Ddic Video Formats

    1080 24, 25, 30, 50, 60 RGB/4:4:4/4:2:2 8/10/12bpc 2048x1080 2048 1080 24, 25, 30, 50, 60 RGB/4:4:4/4:2:2 8/10/12bpc Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...

  • Page 50: 3Gic Video Formats

    2048 1080 24, 25, 30 RGB/4:4:4 10/12bpc Level-A recommended 2048x1080 2048 1080 50, 60 4:2:2 10bpc Level-A recommended Boxer 30 (Bb.2) Installation and Setup Guide 020-102017-08 Rev. 1 (02-2019) Copyright 2019 Christie Digital Systems USA, Inc. All rights reserved. ©...
  • Page 51 Corporate offi ces Worldwide offi ces Christie Digital Systems USA, Inc. Australia Germany Republic of South Africa United Kingdom Cypress ph: +61 (0) 7 3624 4888 ph: +49 2161 664540 ph: +27 (0)11 510 0094 ph: +44 (0) 118 977 8000...
