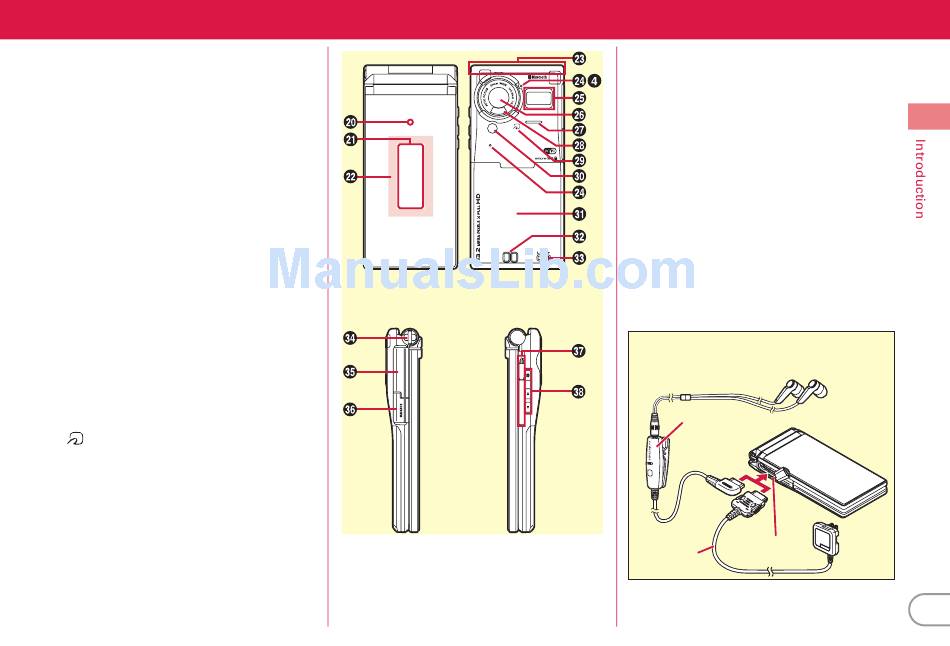

t Charging light
u Sub-display
v Indicator light
Turn on/blink to notify various status such
as incoming call or mail, etc.
w FOMA antenna (built-in)
* For a call in better conditions, do not cover the
antenna with your hand.
x Back side microphone
Microphone for Movie shooting or Voice
recorder
* Do not cover it during operation.
y Fingerprint sensor
Register fingerprint and authenticate
z Camera
Shoot still image/moving picture, or send
an image via videophone
A Speaker
Hear ring alert or voice of the caller with the
handsfree function ON
B Infrared data port
Infrared communication, infrared remote
control function
C
Mark
Use Osaifu-Keitai, or send/receive data via
iC transmission
D Light/Shooting light
Camera light
E Back cover
* To access UIM slot and the microSD card slot,
remove the back cover and the battery pack.
F Charging jack
G Back cover lever
* Firmly install the back cover and lock it with
the lever before using to avoid water seepage or
dust penetration.
H Strap opening
I External connection jack
Connect optional AC adapter, DC adapter,
FOMA USB Cable with Charge Function 02,
Stereo Earphone Set 01 etc.
J HDMI connection jack (type D)
K 1Seg antenna
* Pull out for better signal reception when
watching 1Seg.
L Z Side camera key
Activate Movie camera or record video
during 1Seg watching
SDSide up/down keys
Adjust volume
S for activate Record message/Voice
memo, D for checking new mail/messages,
etc.
Connection example of Stereo Earphone Set 01
(Optional) for external connection jack
* For connection of AC adapter, a common jack is used.
Stereo Earphone Set 01
External
AC adapter
connection jack
