To ensure waterproofness/dustproofness
To avoid water/dust ingress, be sure to observe the following points.
・ Do not throw any liquid other than room-temperature tap water on
FOMA terminal, or soak it in such liquid.
Open/close the external connection jack cap and HDMI connection
・
jack cap as described below.

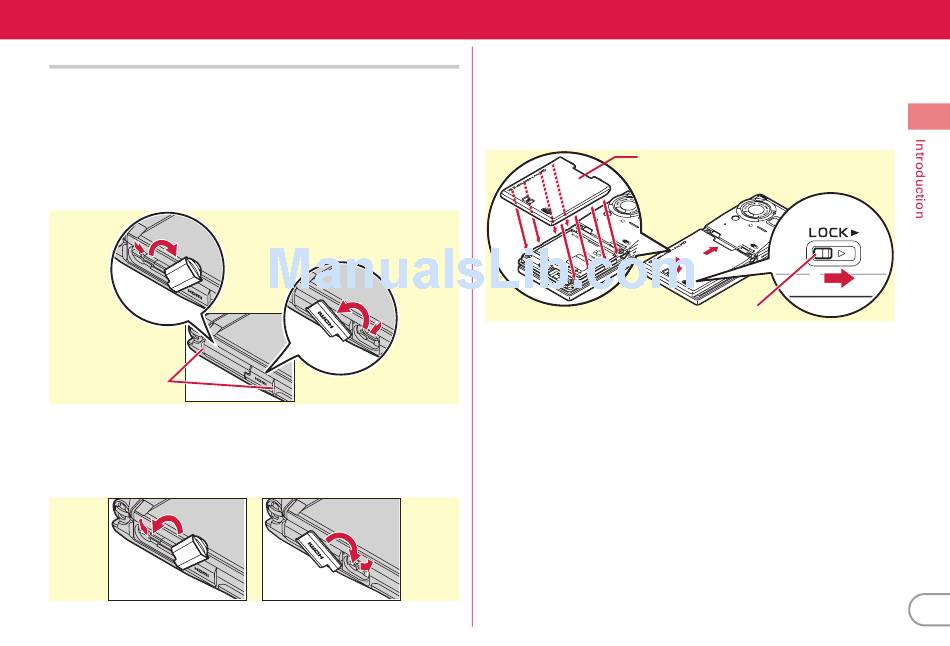

<Opening the external connection jack cap/HDMI connection jack cap>
Pull the cap up with your finger by the groove and rotate as the arrow
mark shows.
Grooves
<Closing the external connection jack cap/HDMI connection jack cap>
Rotate and close the external connection jack cap/HDMI connection
jack cap as the arrow mark shows not giving any gap with FOMA
terminal by firmly pressing. Make sure that the cap is completely
closed without slack.
・ Install the back cover as described below.
<Installing the back cover>
Align 8 tabs of the back cover with concaves of FOMA terminal.
While pressing the back cover in the direction of a so that there is
no gap between FOMA terminal and back cover, slide the back cover
in the direction of b to install, then slide the back cover lever in the
direction of c to lock.
Back cover
* Make sure that the back cover is completely closed without slack. Slide the
back cover in the direction of the arrow shown on the lever, and then make
sure the cover is securely locked before using.
・ Securely lock the back cover and firmly close the external connection
jack cap/HDMI connection jack cap. Even a fine obstacle (one hair,
one grain of sand, tiny fiber, etc.) put between contact surfaces may
allow water to enter.
・ Do not poke the microphone, earpiece or speaker with a swab or
sharp object.
・ Do not let FOMA terminal fall. It may become scratched causing the
waterproof/dustproof performance to degrade.
The external connection jack cap, HDMI connection jack cap and the
・
rubber packing of the rear side of the back cover play an important
role for keeping waterproof performance. Do not deform the back
cover by twisting etc. or peel off or damage the rubber packing. Also,
prevent dust from adhering to it.
b
a
c
Lever
