3.2 Dual Chart display

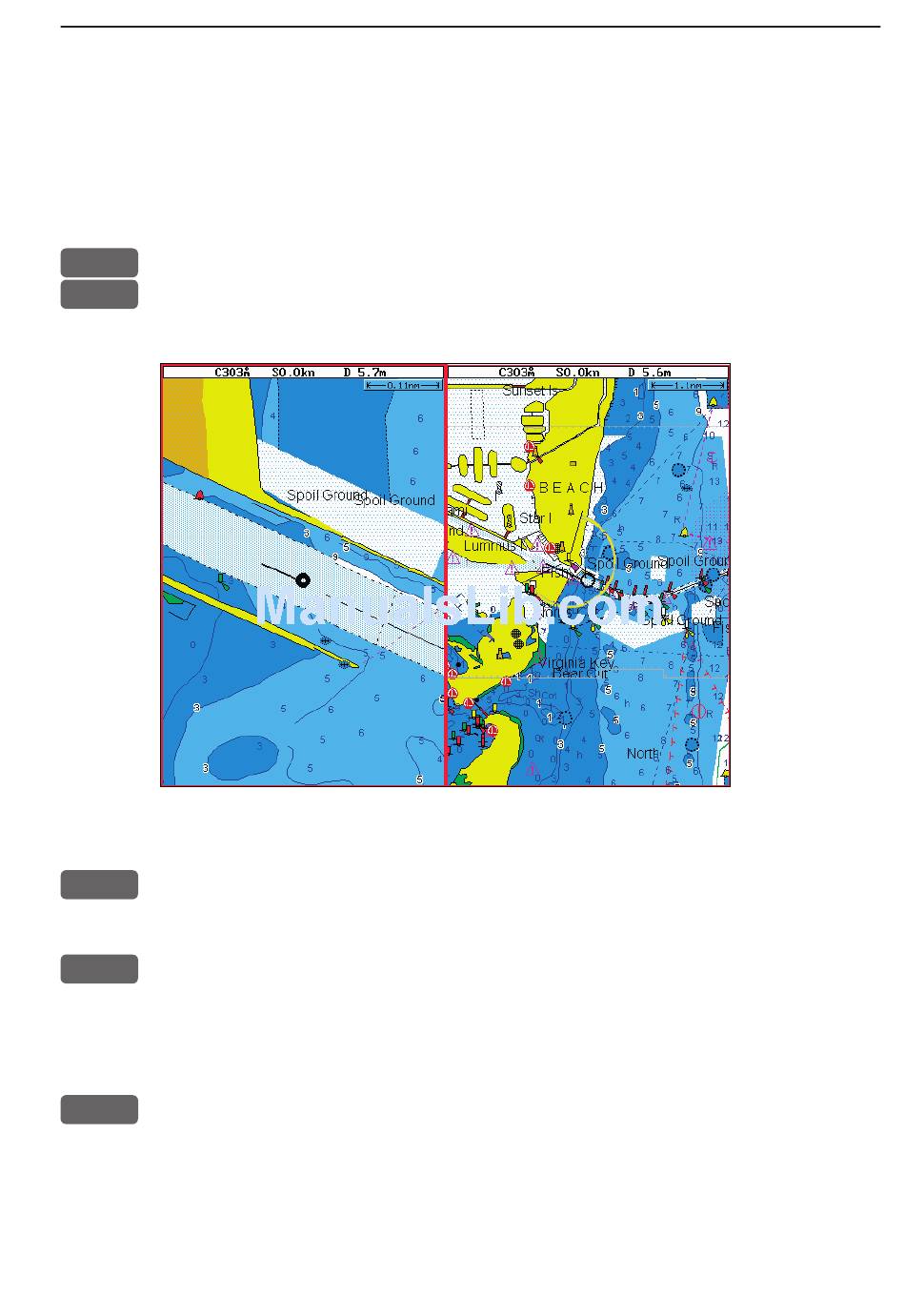

It is possible to have two charts in different scales on the screen at
the same time, one for detail and one for overview. Each chart can be
operated individually, and each will have its own cursor and indi-
vidual chart setup.
MENU
Call up the menu bar, and...
press [1] and [2] to call up the Dual Chart display
1,2
Press the [WIN] key to select active display (red frame).
WIN
Press the [ENT] key to call up the chart's Quick menu with access to
ENT
e.g. Chart info, Lock cursors to the same position in both charts on
the screen, etc. - refer to section 3.4.2 for more details.
Press the [ADJ] key to call up the chart setup for the active chart
ADJ
- refer to section 3.5 for more details.
Chapter 3-5
