2.1 Fundamentals of the display and page system
The CE34/44/54 ChartSounder has a multi-function screen and
data presentation system with full screen and different types of split
screens. The series of pages under the function keys (situated in a
vertical row to the right of the display) will in most situations be suf-
ficient information for the operator.
In split screens consisting of up to four displays, the active display
is indicated by a solid red frame. Use the [WIN] key to clockwise
toggle between which display on the screen is active. Only active
displays are operable.

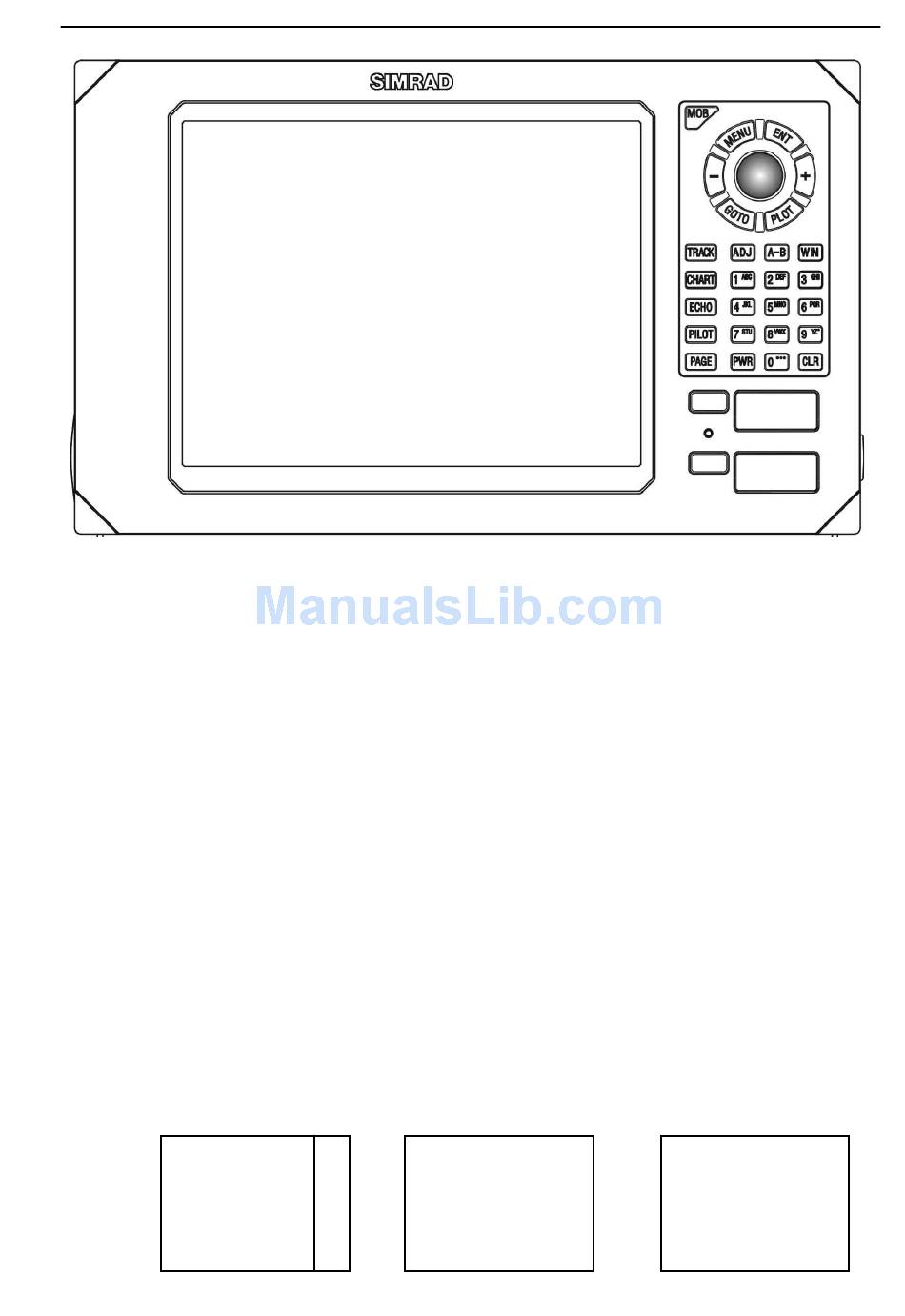

The [PAGE] key differs from the other function keys. There are
three pages under the [PAGE] key which can be set up to the pres-
entation you prefer by exchanging an existing display in the PAGE
system with a new one selected from a function key or via the menu
- see next page. Single press on the [PAGE] key will toggle between
the active pages under the function keys e.g.:
Chart with
data field
SIMRAD CE44
Echo display
with A-scope
Chapter 2-1
Highway display
