CE34/44/54 Miscellaneous menu

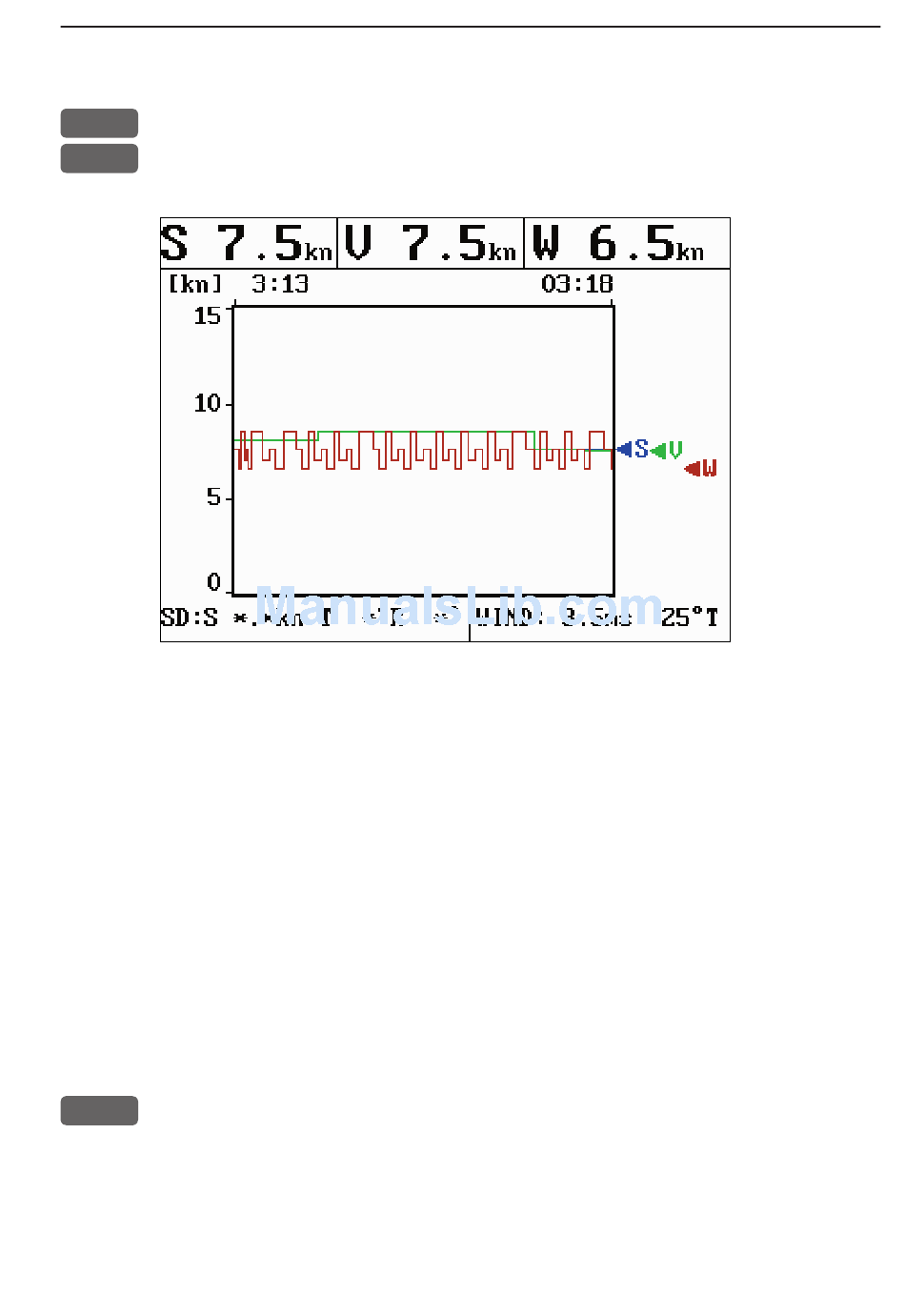

6.2 Speed diagram
MENU
Call up the menu bar, and...
load "Speed diagram"
4,2
S= Speed over ground.
V= Velocity towards waypoint.
W*= Speed through water.
SD (Set and drift)*= Speed and direction, true or relative.
WIND*= Speed and direction.
* Connection to external sensors is required.
Call "Speed diagram setup"
ADJ
- see next page.
Chapter 6-3
