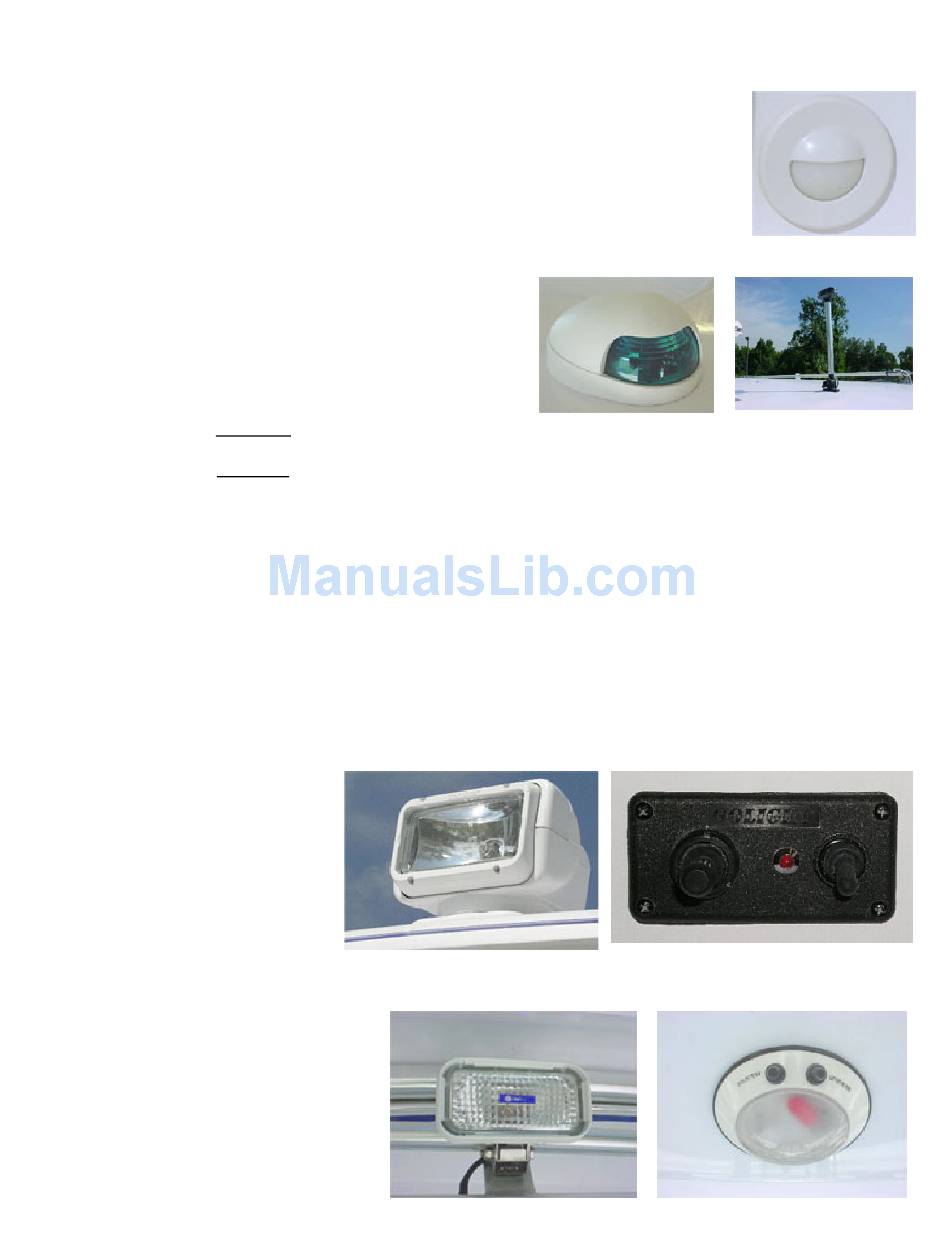

Cockpit Lights (Optional)
The cockpit lights are small circular lights located at the base of the console near the
helm seat. Locate the 2-way cockpit light switch on the switch panel and press the
switch in the forward position to turn on the cockpit lights. Press the cockpit light switch
in the back or aft position to turn the lights off.
Navigation and Anchor Lights
The navigation and anchor lights are required to be used for
operation at night or under low visibility conditions to indicate
your position to other boaters. Visually verify the operation of
your navigation and anchor lights and verify that the lights are
free from obstructions.
lights monthly during optimum visibility conditions.
•
When you are underway in low visibility conditions, you should have the Nav. Lights switch in the
up or forward position. This will activate the navigation lights, as well as your anchor light.
•
When you are anchored or in low visibility conditions, you should turn on the anchor light. Press
the Nav. Lights switch to the down or aft position to turn on the anchor light.
The navigation lights consist of a pair of lights that are mounted at the bow of the boat. The red light is installed
on the port side and the green light is installed on the starboard side.
The U.S. Coast Guard requires that the anchor light be installed at the highest point on the boat and must be
secured in the up position when you are underway. Therefore, this light will be installed on the fiberglass top that
encloses the pilothouse.
Remote Spot Light (Optional)
The remote spot light is mounted to the forward area of the hard top. To operate the remote spot light, locate the
remote spot light panel that is installed on the console.
The switch on the right side of the
panel allows you to turn the light on
and off. The red LED light located in
the center of the panel will be lit
when the spot light is turned on.
Once the spot light is turned on, the
all around toggle lever (on the left
side of the panel) can be moved in
an up, down, left or right position to
rotate the light assembly in the
desired direction.
Spreader Light and Courtesy Light (Optional)
The spreader light is mounted between the
rod holders that are installed on the aft side
of the fiberglass top. The dome shaped
courtesy light is mounted to the bottom of
the fiberglass top that enclosed the
pilothouse.
Two push in switches for the spreader light
and courtesy light are located on the base
of the dome shaped courtesy light.
You should check your navigation
Remote Spot Light
Navigation lights
Spreader Light
Anchor light
Remote Spot Light Control Panel
Courtesy/Dome Light
