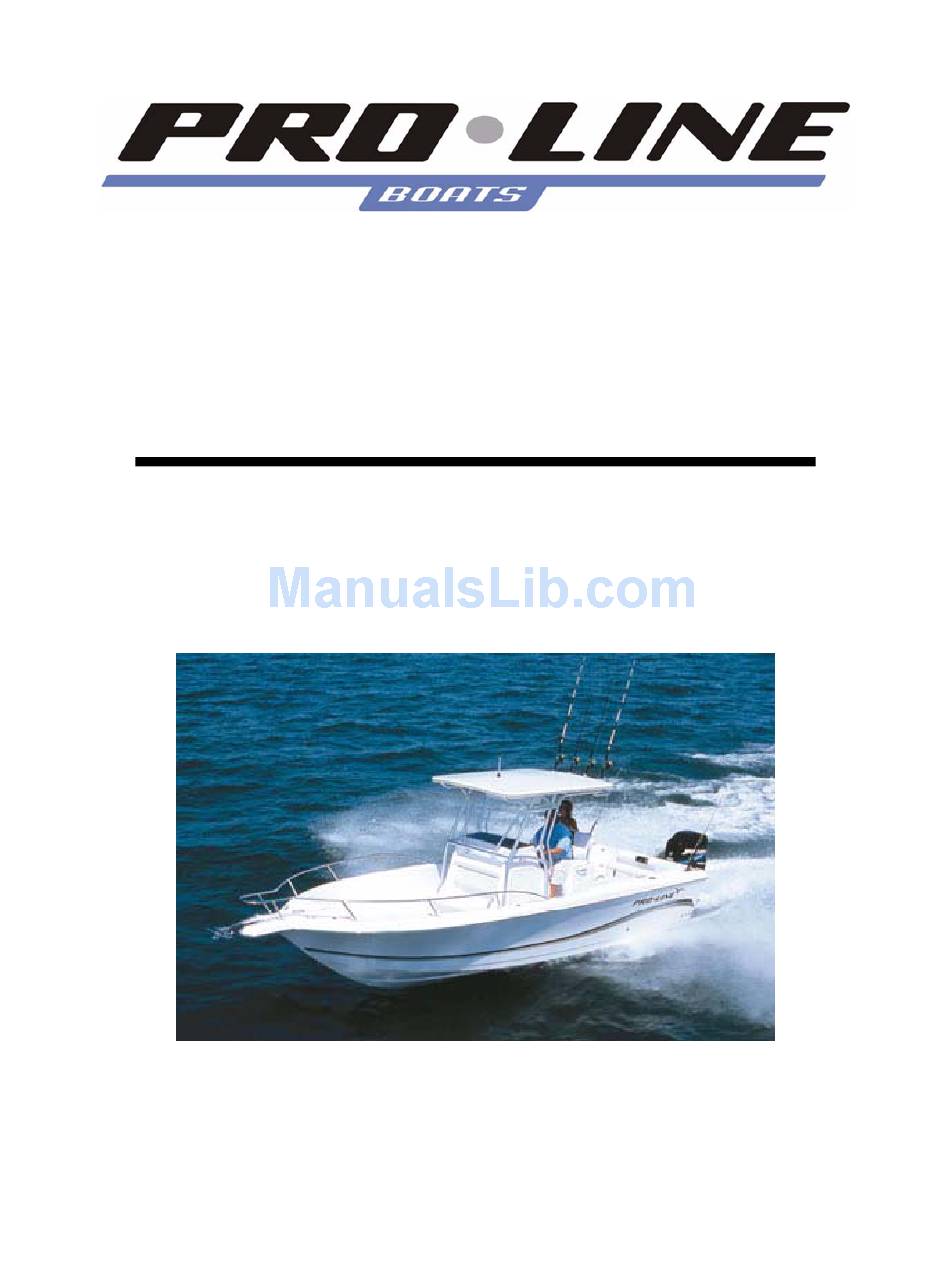

- Page 1 2006 Owner’s Manual 25 Sport Specifications subject to change without notice. Actual boats may vary from drawings and/or photos. Copyright 2005 Pro-Line Boats Inc., PO Box 1348, Crystal River, FL 34423 All rights reserved. December 23, 2005...
-
Page 3: Table Of Contents
Table of Contents Page Introduction Specifications ............Dealer Responsibilities . - Page 4 Page Lighting Systems ........... . . Cabin / Head Light .
- Page 5 Page Dive Platform With Full Ladder ........Cockpit / Deck Drains .
- Page 6 Page Vinyl ............. . Exterior Vinyl –...
-
Page 7: Introduction
Introduction Congratulations on the purchase of your new Pro-Line Boats 25 Sport sport fishing boat. Welcome into the proud family of satisfied Pro-Line owners. Every expedition lets you enjoy the outstanding features designed into every boat we construct. Your new Pro-Line is more than just a boat, it's a whole new lifestyle. -
Page 8: Customer Responsibilities
• Read and understand the limited warranty. Sign the warranty registration card and mail it to Pro-Line Boats. • Contact your local Pro-Line dealer for assistance with any warrantable repairs. -
Page 9: Capacity Information
The Pro-Line Boats Limited Warranty is attached to the warranty card. After signing the warranty card, your dealer will provide you with your copy of the warranty and mail the warranty card to Pro-Line Boats, Inc. A copy of the Pro-Line Boats Limited Warranty is also included in this chapter. - Page 10 The Ten Year Limited Hull Structural Warranty is transferable to subsequent owners for a nominal fee. Please contact your dealer or Pro-Line Boats to obtain the applicable transfer form so that the new owner will have piece of mind knowing that their pre-owned boat comes with the same structural hull warranty...
-
Page 12: Safety
Safety Your Pro-Line boat has been constructed with safety in mind. But, remember, boating safety and the safety of your passengers is YOUR ultimate responsibility. You should fully understand the operations of your vessel as well as the basics in boating safety. Your local U.S. -
Page 13: Where Co May Accumulate
• Contact medical help. If the victim is not breathing, perform rescue breathing or approved cardiopulmonary resuscitation (CPR), as appropriate, until medical help arrives. Prompt action can mean the difference between life and death. • Shut off potential sources of CO, if possible. Correct ventilation problems and/or repair exhaust problems as appropriate. -
Page 14: Fire
• Know where and how CO may accumulate in and around your boat. • Maintain fresh air circulation throughout the boat at all times. Run exhaust blowers whenever the generator is operating. • Know where your engine and generator exhaust outlets are located and keep everyone away from these areas. -
Page 15: Flooding
• • First aid kit and blankets Anchor and sea anchor with sufficient line • • Mooring lines and fenders Bailing device • • Combination oar/boat hook Tool kit and lubricant • • Spare prop and hardware Spare fasteners, hose clamps and plugs •... -
Page 16: Regulations
Regulations The USCG is the authority of all waterways. Local authorities enforce State Boating Regulations. You are subject to marine traffic laws and "Rules of the Road" for both federal and state waterways. Therefore, you must submit to boarding if requested by the proper authority. There are many publications available from the Coast Guard concerning regulations. -
Page 17: Controls
Controls Controls and engine systems vary greatly from one engine manufacturer to another. Please read your engine owner’s manual carefully. Note: If your engine package was not factory installed, some components that are normally standard installations may not be included. Throttle &... -
Page 18: Shift / Throttle / Trim
Shift / Throttle / Trim Your Pro-Line can be ordered with different shift/throttle systems based upon motor type. Refer to the owner's packet to find the manual pertaining to your particular installation. Each motor has an individual tilt/trim switch located on the port throttle lever. Separate shift and throttle controls are available for each outboard motor. -
Page 19: Steering
Steering Your Pro-Line is equipped with a self-contained hydraulic steering system when your engine package is factory installed. When the steering wheel is turned, the helm pump pumps fluid to the steering cylinder causing it to extend or retract. Periodically, check the fluid level and fill as necessary. Beware of adding too much fluid, especially if the ambient temperature is cold because subsequent expansion could cause leaking or damage to your system. -
Page 20: Windlass (Optional)
and check to see if the opposite trim tab goes down. For example if the starboard trim tab switch is being pressed down, the port trim tab should be going down. Repeat the same process for the opposite side. While underway and in open water, clear of other boaters, depress the top half of the switches in half- second increments to achieve the desired degree of trim. - Page 21 To operate the windlass, press the windlass toggle switch to the down position to release the anchor and line. After dropping the anchor, be sure to tie the line off at one of the cleats. If you do not tie off at a cleat, the constant pull against the line could cause the windlass motor to fail.
-
Page 22: Systems And Accessories
Systems and Accessories Electrical System 12 Volt Receptacle The 12-volt receptacle is installed on the console. It is easily accessible and can be used to charge your cell phone, operate a hand held remote spotlight, etc. Battery Switch for Dual Batteries (Optional) The optional battery switch on the 25 Sport is installed behind the hatch located just below the transom door. -
Page 23: Switch And Breaker Panel
Circuit Breakers – On the switch panel below the individual switches If the breaker continues to trip and you are certain the device, switch and wiring are in good repair; either the breaker is faulty or it is too small for the load. Reduce the load or replace the breaker. Switch and Breaker Panel The switch and breaker panel is located on the console and is equipped with 13 switches. - Page 24 Navigation & Anchor/All Around Lights - Locate the Nav. Lts. switch on the instrument panel. This is a 3-way switch (forward, middle, back/aft) that functions as follows when you press the switch: • Forward position - Turns on the bow lights and the anchor light. This position will also activate the red light in your compass.
-
Page 25: Lighting Systems
Washdown Pump – To activate the washdown pump, which is located on top of the starboard aft stringer, depress the switch to the up or forward position. The washdown pump draws its water from the same seacock that the baitwell pump draws its water. To turn the pump off, depress the switch in the down position. -
Page 26: Remote Spot Light (Optional)
The navigation lights consist of a pair of lights that are mounted at the bow of the boat. The red light is installed on the port side and the green light is installed on the starboard side. The U.S. Coast Guard requires that the anchor light be installed at the highest point on the boat and must be secured in the up position when you are underway. -
Page 27: Instrumentation
Spreader Lights Courtesy/Dome Light Instrumentation Compass The Compass on the 25 Sport is located on the dash on top of the console. To ensure that the compass light is working properly, press the Nav. Lts. switch in the forward position to turn on the red LED light inside the compass. -
Page 28: Fresh Water System
range. When you are running at wide-open throttle, the tach should read near the top end of the recommended RPM range. If the RPM readings are working correctly and the engine throttle settings are correct, the tachometer is operating properly. If the tachometer is not reading correctly, refer to the manual provided by the manufacturer of the gauge that was included in your owner’s package. -
Page 29: Fresh Water Tank And Fill
Fresh Water Tank and Fill The 15-gallon capacity fresh water tank is installed beneath the shelf in the head area. The tank can be filled via the stainless steel fresh water tank fill located amidships on the port gunwale. The vent for the tank is installed on the port hull, below the water fill fitting. -
Page 30: Console W/Enclosed Head (Porta-Potti)
discharge" by boats operated in enclosed lakes and reservoirs or in rivers not capable of interstate navigation. States may apply to the EPA to have certain other waters declared "no discharge zones" if discharge of treated sewage would be harmful. In short, boats with installed toilets must have an operable Coast Guard approved Marine Sanitation Device (MSD) designed to either hold sewage for pump out ashore or for discharge in the ocean beyond the three mile limit, or to treat the sewage to Federal standards prior to discharge. -
Page 31: Sea Water System
insert the hose provided by the marina into the waste outlet to connect to your marina’s dockside service facilities. Follow the instructions provided by the marina to operate their equipment. Warning: Waste in the holding tank can form methane, an explosive gas. Use suitable precautions when any maintenance is done to the sanitary system. -
Page 32: Washdown Pump
Optional Leaning Post Baitwell – One of the optional helm seats includes a 35-gallon baitwell tub that is plumbed to the existing baitwell pump. Depending on how the boat is ordered by the dealer from the factory, the 15-gallon standard baitwell tub may or may not be connected to the pump. If the 15-gallon standard baitwell tub is not plumbed to the baitwell pump, the tub becomes a storage compartment, cooler, etc. -
Page 33: Fish Boxes - Casting Deck
Fish Boxes - Casting Deck Your boat is equipped with a 40-gallon capacity insulated fish box that is installed on the casting deck. This fish box is designed to gravity drain via a thru hull on the starboard side of the hull. Note: The smaller storage box installed forward of the fish box is for wet/dry storage. -
Page 34: Fuel Sender & Fuel Pick Ups
Note: Never pump fuel into any fitting, opening or access on the boat unless it is labeled “Gas” or “Fuel”. Fuel Sender & Fuel Pick Ups The fuel sender and fuel pick up are accessible via the access pie that is installed aft of the helm seat. The fuel sender is equipped with a float that moves up and down with the fuel level in the tank. -
Page 35: Fuel / Oil Leaks
If your optional engine package requires the installation of remote oil tanks, please refer to the owner’s manual provided by the engine manufacturer for operational procedures and for information related to the care and maintenance of their product. When in doubt, always defer to the engine manufacturer’s instructions and/or recommendations. -
Page 36: Seating
If you cannot locate the paperwork, you will find the controller head unit (XM box) mounted on the inside wall of the console. It is accessible via the rectangular hatch installed on the aft head wall. 8 character (alpha Based upon the availability from our vendors, this equipment numeric) changes from time to time. -
Page 37: Doors & Hatches
Doors and Hatches Head Door The poly head door is equipped with a white twist latch. To open the door, just twist the latch and pull the door open. To close the door, slide the door back into the track of the door frame and push the door closed until it snaps in place. - Page 38 Access Hatch Locations Rope Locker Fish Box (Insulated) Casting Deck Storage Box & Hose Storage in Connections Floor Fresh Water Fill Fish Box Drain & Thru Hull Fresh Water Pump Fuel Fill & Vent (Behind access pie on starboard head wall above step down) Fuel Fill &...
-
Page 39: Hardware
Hardware Cleats Your boat is equipped with 7 cleats. They are installed to provide areas to permit you to tie off the boat at dockside, tie off to another boat that is anchored, secure bumpers/fenders, and/or tie off the anchor (when dropped) to prevent the line from pulling on the windlass (optional), etc. -
Page 40: Cockpit / Deck Drains
Cockpit / Deck Drains There are two (2) cockpit/deck drains in the aft area of the cockpit that allow excess water in the cockpit to drain overboard via thru hulls on each side of the boat. To ensure that there is no blockage in any of the hoses connected to the drains, it is recommended that you occasionally run water through each of the cockpit drains and visually inspect the thru hulls to verify that... -
Page 41: Thru Hull Locations
Thru Hull Locations Port Side Fresh Water Tank Vent Transom Sink Baitwell tub in Bottom Row - Left To Right optional helm Cockpit/Deck Drain seat Bilge Hatch Drain Baitwell Tub Starboard Side Fuel Vent Bilge Pump Rope Locker Storage Cockpit/Deck Fish Box &... -
Page 42: Bimini Top
Bimini Top A Bimini top is standard with the 25 Sport. The frame is made of anodized aluminum and the Bimini canvas top is made of high quality Sunbrella canvas. Please see the Service and Care section of this manual for cleaning and care recommendations. Rigid T-Top with Storage Box (Optional) Set of 4 Rod The anodized aluminum frame comes with a rigid Trylon... -
Page 43: Operation & Performance
Operation and Performance Trim / Tilt The power trim system allows the operator to raise and lower the motors throughout an infinite number of settings between its upper and lower limits. There is a trim setting that will yield maximum speed, stability or maneuverability for every throttle setting. Refer to your engine manual for specific questions regarding the trim and tilt. -
Page 44: Propellers
Propellers If your Pro-Line was ordered with a factory installed engine, it will have a propeller that has been performance tested to provide the best all-round performance for your engine/hull combination at sea level. In some situations, it may be desirable to re-prop your Pro-Line to enhance the desired performance needs for your area. -
Page 45: Fueling
• Check for fuel, oil and water leaks. If any leaks are found, shut down the engines and make the necessary repairs before continuing on with your voyage. • Follow the break-in procedures as recommended by the engine manufacturer for your engines. -
Page 46: Trailering & Launching
Trailering and Launching Selecting A Trailer Choose the proper trailer for your boat and make sure the trailer you use is certified. Consult your state authority for state regulations pertaining to trailering a boat. More damage can be done to a boat by the stress of road travel than by normal water operation. - Page 47 • Too much weight on the rear of the trailer will cause the trailer to "fishtail" and may reduce traction or even lift the rear wheels of the tow vehicle off the ground. • The safety chains are attached crisscrossing under the coupler to the frame of the tow vehicle.
-
Page 48: Backing A Trailer
Backing A Trailer Practice backing with a trailer before you get into a confined launch site. Get accustomed to using the trailer in an open area. Take someone with you who knows how to back a trailer. Backing a trailer works the opposite of backing a car. -
Page 49: Launching
Launching • Keep the rear wheels of the tow vehicle out of the water. This will generally keep the exhaust pipes out of the water. If the exhaust pipes become immersed in the water, the engine may stall. • Set the parking brake and place tire chocks behind the rear wheels. •... -
Page 50: Service And Care
Service and Care To enjoy trouble free use of your Pro-Line, follow the recommended procedures and instructions relating to the service and care of your boat. Failure to follow proper maintenance practices will result in shorter life of your equipment and may void your warranty. Much of the installed equipment on your Pro-Line is warranted separately. -
Page 51: Graphics
This is done so that the epoxy coat will properly adhere to the hull, and when done correctly, will not void the hull warranty. Pro-Line Boats does not recommend using an etching primer in lieu of sanding the bottom. -
Page 52: Fuel Water Separators
Fuel Water Separators If fuel water separators are installed on your boat, the “spin on” filter cartridges should be renewed every season at a minimum. Fuel tanks that are not kept full accumulate water faster due to condensation. Therefore, filter cartridges may need to be replaced more often depending upon usage and conditions or if motors begin to run rough. -
Page 53: Stainless Steel
Stainless Steel Stainless steel is used for bow rails and deck fittings on your Pro-Line. Stainless steel is not completely free from corrosion attack. It is NOT stain or rust proof. When used in contact with chloride salts, sulfides or other rusting metals, stainless will discolor, rust or even corrode. The degree of surface oxidation is directly affected by local atmosphere and saltwater concentrations. -
Page 54: Tackle Box
Tackle Box Clean the tackle box trays and storage area using a soft cloth, warm water and a mild detergent. Windshield The windshield is made of Plexiglass. To clean the windshield: • Rinse with fresh water to remove as much grime as possible •... -
Page 55: Isinglass
• Rinse thoroughly. • Air dry. • Repeat if necessary. Re-treating the Fabric - Sunbrella fabrics are treated with a fluorocarbon finish to enhance water repellency. This finish is designed to last for several years, but must be replenished after a thorough cleaning. -
Page 56: Resealing
• Drain all water systems, including the head, and pump an approved antifreeze through all pumps, valves, drains and lines. • Fill fuel tank (3/4 – 7/8 full) and add a stabilizer/conditioner such as “STA-BIL” to the gasoline. • Prepare engine in accordance with the engine manufacturer’s recommendations found in your engine manual. -
Page 57: Additional Cleaning And Maintenance Products
Additional Cleaning and Maintenance Products Flitz For use on brass, copper, stainless steel, chrome, silver, gold, pewter, nickel, factory gun bluing, bonze, platinum, tin, aluminum, magnesium, anodized aluminum, painted surfaces, fiberglass, Plexiglas and plastics. Flitz is available at many marine supply stores, marinas and at Home Depot. For more information on this product, contact the manufacturer at: Flitz International Ltd., Waterford, WI 53185, 800-558-8611 Woody Wax... -
Page 58: Appendix
Appendix Helpful Check Lists Print and use these checklists, and do not operate your boat without doing the following: Each Time You Go On A Boat Trip Make sure you know where CO exhaust outlets are located on your vessel. Educate all passengers about the symptoms of CO poisoning and where CO may accumulate. -
Page 59: Boat Identification Information
Boat Identification Information Owner: Home Port: Dealer: Boat Name: Registration Number: Hull ID Number: Boat Model: LOA: Beam: Draft: Vertical Clearance: Hull: Deck: Interior: Warranty Registration Date: Fuel Capacity (Gallons): Ignition Key #: Cabin/Head Door Key #: Other Key #: Radio Call Letters: Bat.: Engine Make:... -
Page 60: Trouble Shooting Chart
Trouble Shooting Chart PROBLEM: POSSIBLE CAUSE Poor speed or fuel Wrong propeller for load or conditions. economy: Trim is in too far. Load is too far forward or too heavy. Boat has taken on water. Marine growth on hull. Line or anchor is dragging. Fuel is stale or partially blocked.
