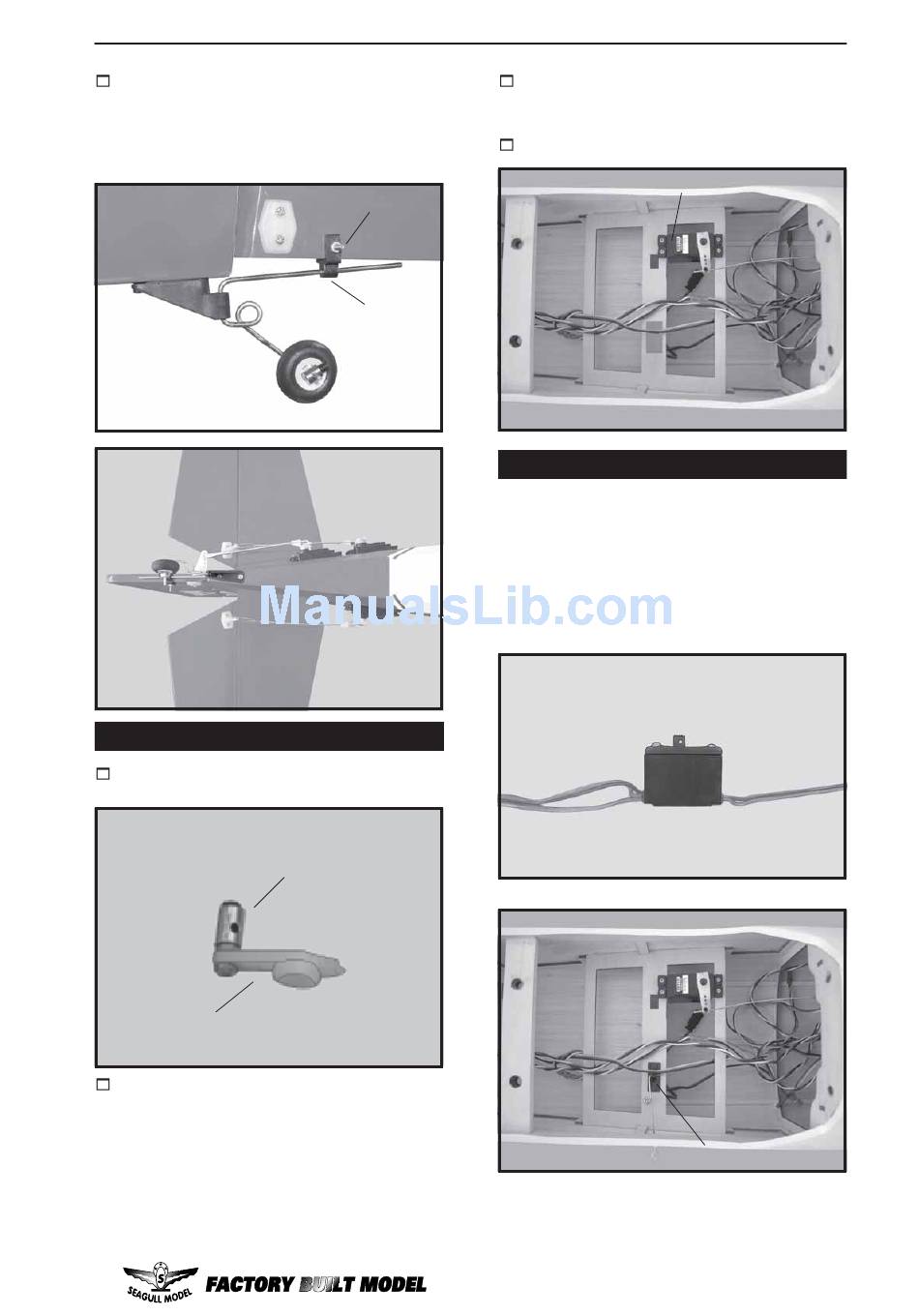

Installing The Switch; Throttle Servo Installation - Seagull Models HARMON ROCKET III Assembly Manual

HARMON ROCKET III.
5) Slide the clasp back into position and
carefully glue it into place using Kwik Bond Thin
C/A. Hold the clasp in place until the glue com-
pletely cures. Rescue the clap with bolt and
nut as picture below.

THROTTLE SERVO INSTALLATION.

) Install adjustable servo connector in
1
the servo arm.
Adjustable Servo connector.
Servo arm.
2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
2mm X 20mm.
Control clasp.
Instruction Manual.
3) Secure the servos with the screws pro-
vided with your radio system.
4) Install the pushrod throttle.
Throttle.

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
servo tray, in the fuselage, from the bottom.
Use the two screws provided with the switch
to secure it in place. Drill two 3/32" holes
through the tray for the screws to pass
through.
Switch.
21
