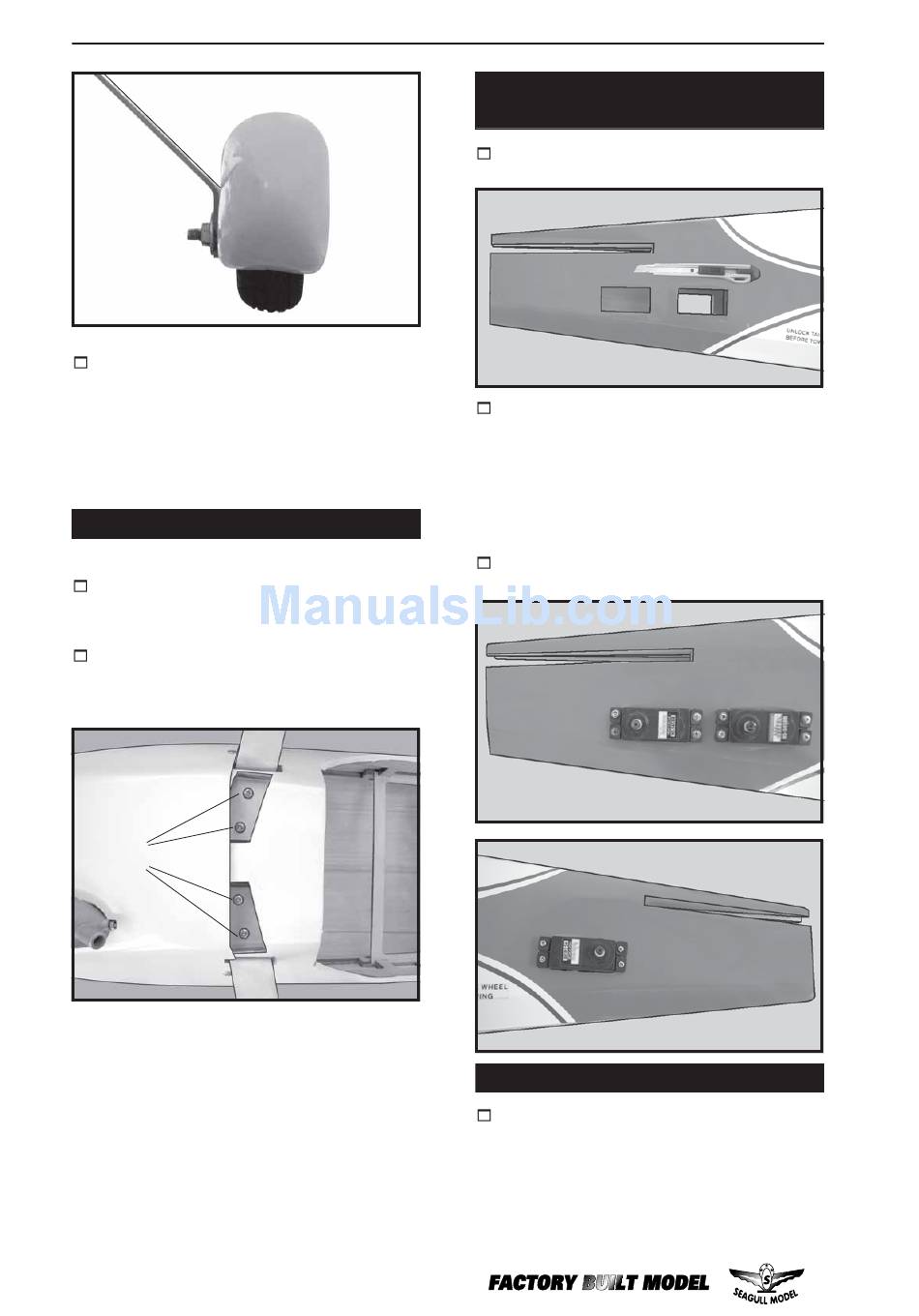

HARMON ROCKET III.
4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.

INSTALLING THE MAIN LANDING GEAR.

1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount the
main landing gear to the fuselage.
4mm X 20mm.
16
Instruction Manual.
ELEVATOR - RUDDER SERVO
INSTALLATION.
Locate and cut out the covering film
1)
from the servo holes in both sides of fuselage.
2) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
3) Secure the servos with the screws pro-
vided with your radio system.
Left side.
Rudder servo.
Elevator servo.

HORIZONTAL STABILIZER.

1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge
of the stabilizer.
Elevator servo.
Right side.
