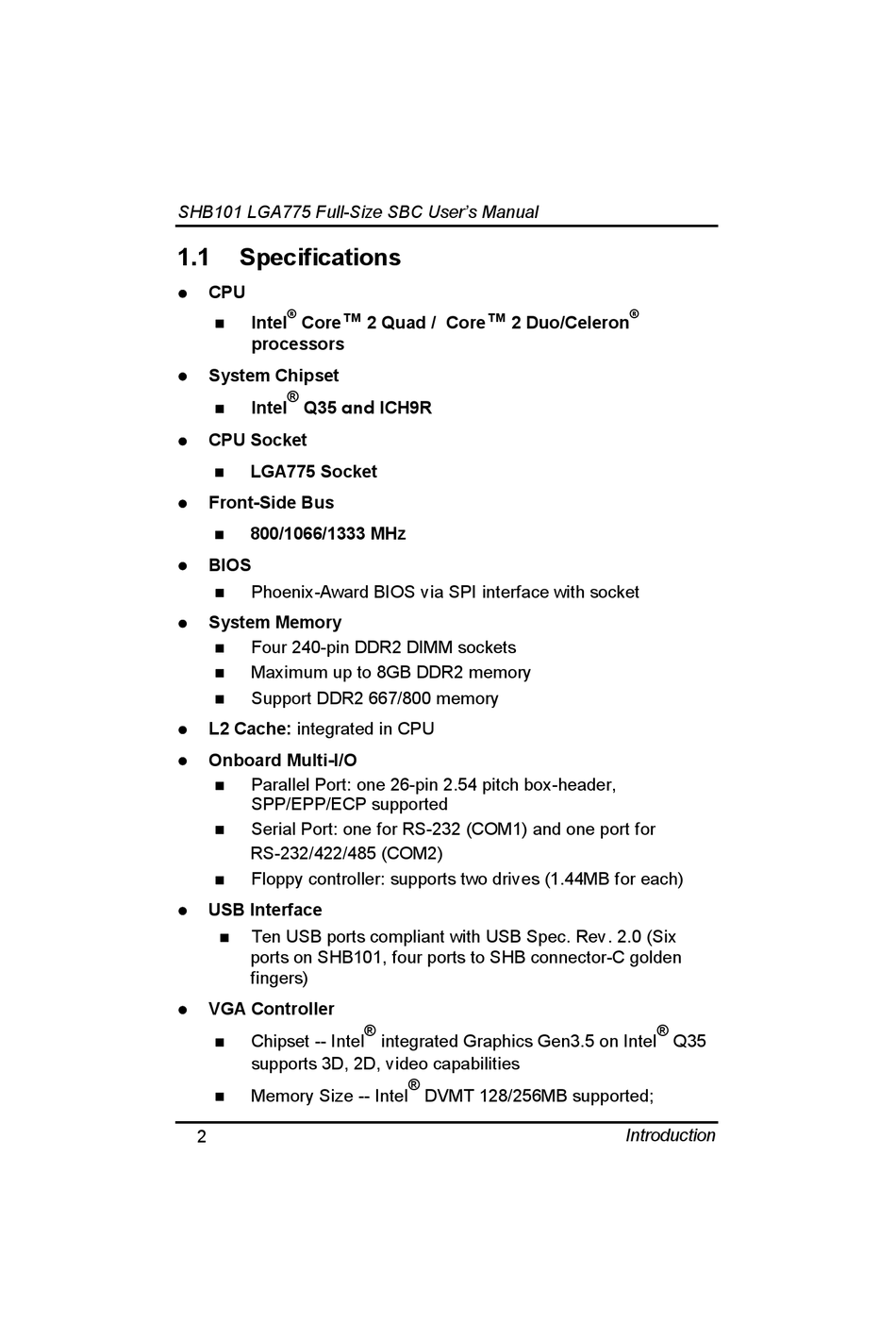

SHB101 LGA775 Full-Size SBC User's Manual
1.1

Specifications

CPU

®
™
Intel Core

processors
System Chipset

®
Intel Q35 and ICH9R

CPU Socket

LGA775 Socket

Front-Side Bus

800/1066/1333 MHz

BIOS

Phoenix-Award BIOS via SPI interface with socket

System Memory

Four 240-pin DDR2 DIMM sockets

Maximum up to 8GB DDR2 memory

Support DDR2 667/800 memory

L2 Cache: integrated in CPU

Onboard Multi-I/O

Parallel Port: one 26-pin 2.54 pitch box-header,

SPP/EPP/ECP supported
Serial Port: one for RS-232 (COM1) and one port for

RS-232/422/485 (COM2)
Floppy controller: supports two drives (1.44MB for each)

USB Interface

Ten USB ports compliant with USB Spec. Rev. 2.0 (Six

ports on SHB101, four ports to SHB connector-C golden
fingers)
VGA Controller

Chipset -- Intel

supports 3D, 2D, video capabilities
Memory Size -- Intel

2
™
2 Quad / Core 2 Duo/Celeron
®
integrated Graphics Gen3.5 on Intel
®
DVMT 128/256MB supported;
®
®
Q35
Introduction
