SHB101 LGA775 Full-Size SBC User's Manual
(3)-3

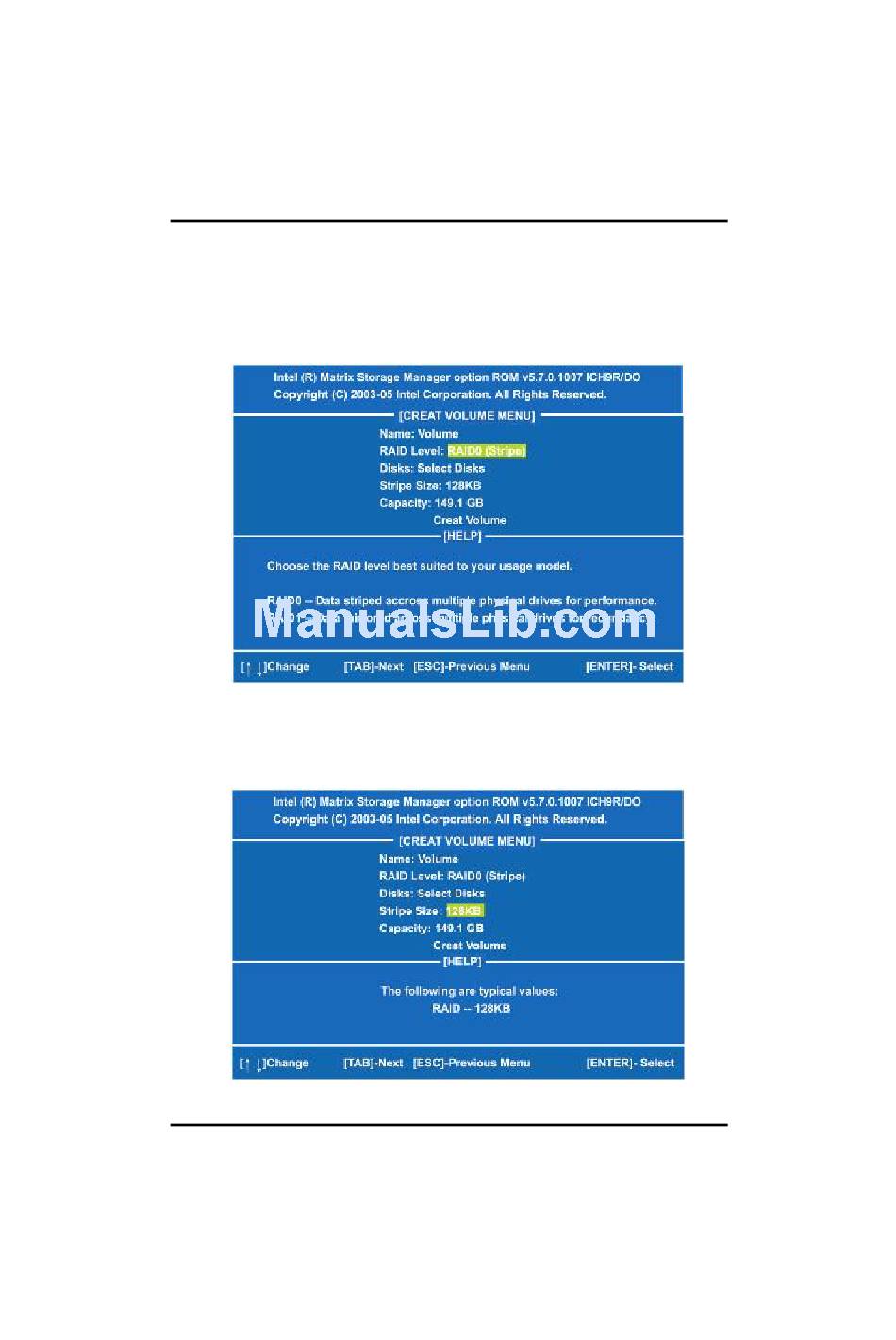

After entering the CREAT VOLUME MENU screen, you can
type the disk array name with 1~16 letters (letters cannot be
special characters) in the item "Name". When finished, press
ENTER to select a RAID level (as Figure 5). There are three
RAID levels, RAID0, RAID1 and RAID5&RAID10. Select a
RAID level and press ENTER.
(3)-4
Set the stripe block size (as Figure 6). The KB is the standard
unit of stripe block size. The stripe block size can be 4KB to
128KB. After the setting, press ENTER for the array capacity.
78
Figure 5
Figure 6
Configuring SATA for RAID Function
