SHB101 LGA775 Full-Size SBC User's Manual

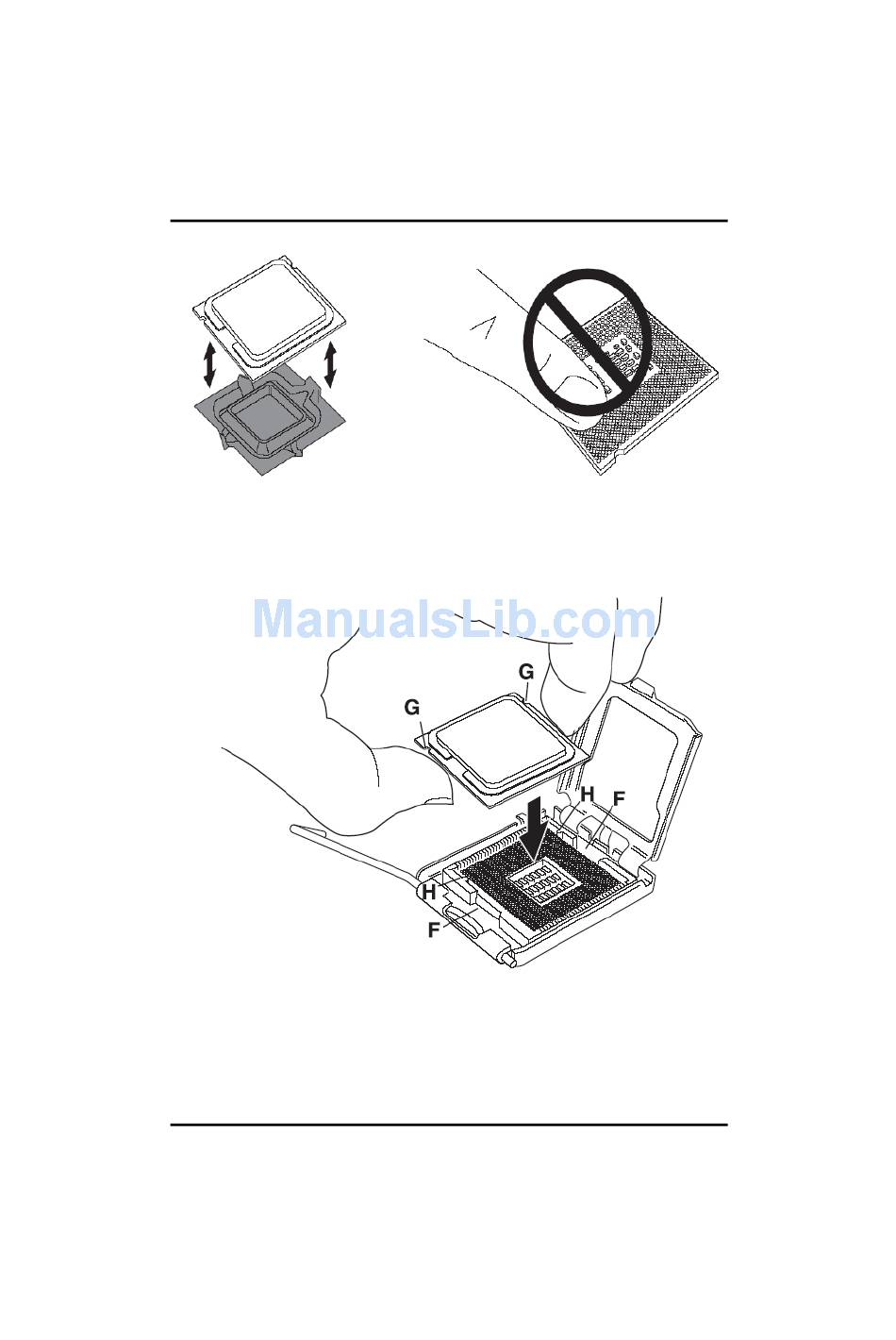

Place the CPU down into the socket. Be careful not to touch the

contact.

Hold the edges of the CPU, and orientate it as the marked direction (G)

down into the socket to match the (H) and (F) locations.

Hardware Installation
