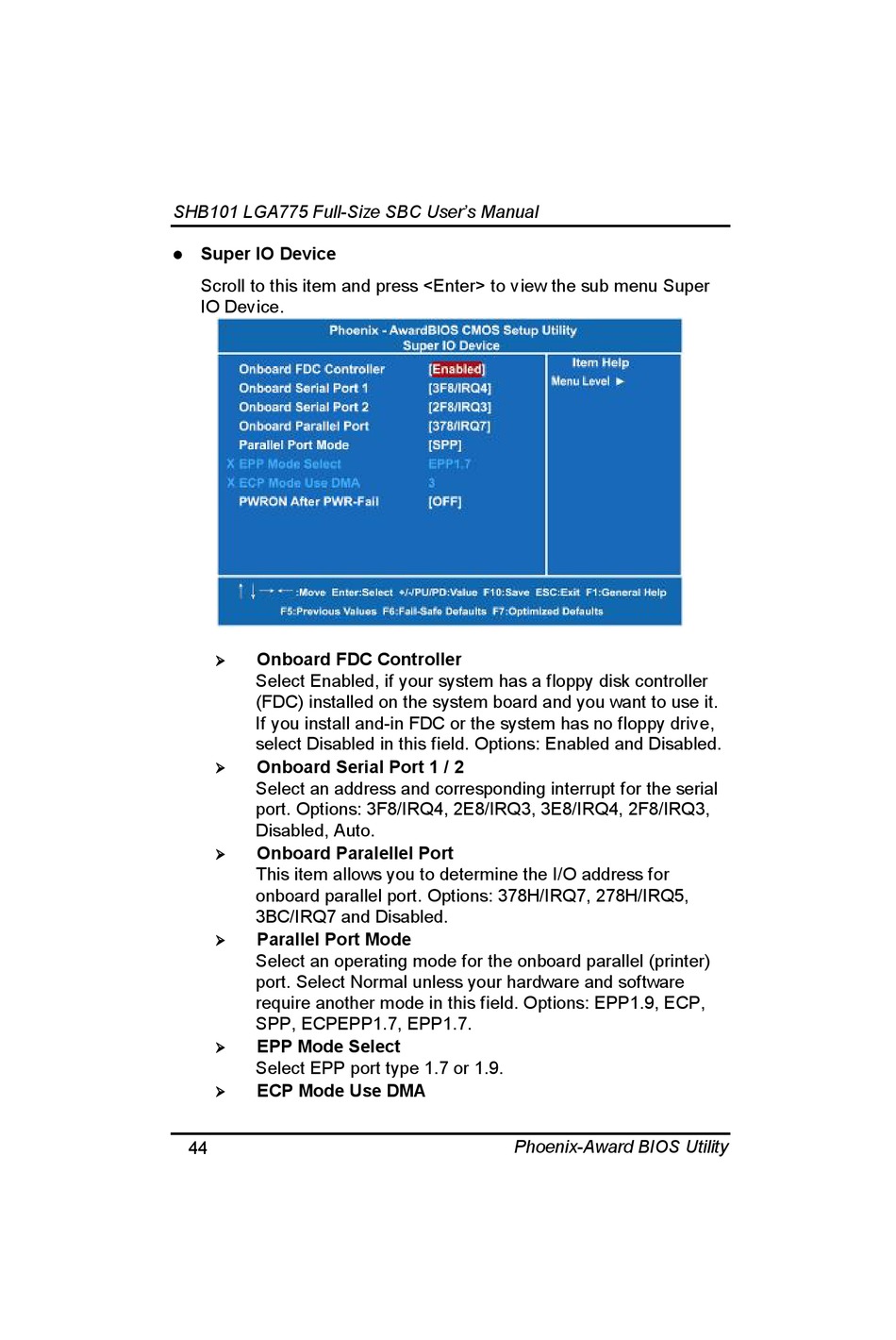

SHB101 LGA775 Full-Size SBC User's Manual
Super IO Device

Scroll to this item and press <Enter> to view the sub menu Super
IO Device.
Onboard FDC Controller

Select Enabled, if your system has a floppy disk controller
(FDC) installed on the system board and you want to use it.
If you install and-in FDC or the system has no floppy drive,
select Disabled in this field. Options: Enabled and Disabled.
Onboard Serial Port 1 / 2

Select an address and corresponding interrupt for the serial
port. Options: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3,
Disabled, Auto.
Onboard Paralellel Port

This item allows you to determine the I/O address for
onboard parallel port. Options: 378H/IRQ7, 278H/IRQ5,
3BC/IRQ7 and Disabled.
Parallel Port Mode

Select an operating mode for the onboard parallel (printer)
port. Select Normal unless your hardware and software
require another mode in this field. Options: EPP1.9, ECP,
SPP, ECPEPP1.7, EPP1.7.
EPP Mode Select

Select EPP port type 1.7 or 1.9.
ECP Mode Use DMA

44
Phoenix-Award BIOS Utility
