(3)-1

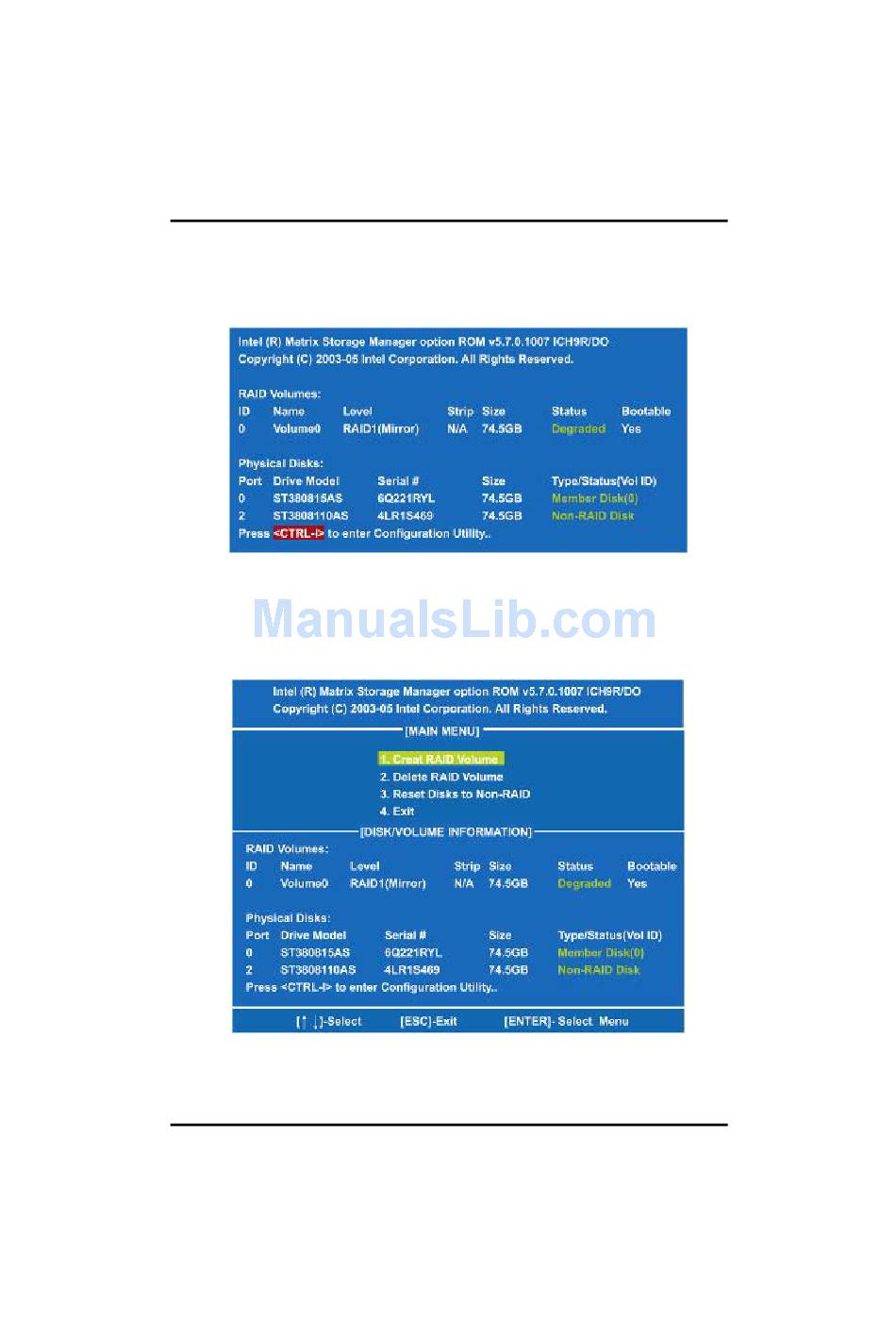

After the POST memory testing and before the operating

system booting, a message "Press <Ctrl-I> to enter

Configuration Utility" (as Figure 3) shows up, accordingly,

press <CTRL+ I> to enter the RAID BIOS setup utility.

(3)-2

After you press <CTRL+ I>, the Create RAID Volume screen

will appear (as Figure 4). If you want to create a RAID array,

select the Create RAID Volume option in the Main Menu and

press ENTER.

Configuring SATA for RAID Function

SHB101 LGA775 Full-Size SBC User's Manual

Figure 3

Figure 4
