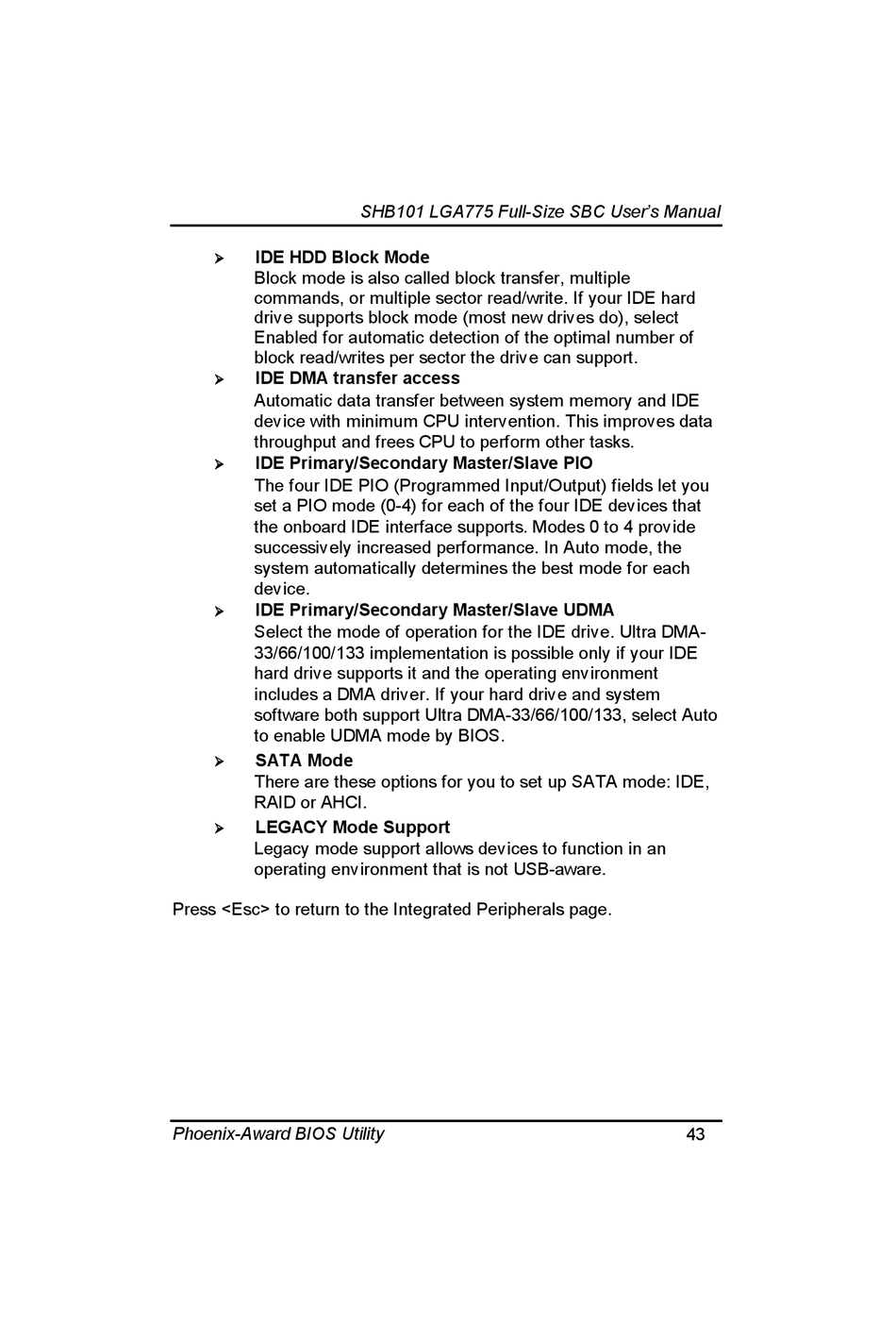

IDE HDD Block Mode

Block mode is also called block transfer, multiple
commands, or multiple sector read/write. If your IDE hard
drive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of
block read/writes per sector the drive can support.
IDE DMA transfer access

Automatic data transfer between system memory and IDE
device with minimum CPU intervention. This improves data
throughput and frees CPU to perform other tasks.
IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you
set a PIO mode (0-4) for each of the four IDE devices that
the onboard IDE interface supports. Modes 0 to 4 provide
successively increased performance. In Auto mode, the
system automatically determines the best mode for each
device.
IDE Primary/Secondary Master/Slave UDMA

Select the mode of operation for the IDE drive. Ultra DMA-
33/66/100/133 implementation is possible only if your IDE
hard drive supports it and the operating environment
includes a DMA driver. If your hard drive and system
software both support Ultra DMA-33/66/100/133, select Auto
to enable UDMA mode by BIOS.
SATA Mode

There are these options for you to set up SATA mode: IDE,
RAID or AHCI.
LEGACY Mode Support

Legacy mode support allows devices to function in an
operating environment that is not USB-aware.
Press <Esc> to return to the Integrated Peripherals page.
