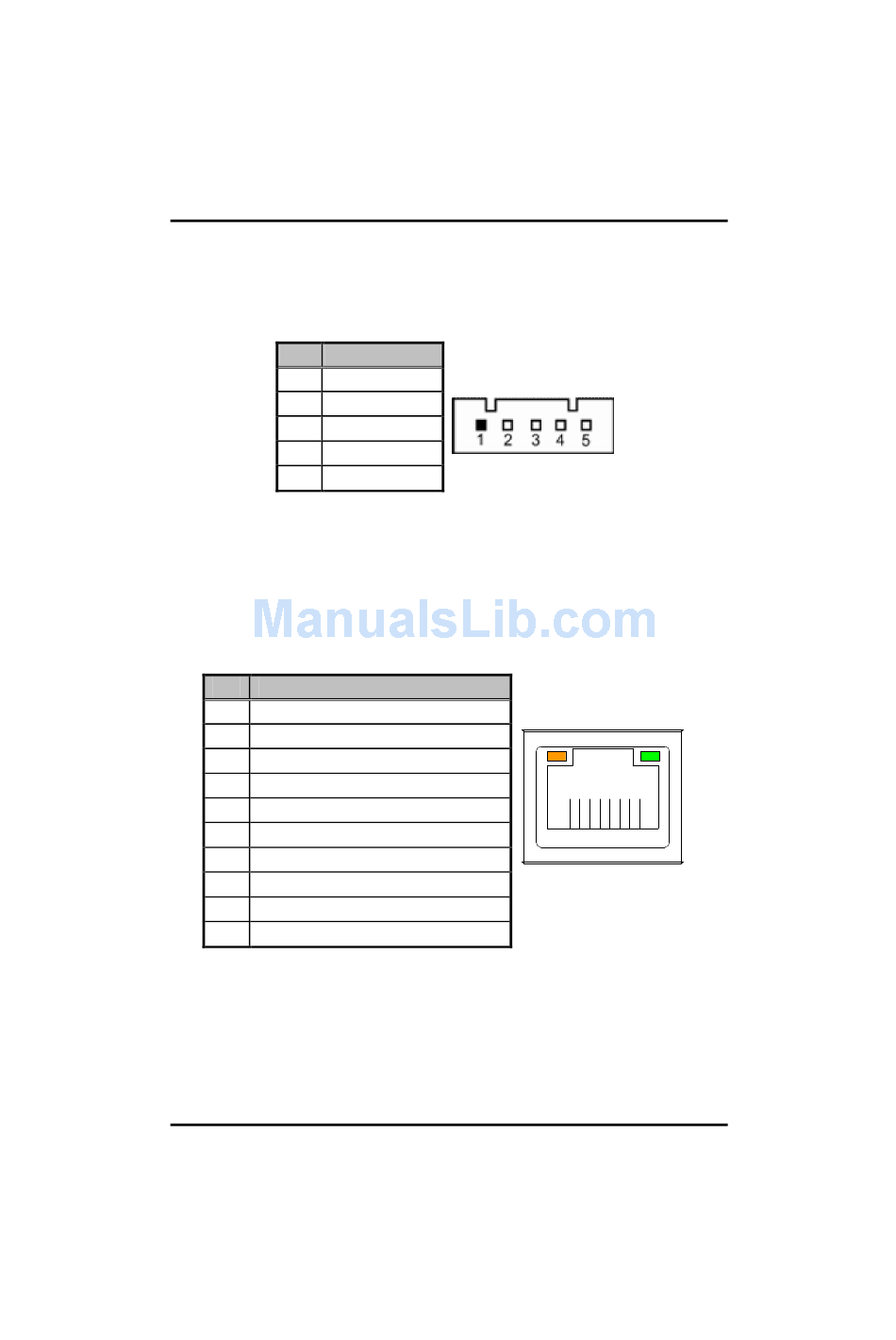

2.4.11 PS/2 Keyboard, Mouse Connector (KB1, MS1)

The board provides the Keyboard (KB1)/ Mouse (MS1) interface with a
5-pin connector.
Pin
1
Clock
2
DATA
3
No connector
4
GND
5 VCC

2.4.12 Ethernet RJ-45 Connectors (LAN1/LAN2)

The RJ-45 connectors LAN1 and LAN2 are for Ethernet. To connect
the board to 100-Base-T or 1000-Base-T hub, just plug one end of the
cable into LAN1 and connect the other end (phone jack) to a 100-
Base-T hub or 1000-Base-T hub.
Pin
Tx+ (Data transmission positive)
1
Tx- (Data transmission negative)
2
Rx+(Data reception positive)
3
RJ-1(For 1000 base T-Only)
4
RJ-1(For 1000 base T-Only)
5
Rx- (Data reception negative)
6
RJ-1(For 1000 base T-Only)
7
RJ-1(For 1000 base T-Only)
8
Active LED
A
Speed LED
B
Jumpers and Connectors
SHB101 LGA775 Full-Size SBC User's Manual
Signal
KB1/MS1
Signal
LAN1/LAN2
A B
8 7 6 5 4 3 2 1
15
