CPU FAN Speed

These optional and read-only items show current speeds in RPM
(Revolution Per Minute) for the CPU fan and chassis fan as
monitored by the hardware monitoring IC.
SYSTEM FAN1 Speed

Show you the current system fan1 temperature.
SYSTEM FAN2 Speed

Show you the current system fan1 temperature.
Vcore +3.3V/+5V/+12V/5VSB

Show you the voltage of +3.3V/+5V/+12V.
Press <Esc> to return to the Main Menu page.

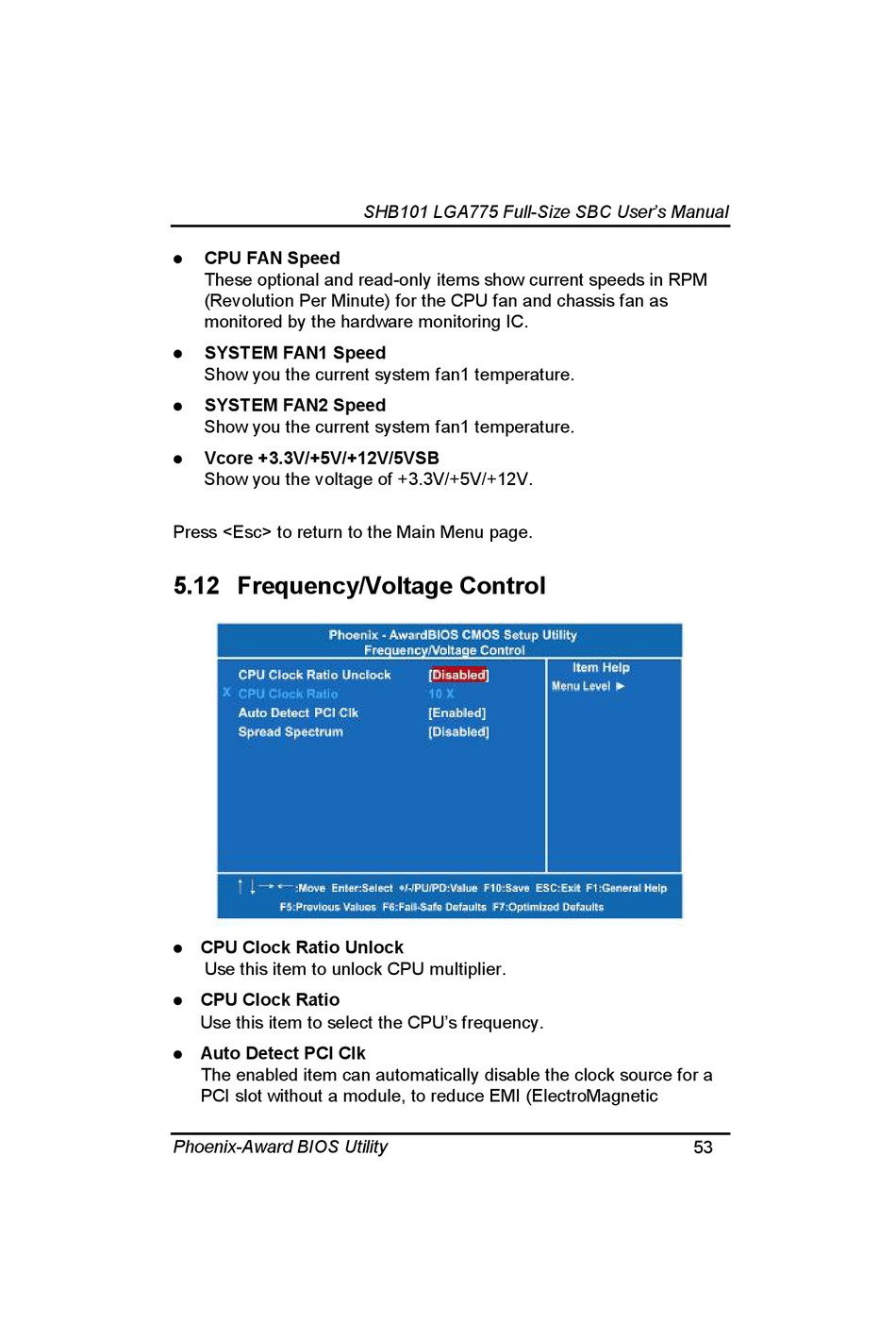

5.12 Frequency/Voltage Control

CPU Clock Ratio Unlock

Use this item to unlock CPU multiplier.
CPU Clock Ratio

Use this item to select the CPU's frequency.
Auto Detect PCI Clk

The enabled item can automatically disable the clock source for a
PCI slot without a module, to reduce EMI (ElectroMagnetic
Phoenix-Award BIOS Utility
