IF No re-set timer
IF to disable WDT
N=00
M= 00h: Time-out Disable
01h: Time-out occurs after 1 second
02h: Time-out occurs after 2 second
03h: Time-out occurs after 3 second
..................................................................
FFh: Time-out occurs after 255 second
N=08
M= 00h: Time-out Disable
01h: Time-out occurs after 1 minute
02h: Time-out occurs after 2 minutes
03h: Time-out occurs after 3 minutes
..................................................................
FFh: Time-out occurs after 255 minutes

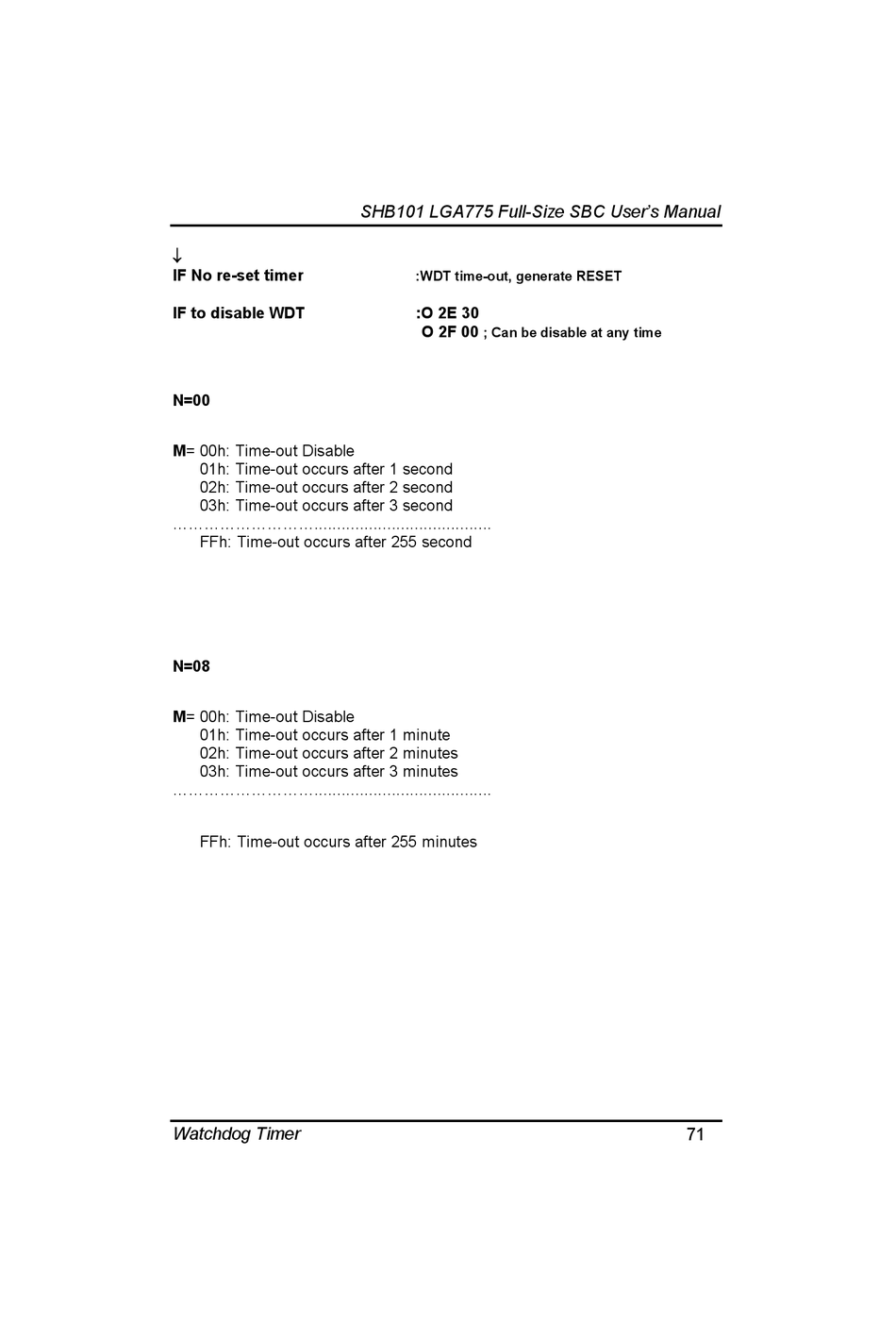

Watchdog Timer
SHB101 LGA775 Full-Size SBC User's Manual
:WDT time-out, generate RESET
:O 2E 30
O 2F 00
; Can be disable at any time
