SHB101 LGA775 Full-Size SBC User's Manual

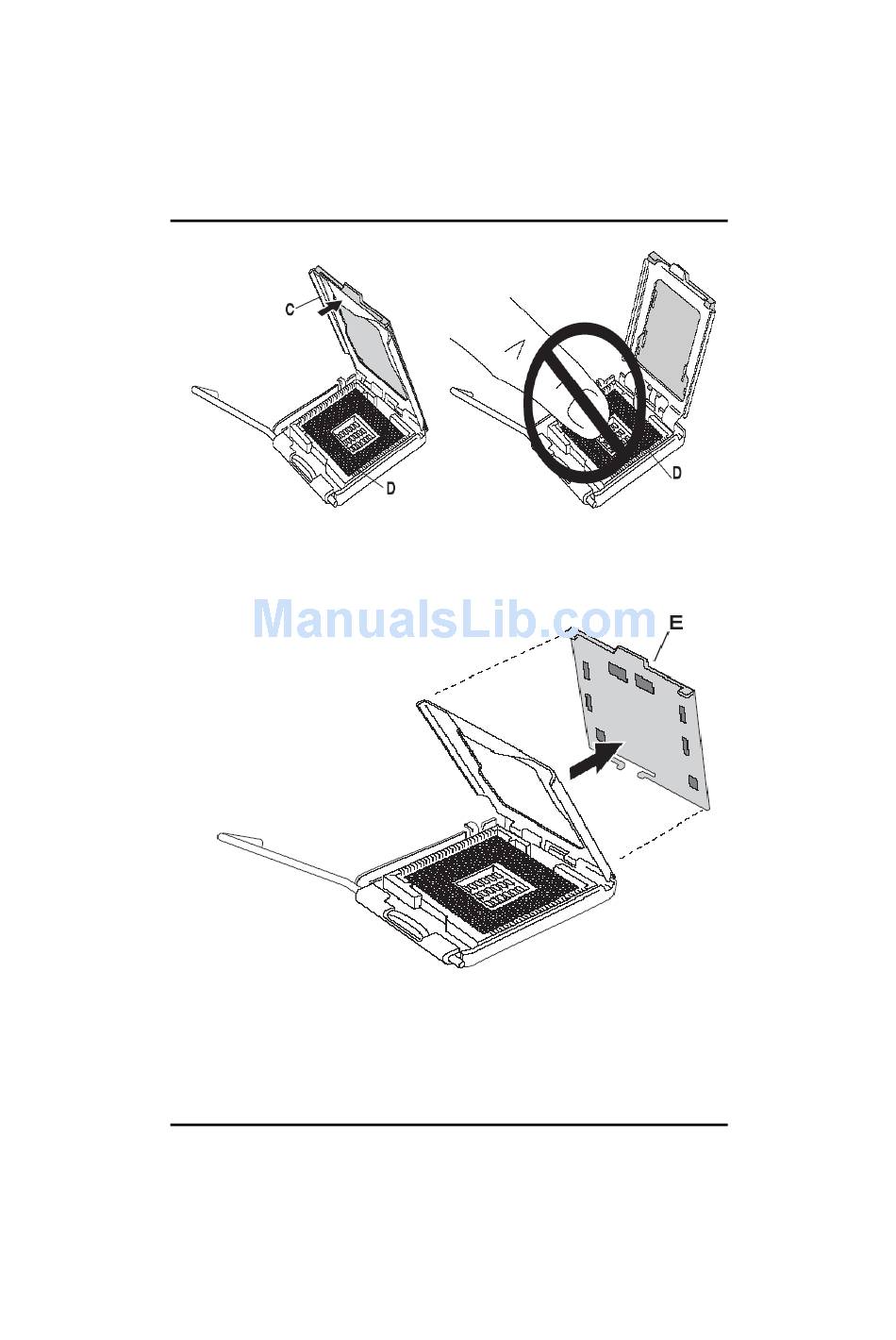

Open the cover (C), you
can see the contact.
Remove the plastic cap (E) from the cover.
20
Be careful not to touch the
contact (D).
Hardware Installation
