SHB101 LGA775 Full-Size SBC User's Manual

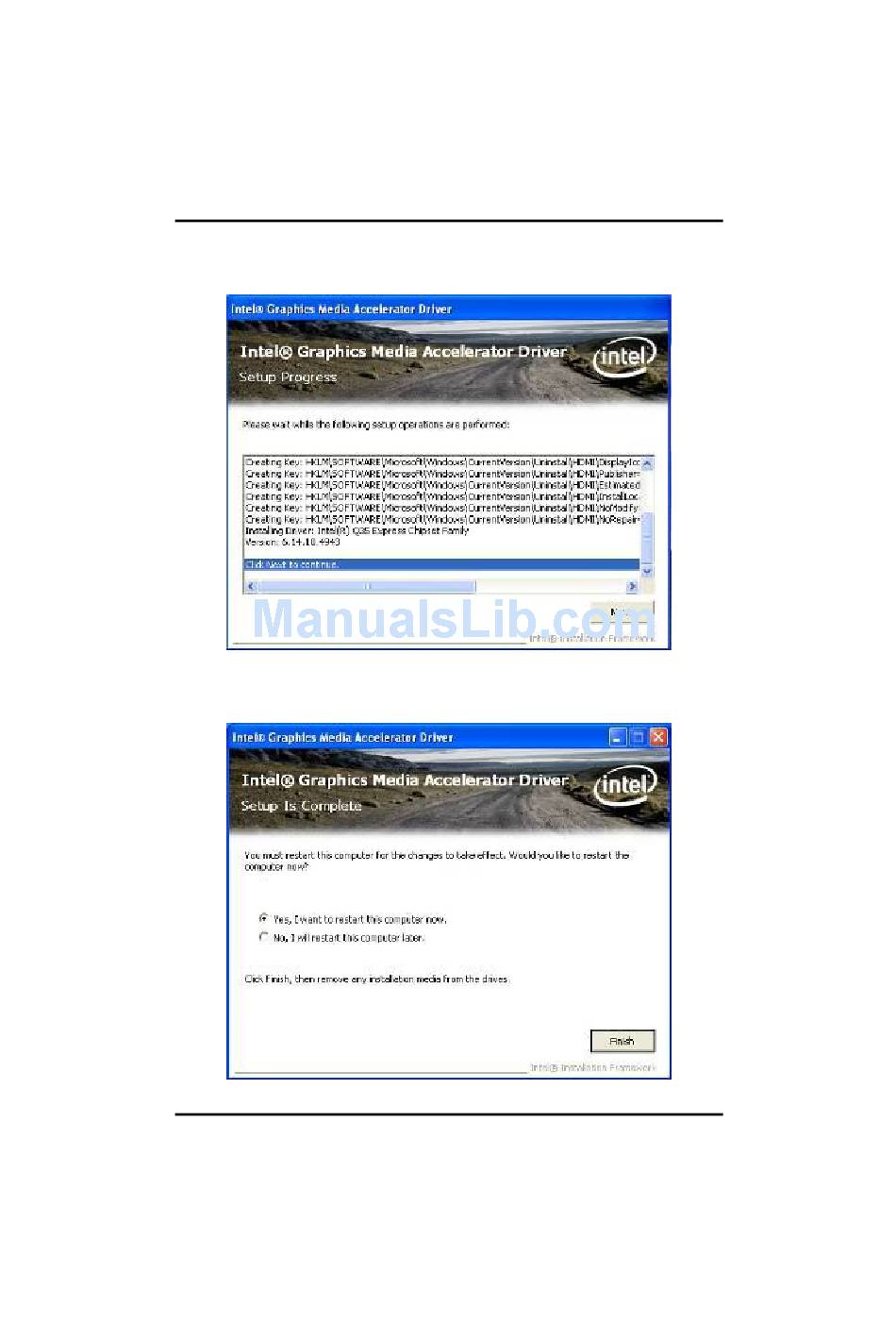

4.
Please wait while running the following setup operations.
When this message appears, please click "Next".
5.
Click "Finish" to complete the setup process.
65
Installation of Drivers
