SHB101 LGA775 Full-Size SBC User's Manual

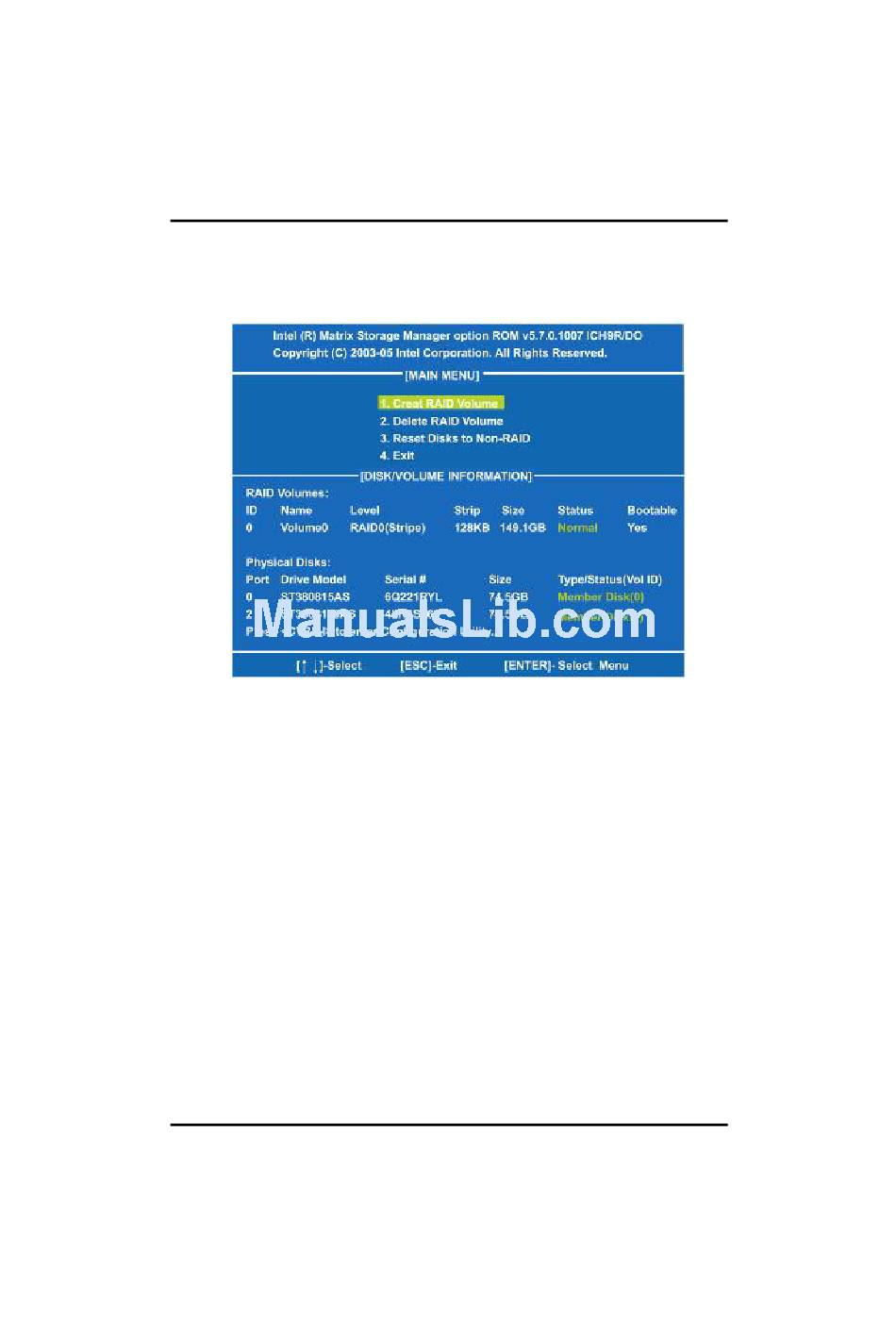

After the creation is completed, you can see detailed information about

the RAID Array in the DISK/VOLUME INFORMATION section,

including RAID mode, disk block size, disk name, and disk capacity,

etc.

Figure 9

Configuring SATA for RAID Function
