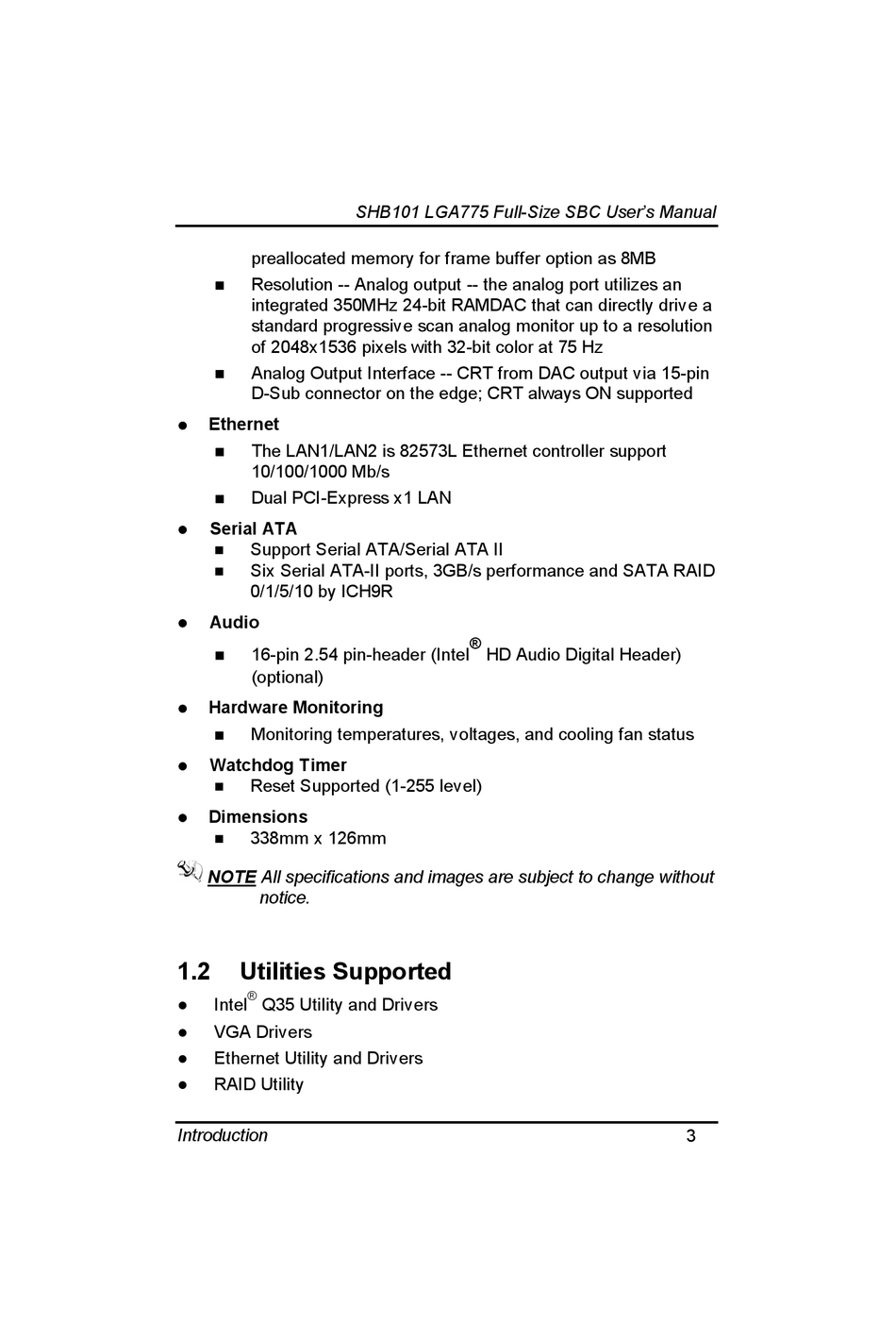

preallocated memory for frame buffer option as 8MB
Resolution -- Analog output -- the analog port utilizes an

integrated 350MHz 24-bit RAMDAC that can directly drive a
standard progressive scan analog monitor up to a resolution
of 2048x1536 pixels with 32-bit color at 75 Hz
Analog Output Interface -- CRT from DAC output via 15-pin

D-Sub connector on the edge; CRT always ON supported
Ethernet

The LAN1/LAN2 is 82573L Ethernet controller support

10/100/1000 Mb/s
Dual PCI-Express x1 LAN

Serial ATA

Support Serial ATA/Serial ATA II

Six Serial ATA-II ports, 3GB/s performance and SATA RAID

0/1/5/10 by ICH9R
Audio

16-pin 2.54 pin-header (Intel

(optional)
Hardware Monitoring

Monitoring temperatures, voltages, and cooling fan status

Watchdog Timer

Reset Supported (1-255 level)

Dimensions

338mm x 126mm

NOTE All specifications and images are subject to change without
notice.
1.2

Utilities Supported

®
Intel Q35 Utility and Drivers

VGA Drivers

Ethernet Utility and Drivers

RAID Utility

Introduction
SHB101 LGA775 Full-Size SBC User's Manual
®
HD Audio Digital Header)
3
