SHB101 LGA775 Full-Size SBC User's Manual

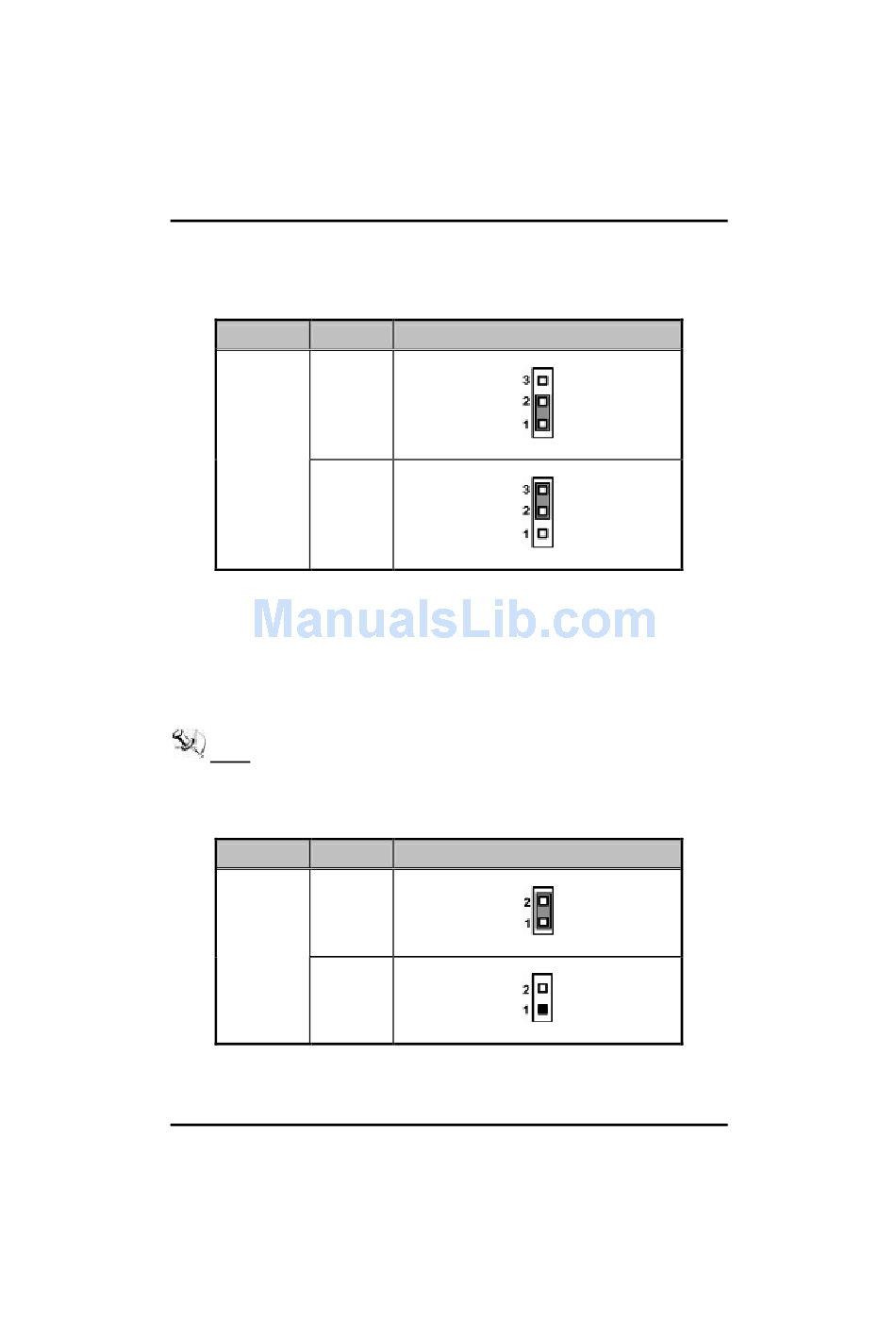

2.3.2 CMOS Clear Jumper (JP6)

You may need to use this jumper is to clear the CMOS memory if
incorrect BIOS settings.
Description Function
Normal
CMOS
(Default)
Clear
Clear
CMOS

2.3.3 ATX Auto Power On/Off (JP7)

When Jumper JP7 is set OPEN for AC power input, the system will be
automatically power ON without pressing soft power button; when JP7
is SHORT for AC power input, it is necessary to manually press soft
power button to make the system power ON.
Note This function is similar to the feature of Power On after
Power Failed, which is controlled by hardware circuitry
instead of BIOS.
Description Function
Disable
ATX Auto
(Default)
Power
On/Off
Enable
8
Jumper Setting
JP6
JP6
Jumper Setting
JP7
JP7
Jumpers and Connectors
