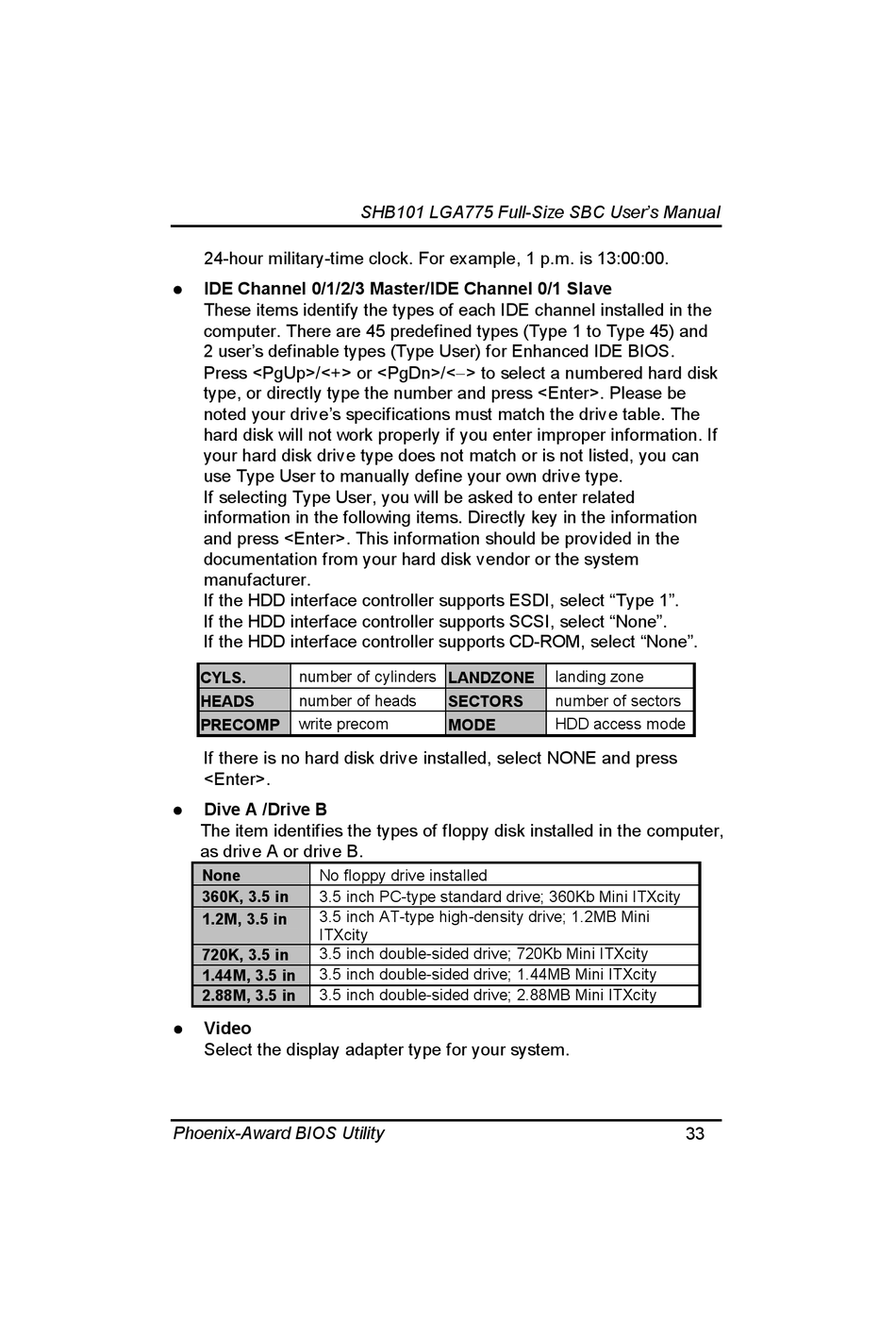

24-hour military-time clock. For example, 1 p.m. is 13:00:00.
IDE Channel 0/1/2/3 Master/IDE Channel 0/1 Slave

These items identify the types of each IDE channel installed in the
computer. There are 45 predefined types (Type 1 to Type 45) and
2 user's definable types (Type User) for Enhanced IDE BIOS.
Press <PgUp>/<+> or <PgDn>/<> to select a numbered hard disk
type, or directly type the number and press <Enter>. Please be
noted your drive's specifications must match the drive table. The
hard disk will not work properly if you enter improper information. If
your hard disk drive type does not match or is not listed, you can
use Type User to manually define your own drive type.
If selecting Type User, you will be asked to enter related
information in the following items. Directly key in the information
and press <Enter>. This information should be provided in the
documentation from your hard disk vendor or the system
manufacturer.
If the HDD interface controller supports ESDI, select "Type 1".
If the HDD interface controller supports SCSI, select "None".
If the HDD interface controller supports CD-ROM, select "None".
number of cylinders LANDZONE
CYLS.
number of heads
HEADS
write precom
PRECOMP
If there is no hard disk drive installed, select NONE and press
<Enter>.
Dive A /Drive B

The item identifies the types of floppy disk installed in the computer,
as drive A or drive B.
None No floppy drive installed
360K, 3.5 in 3.5 inch PC-type standard drive; 360Kb Mini ITXcity
3.5 inch AT-type high-density drive; 1.2MB Mini
1.2M, 3.5 in
ITXcity
3.5 inch double-sided drive; 720Kb Mini ITXcity
720K, 3.5 in
3.5 inch double-sided drive; 1.44MB Mini ITXcity
1.44M, 3.5 in
3.5 inch double-sided drive; 2.88MB Mini ITXcity
2.88M, 3.5 in
Video

Select the display adapter type for your system.
Phoenix-Award BIOS Utility
SHB101 LGA775 Full-Size SBC User's Manual
SECTORS
MODE
landing zone
number of sectors
HDD access mode
