Chapter 3 — Media Load
20

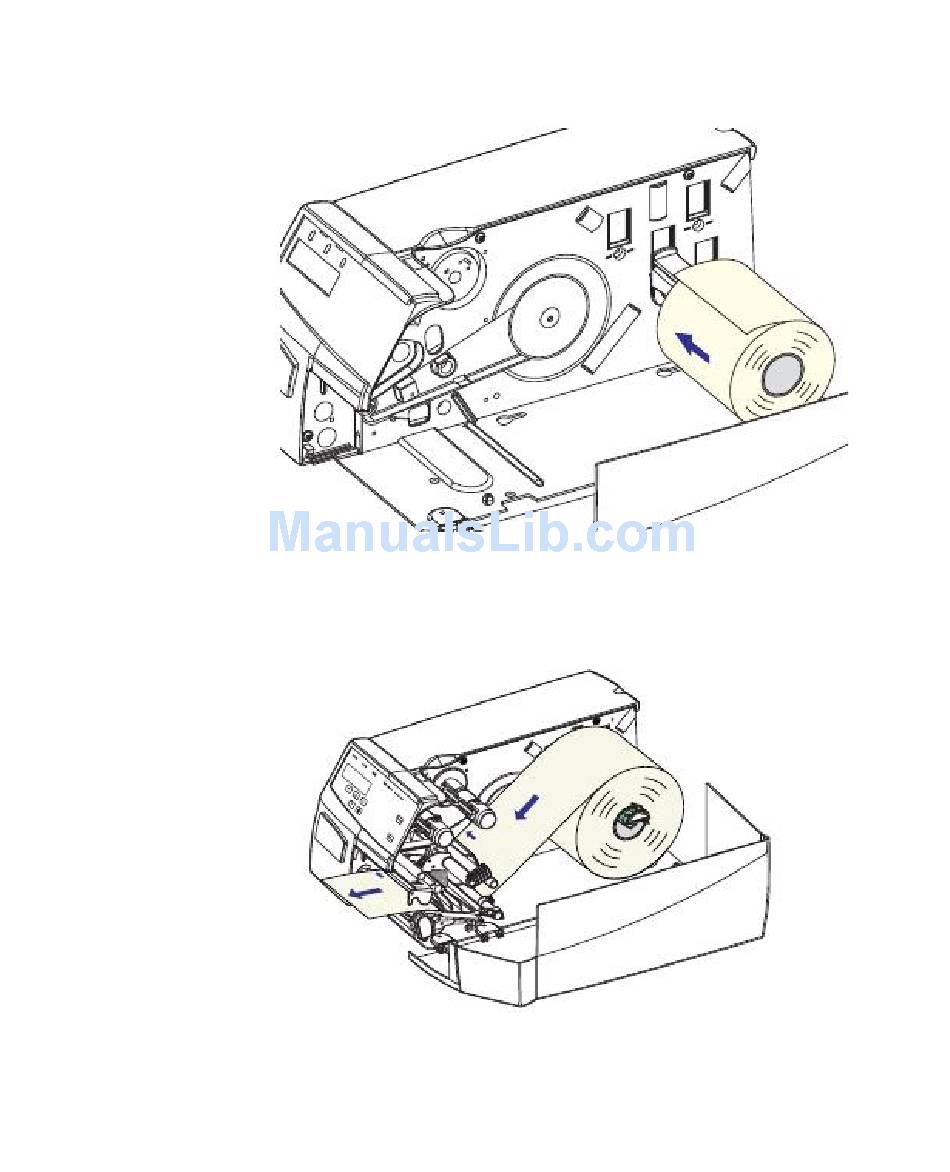

4Fitanewrollofmediaontothemediasupplyhubandadjust
theedgeguidesothattherollbecomesflushwiththecenter
section.
bw
fw
5Routethemediaunderneaththeslackabsorberandforward
towardstheprintmechanism.Theslackabsorbercanbe
rotatedforbetteraccessandthensnap-lockedinopen
position.Routethemediathroughtheprintunitandpushit
inwardsasfarasitwillgo.
3
2
1
4
