Media Supply Roll Post
EasyCoder PF4i User's Guide (IPL Version)
TheEasyCoderPF4iusesamediasupplyrollpostthatcanbe
fittedinthreedifferentpositionsinsidethemediacompartment.
Thepositiondependsonthetypeofsidedoor(longorshort)and
whetherornottheprinterisfittedwithanintegrallinertakeup.
Alternatively,anexternalmediasupply(forexampleaboxoffan-
foldedtickets)behindtheprintercanbeused.Arotatingmedia
supplyhubisalsoavailableasanoption,seeChapter7,
"Options"onpage67.
Tomovetheposttoadifferentslot;removethescrew,twistthe
postaquarterofaturn,andpullitout.
Tofitthepost;rotateitaquarterofaturn,insertitintothe
appropriateslotinthecentersection(seenextpage),andtwist
backsothelipsengagethecutoutsinthesidesoftheslot.Move
itup(largecore)ordown(smallcore)asfarasitgoesandsecure
itwiththescrew.

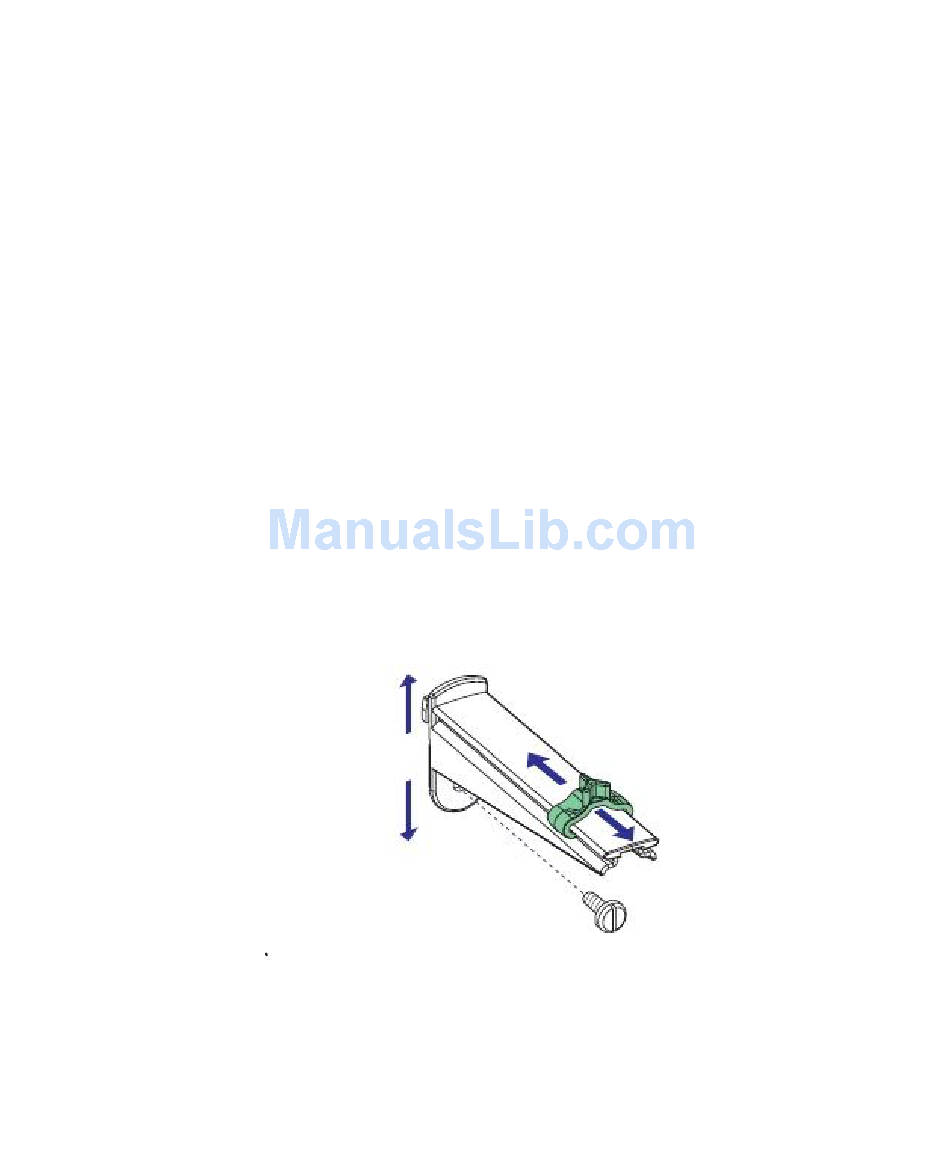

Themediasupplyrollpostfitsboth38-40mm(1.5inches)and
76mm(3.0inches)coressinceitcanbemovedverticallyinthe
slotinthecentersection.Thebottompositionisintendedfor
smallcoresandthetoppositionisforlargecores.Thepostis
lockedbyastraight-slotscrewandhasamoveableedgeguideto
fitvariousmediawidths.
m
ch
E
m
(1.5
Note:Makesuretoadjustthepositionofthepostaccordingto
thesizeofthemediarollcore.Whenthepostisfittedinthetop
position,theheadofthescrewwillinterferewithsmall(38mm/
1.5inches)cores,causingmediamisalignment.
Chapter 2 — Installation
