Installing the Quick-Load Guides
EasyCoder PF4i User's Guide (IPL Version)
TheQuick-Loadguidesmay,dependingonmodel,befactory-
installedorbeenclosedintheboxforoptionalinstallationbythe
user.Theyreplacethestandardedgeguide.
TherearetwotypesofQuick-LoadGuide.Thenarrowtypeis
usedwithmediathatis40-114.3mm(1.57-4.5inches)wide,
andthewidetypeisusedformediabetween80and114.3mm
(3.15-4.5inches).Theinnerguideshouldbefittedflushtothe
centersection,whereastheouteroftheguideisadjustablefor
variousmediawidths.
TheQuick-Loadguidesfacilitatemedialoadfrombehindthe
printmechanismandhelpguidingthemediawhenusingan
externalsupply.RefertoChapter3,"Tear-OffwithQuick-Load
(StraightThrough)"onpage23forloadinginstructions.
Quick-Loadguidescannotbeusedforpeel-offoperation.The
standardring-shapededgeguideisusedwhenyouwanttoload
themediafromthesideratherthanfrombehindandisalsoused
forpeel-offoperation.
To install the Quick-Load Guides

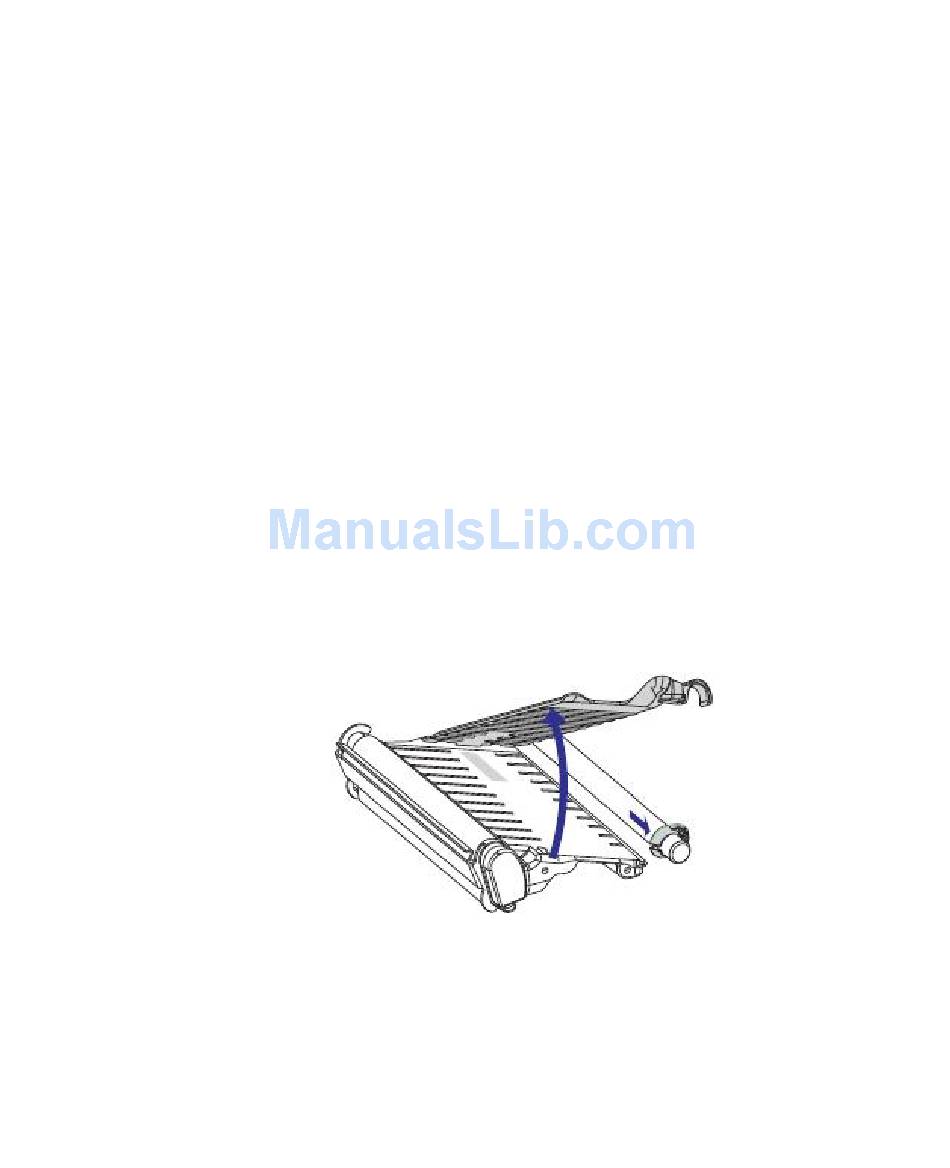

1Liftuptheuppermediaguideandpulloutthegreenedge
guide.Donotdiscardtheedgeguide.
