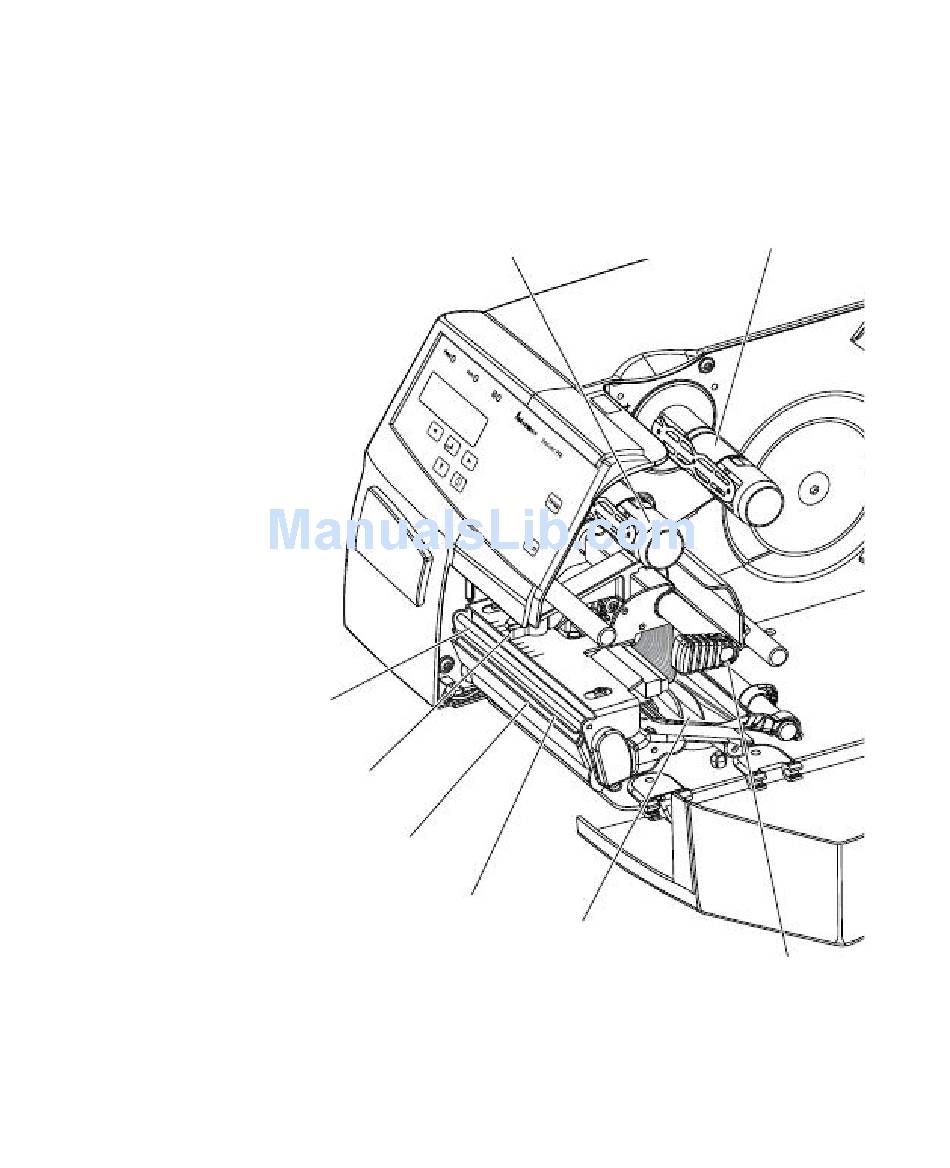

Print Mechanism
Thermal
printhead
Pressure arm
EasyCoder PF4i User's Guide (IPL Version)
Theprintmechanismfeaturesahigh-performancethermal
printheadwithquick-mountfittingstofacilitatereplacement.
Thethermaltransferribbonmechanismisomittedindedicated
directthermalprintingmodels.
Ribbon rewind hub
Tear bar
Platen roller
Print mechanism
Chapter 2 — Installation
Label stop sensor
position adjustment
(bottom sensor hidden)
