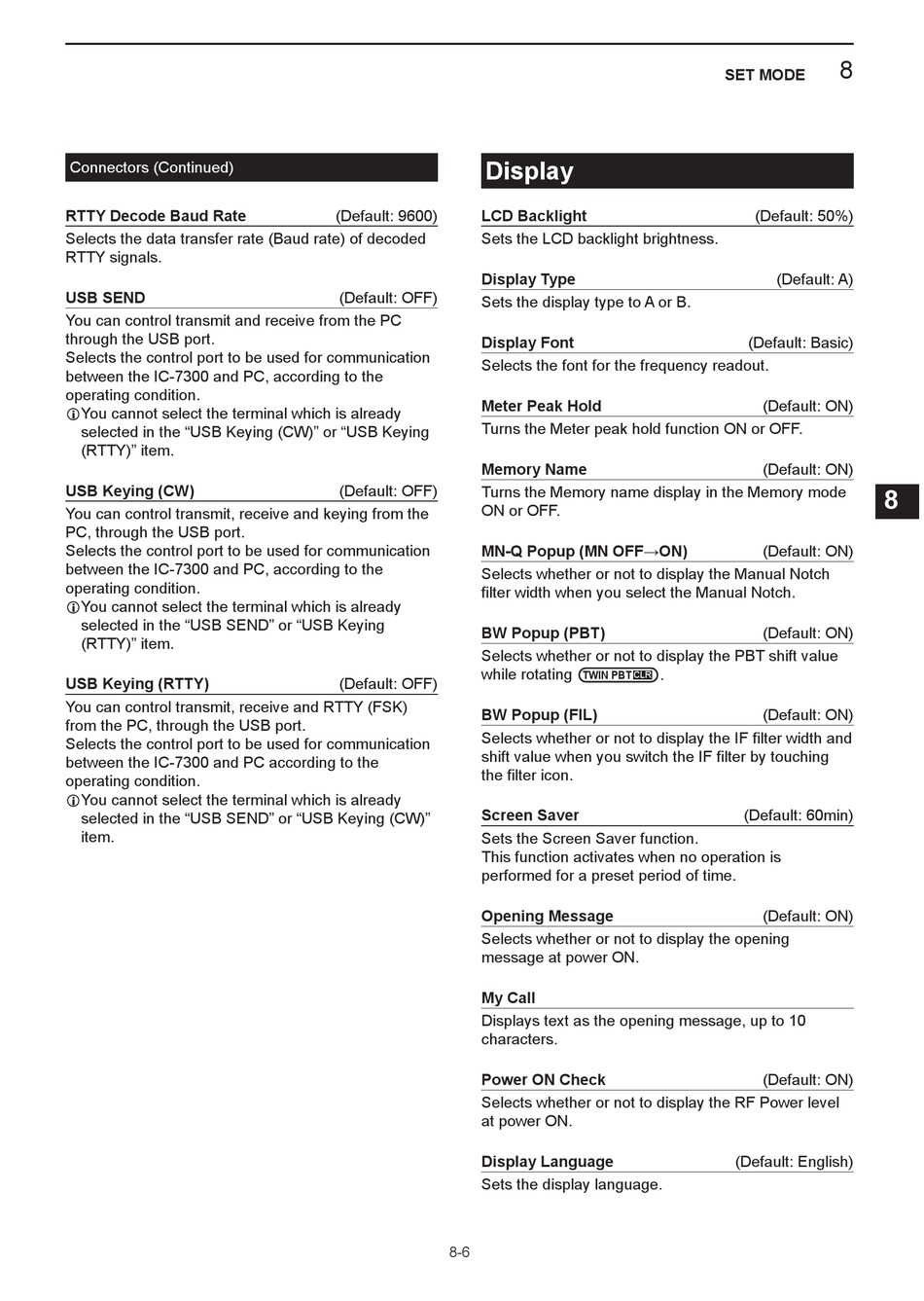

Display - Icom IC-7300 Basic Manual

Connectors (Continued)
RTTY Decode Bmud Rmte
Selects the data transfer rate (Baud rate) of decoded
RTTY signals.
USB SEND
You can control transmit and receive from the PC
through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC, according to the
operating condition.
L You cannot select the terminal which is already
selected in the "USB Keying (CW)" or "USB Keying
(RTTY)" item.
USB Keying (CW)
You can control transmit, receive and keying from the
PC, through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC, according to the
operating condition.
L You cannot select the terminal which is already
selected in the "USB SEND" or "USB Keying
(RTTY)" item.
USB Keying (RTTY)
You can control transmit, receive and RTTY (FSK)
from the PC, through the USB port.
Selects the control port to be used for communication
between the IC-7300 and PC according to the
operating condition.
L You cannot select the terminal which is already
selected in the "USB SEND" or "USB Keying (CW)"
item.
Displmy
(Default: 9600) LCD Bmcklight
Sets the LCD backlight brightness.
Displmy Type
(Default: OFF)
Sets the display type to A or B.
Displmy Font
Selects the font for the frequency readout.
Meter Pemk Hold
Turns the Meter peak hold function ON or OFF.
Memory Nmme
(Default: OFF)
Turns the Memory name display in the Memory mode
ON or OFF.
MN-Q Popup (MN OFF→ON)
Selects whether or not to display the Manual Notch
filter width when you select the Manual Notch.
BW Popup (PBT)
Selects whether or not to display the PBT shift value
while rotating
(Default: OFF)
BW Popup (FIL)
Selects whether or not to display the IF filter width and
shift value when you switch the IF filter by touching
the filter icon.
Screen Smver
Sets the Screen Saver function.
This function activates when no operation is
performed for a preset period of time.
Opening Messmge
Selects whether or not to display the opening
message at power ON.
My Cmll
Displays text as the opening message, up to 10
characters.
Power ON Check
Selects whether or not to display the RF Power level
at power ON.
Displmy Lmngumge
Sets the display language.
8-6
SET MODE
(Default: 50%)
(Default: Basic)
.
TWIN PBT
CLR
(Default: 60min)
(Default: English)
8
1
2
(Default: A)
3
4
5
(Default: ON)
6
7
(Default: ON)
8
9
(Default: ON)
10
11
(Default: ON)
12
13
(Default: ON)
14
15
16
17
18
(Default: ON)
19
20
21
(Default: ON)
