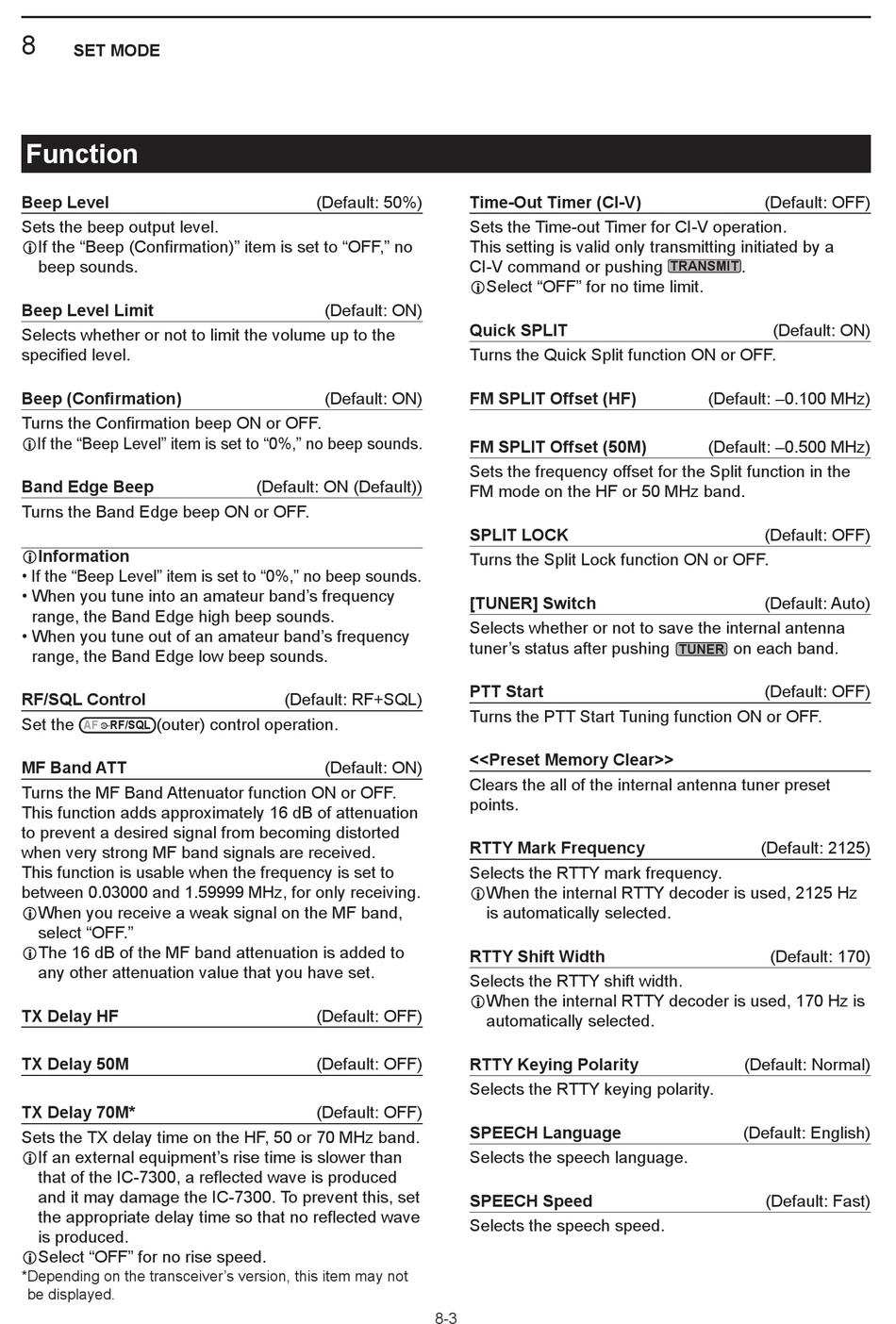

Function - Icom IC-7300 Basic Manual

8
SET MODE

Function

Beep Level
Sets the beep output level.
L If the "Beep (Confirmation)" item is set to "OFF," no
beep sounds.
Beep Level Limit
Selects whether or not to limit the volume up to the
specified level.
Beep (Confirmation)
Turns the Confirmation beep ON or OFF.
L If the "Beep Level" item is set to "0%," no beep sounds.
Bmnd Edge Beep
Turns the Band Edge beep ON or OFF.
Innormmtion
L
• If the "Beep Level" item is set to "0%," no beep sounds.
• When you tune into an amateur band's frequency
range, the Band Edge high beep sounds.
• When you tune out of an amateur band's frequency
range, the Band Edge low beep sounds.
RF/SQL Control
Set the (outer) control operation.
AF RF/SQL
MF Bmnd ATT
Turns the MF Band Attenuator function ON or OFF.
This function adds approximately 16 dB of attenuation
to prevent a desired signal from becoming distorted
when very strong MF band signals are received.
This function is usable when the frequency is set to
between 0.03000 and 1.59999 MHz, for only receiving.
L When you receive a weak signal on the MF band,
select "OFF."
L The 16 dB of the MF band attenuation is added to
any other attenuation value that you have set.
TX Delmy HF
TX Delmy 50M
TX Delmy 70M*
Sets the TX delay time on the HF, 50 or 70 MHz band.
L If an external equipment's rise time is slower than
that of the IC-7300, a reflected wave is produced
and it may damage the IC-7300. To prevent this, set
the appropriate delay time so that no reflected wave
is produced.
LSelect "OFF" for no rise speed.
* Depending on the transceiver's version, this item may not
be displayed.
(Default: 50%)
(Default: ON)
(Default: ON)
(Default: ON (Default))
(Default: RF+SQL)
(Default: ON)
(Default: OFF)
(Default: OFF)
(Default: OFF)
Time-Out Timer (CI-V)
Sets the Time-out Timer for CI-V operation.
This setting is valid only transmitting initiated by a
CI-V command or pushing
LSelect "OFF" for no time limit.
Quick SPLIT
Turns the Quick Split function ON or OFF.
FM SPLIT Onnset (HF)
FM SPLIT Onnset (50M)
Sets the frequency offset for the Split function in the
FM mode on the HF or 50 MHz band.
SPLIT LOCK
Turns the Split Lock function ON or OFF.
[TUNER] Switch
Selects whether or not to save the internal antenna
tuner's status after pushing
PTT Stmrt
Turns the PTT Start Tuning function ON or OFF.
<<Preset Memory Clemr>>
Clears the all of the internal antenna tuner preset
points.
RTTY Mmrk Frequency
Selects the RTTY mark frequency.
L When the internal RTTY decoder is used, 2125 Hz
is automatically selected.
RTTY Shint Width
Selects the RTTY shift width.
L When the internal RTTY decoder is used, 170 Hz is
automatically selected.
RTTY Keying Polmrity
Selects the RTTY keying polarity.
SPEECH Lmngumge
Selects the speech language.
SPEECH Speed
Selects the speech speed.
8-3
(Default: OFF)
.
TRANSMIT
(Default: ON)
(Default: –0.100 MHz)
(Default: –0.500 MHz)
(Default: OFF)
(Default: Auto)
on each band.
TUNER
(Default: OFF)
(Default: 2125)
(Default: 170)
(Default: Normal)
(Default: English)
(Default: Fast)
