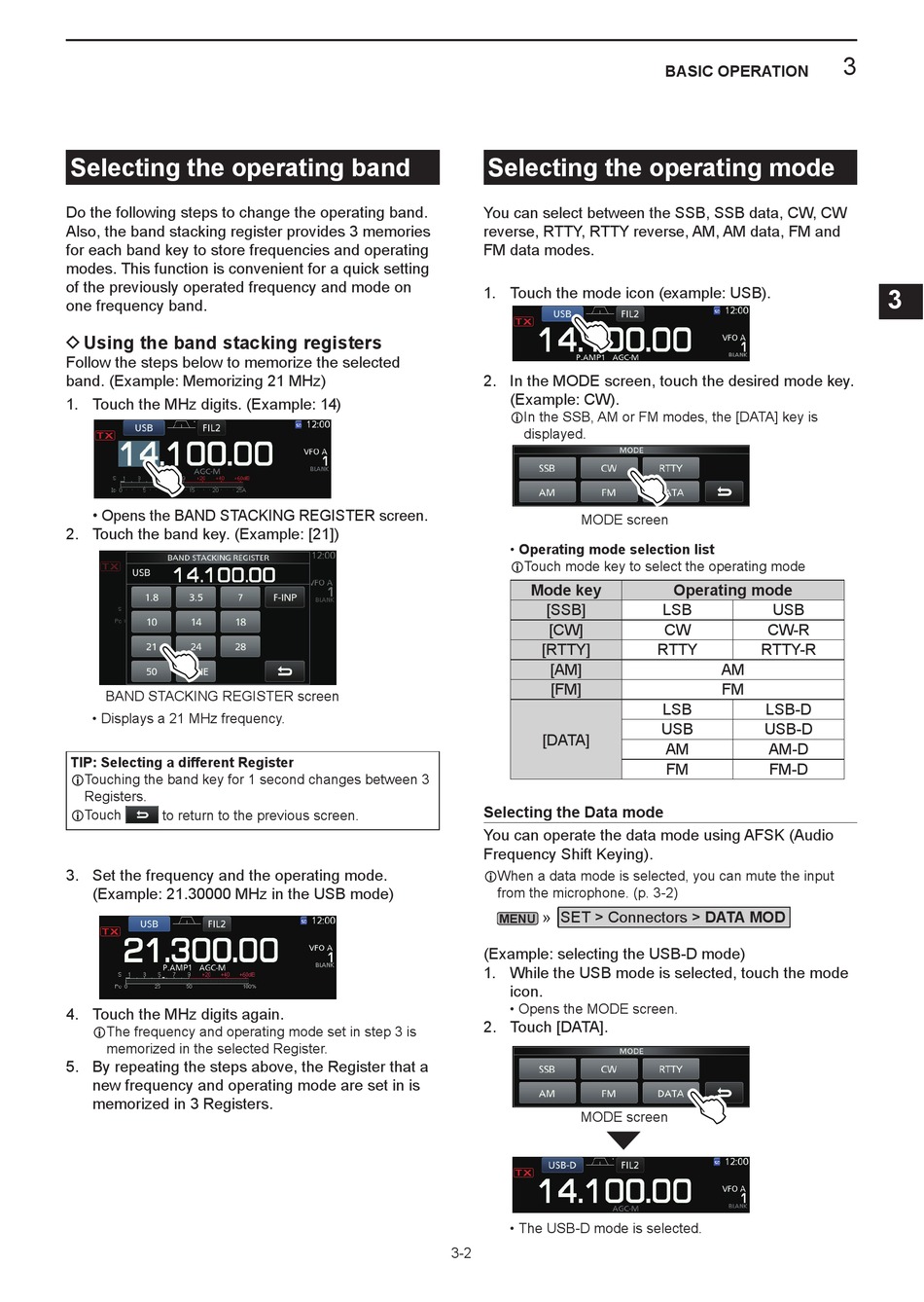

Selecting the operating band

Do the following steps to change the operating band.
Also, the band stacking register provides 3 memories
for each band key to store frequencies and operating
modes. This function is convenient for a quick setting
of the previously operated frequency and mode on
one frequency band.

D Using the band stacking registers

Follow the steps below to memorize the selected
band. (Example: Memorizing 21 MHz)
1. Touch the MHz digits. (Example: 14)
• Opens the BAND STACKING REGISTER screen.
2. Touch the band key. (Example: [21])
BAND STACKING REGISTER screen
• Displays a 21 MHz frequency.
TIP: Selecting a different Register
L Touching the band key for 1 second changes between 3
Registers.
to return to the previous screen.
LTouch
3. Set the frequency and the operating mode.
(Example: 21.30000 MHz in the USB mode)
4. Touch the MHz digits again.
L The frequency and operating mode set in step 3 is
memorized in the selected Register.
5. By repeating the steps above, the Register that a
new frequency and operating mode are set in is
memorized in 3 Registers.

Selecting the operating mode

You can select between the SSB, SSB data, CW, CW
reverse, RTTY, RTTY reverse, AM, AM data, FM and
FM data modes.
1. Touch the mode icon (example: USB).
2. In the MODE screen, touch the desired mode key.
(Example: CW).
L In the SSB, AM or FM modes, the [DATA] key is
displayed.
MODE screen
• Operating mode selection list
LTouch mode key to select the operating mode
Mode key
[SSB]
[CW]
[RTTY]
[AM]
[FM]
[DATA]
Selecting the Data mode
You can operate the data mode using AFSK (Audio
Frequency Shift Keying).
L When a data mode is selected, you can mute the input
from the microphone. (p. 3-2)
» SET > Connectors > DATA MOD
MENU
(Example: selecting the USB-D mode)
1. While the USB mode is selected, touch the mode
icon.
• Opens the MODE screen.
2. Touch [DATA].
MODE screen
• The USB-D mode is selected.
3-2
BASIC OPERATION
Operating mode
LSB USB
CW CW-R
RTTY RTTY-R
AM
FM
LSB LSB-D
USB USB-D
AM AM-D
FM FM-D
