8
SET MODE

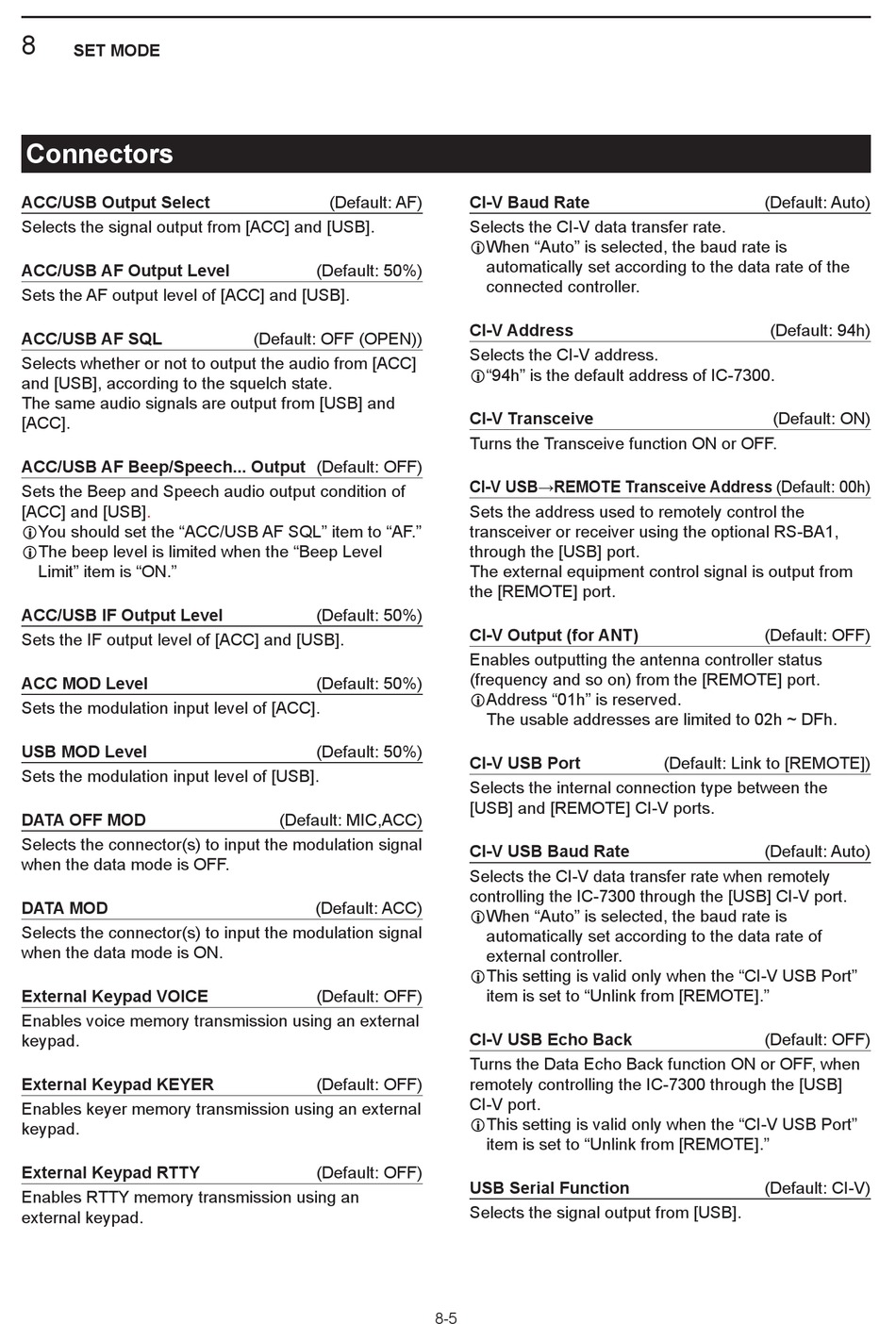

Connectors

ACC/USB Output Select
Selects the signal output from [ACC] and [USB].
ACC/USB AF Output Level
Sets the AF output level of [ACC] and [USB].
ACC/USB AF SQL
Selects whether or not to output the audio from [ACC]
and [USB], according to the squelch state.
The same audio signals are output from [USB] and
[ACC].
ACC/USB AF Beep/Speech... Output (Default: OFF)
Sets the Beep and Speech audio output condition of
[ACC] and [USB].
L You should set the "ACC/USB AF SQL" item to "AF."
L The beep level is limited when the "Beep Level
Limit" item is "ON."
ACC/USB IF Output Level
Sets the IF output level of [ACC] and [USB].
ACC MOD Level
Sets the modulation input level of [ACC].
USB MOD Level
Sets the modulation input level of [USB].
DATA OFF MOD
Selects the connector(s) to input the modulation signal
when the data mode is OFF.
DATA MOD
Selects the connector(s) to input the modulation signal
when the data mode is ON.
Externml Keypmd VOICE
Enables voice memory transmission using an external
keypad.
Externml Keypmd KEYER
Enables keyer memory transmission using an external
keypad.
Externml Keypmd RTTY
Enables RTTY memory transmission using an
external keypad.
(Default: AF)
(Default: 50%)
(Default: OFF (OPEN))
(Default: 50%)
(Default: 50%)
(Default: 50%)
(Default: MIC,ACC)
(Default: ACC)
(Default: OFF)
(Default: OFF)
(Default: OFF)
CI-V Bmud Rmte
Selects the CI-V data transfer rate.
L When "Auto" is selected, the baud rate is
automatically set according to the data rate of the
connected controller.
CI-V Address
Selects the CI-V address.
L"94h" is the default address of IC-7300.
CI-V Trmnsceive
Turns the Transceive function ON or OFF.
CI-V USB→REMOTE Transceive Address (Default: 00h)
Sets the address used to remotely control the
transceiver or receiver using the optional RS-BA1,
through the [USB] port.
The external equipment control signal is output from
the [REMOTE] port.
CI-V Output (nor ANT)
Enables outputting the antenna controller status
(frequency and so on) from the [REMOTE] port.
L Address "01h" is reserved.
The usable addresses are limited to 02h ~ DFh.
CI-V USB Port
Selects the internal connection type between the
[USB] and [REMOTE] CI-V ports.
CI-V USB Bmud Rmte
Selects the CI-V data transfer rate when remotely
controlling the IC-7300 through the [USB] CI-V port.
L When "Auto" is selected, the baud rate is
automatically set according to the data rate of
external controller.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
CI-V USB Echo Bmck
Turns the Data Echo Back function ON or OFF, when
remotely controlling the IC-7300 through the [USB]
CI-V port.
L This setting is valid only when the "CI-V USB Port"
item is set to "Unlink from [REMOTE]."
USB Seriml Function
Selects the signal output from [USB].
8-5
(Default: Auto)
(Default: 94h)
(Default: ON)
(Default: OFF)
(Default: Link to [REMOTE])
(Default: Auto)
(Default: OFF)
(Default: CI-V)
