D Entering A Band Edge - Icom IC-7300 Basic Manual

Setting the frequency (Continued)

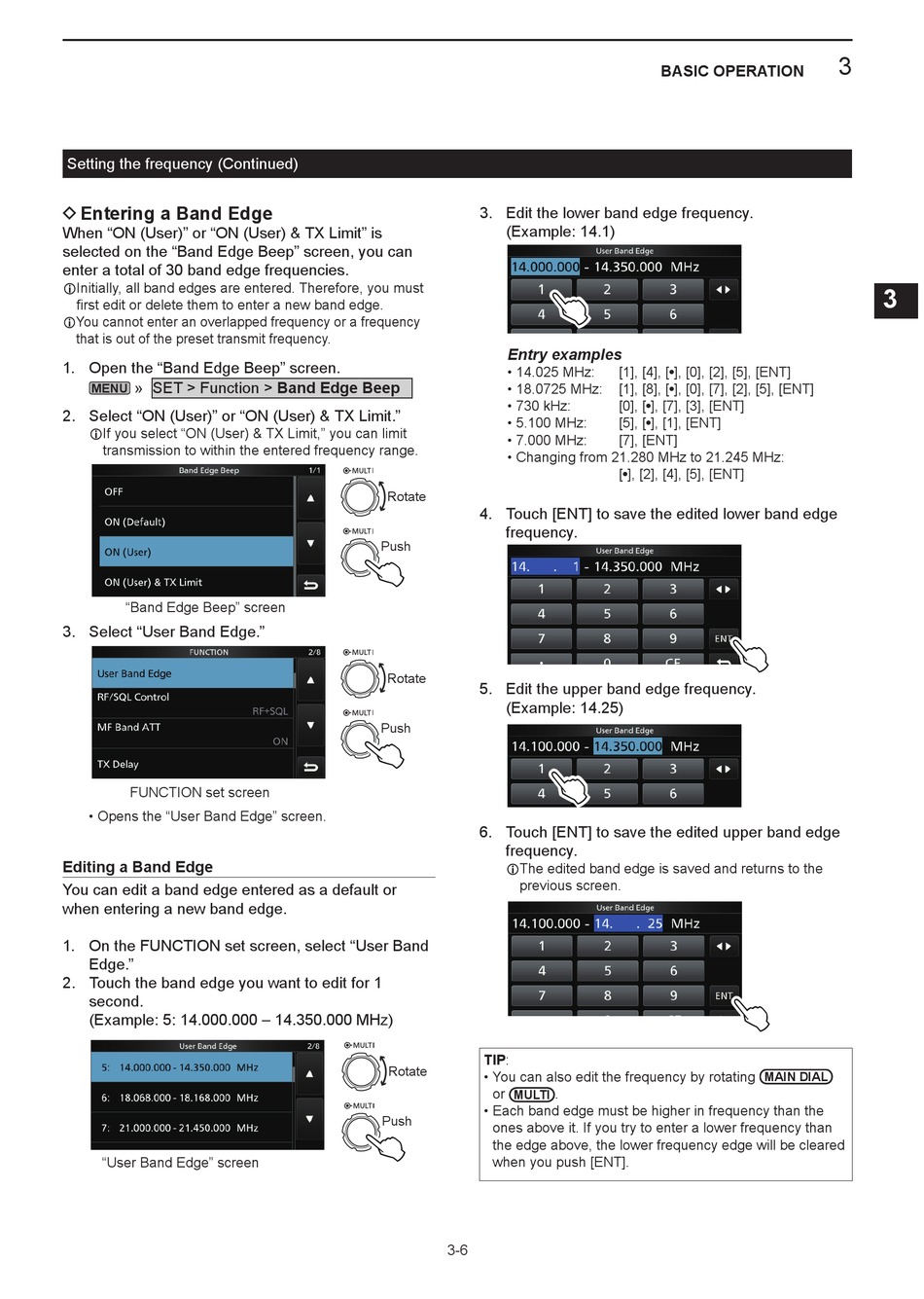

D Entering a Band Edge

When "ON (User)" or "ON (User) & TX Limit" is
selected on the "Band Edge Beep" screen, you can
enter a total of 30 band edge frequencies.
L Initially, all band edges are entered. Therefore, you must
first edit or delete them to enter a new band edge.
L You cannot enter an overlapped frequency or a frequency
that is out of the preset transmit frequency.
1. Open the "Band Edge Beep" screen.
» SET > Function > Band Edge Beep
MENU
2. Select "ON (User)" or "ON (User) & TX Limit."
L If you select "ON (User) & TX Limit," you can limit
transmission to within the entered frequency range.
"Band Edge Beep" screen
3. Select "User Band Edge."
FUNCTION set screen
• Opens the "User Band Edge" screen.
Editing a Band Edge
You can edit a band edge entered as a default or
when entering a new band edge.
1. On the FUNCTION set screen, select "User Band
Edge."
2. Touch the band edge you want to edit for 1
second.
(Example: 5: 14.000.000 – 14.350.000 MHz)
"User Band Edge" screen
3. Edit the lower band edge frequency.
(Example: 14.1)
Entry examples
• 14.025 MHz:
• 18.0725 MHz:
• 730 kHz:
• 5.100 MHz:
• 7.000 MHz:
• Changing from 21.280 MHz to 21.245 MHz:
Rotate
4. Touch [ENT] to save the edited lower band edge
frequency.
Push
Rotate
5. Edit the upper band edge frequency.
(Example: 14.25)
Push
6. Touch [ENT] to save the edited upper band edge
frequency.
L The edited band edge is saved and returns to the
previous screen.
TIP:
Rotate
• You can also edit the frequency by rotating
or
MULTI
• Each band edge must be higher in frequency than the
Push
ones above it. If you try to enter a lower frequency than
the edge above, the lower frequency edge will be cleared
when you push [ENT].
3-6
BASIC OPERATION
[1], [4], [•], [0], [2], [5], [ENT]
[1], [8], [•], [0], [7], [2], [5], [ENT]
[0], [•], [7], [3], [ENT]
[5], [•], [1], [ENT]
[7], [ENT]
[•], [2], [4], [5], [ENT]
.
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
MAIN DIAL
