5. After registration, press the EL-2602's tamper switch to terminate
Test mode.
6. Before permanently mounting the unit, test the transmitter from the
exact mounting position.
7. To remove the PCB, press the PCB release tab, carefully lift the board
and slide the board away from the back cover.
When handling the PCB, do not apply pressure on the antenna.
8. Knockout the wiring hole in the back cover.
9. Thread the wires through the wiring hole.
10. Mount the back cover to the wall using two screws and replace the
PCB. Use ISO 7050 (ST3.5 x 22) or similar countersunk screws so that
the screw head will not touch the PCB – see Figure B.4.
11. Connect the terminal block as follows: 1 - Alarm; 2 - GND.
12. Test the
during transmissions.
13. Close the front cover of the EL-2602.

Glassbreak Sensor (EL-2606)

The EL-2606 is an intelligent acoustic glassbreak sensor with an incorporated
wireless transmitter.
Mounting Considerations
The EL-2606 acoustic sensor is omni-
directional, providing 360º coverage.
The coverage is measured from the
sensor to the point on the glass farthest
from the sensor. The sensor can be
mounted as close as 1m from the glass.
Sensor range:
•
If mounting on the ceiling, the opposite wall or adjoining walls, the
maximum range is 6m for plate, tempered, laminated and wired glass.
•
For armor-coated glass, the maximum range is 3.65m.
Minimum recommended glass size:
•
0.3m x 0.6m
Glass thickness:
•
Plate: 2.4mm to 6.4mm
•
Tempered: 3.2mm to 6.4mm
•
Wired: 6.4mm
•
Laminated: 3.2mm to 6.4mm
For best detection:
•
The sensor must always be in direct line of sight of all windows to
be protected.
•
If mounting on the wall, try to install the sensor directly opposite the
protected window. If this is not possible, adjoining side walls are also a
good location.
•
If mounting on the ceiling, install the sensor 2-3m into the room.
transmitter, making certain that

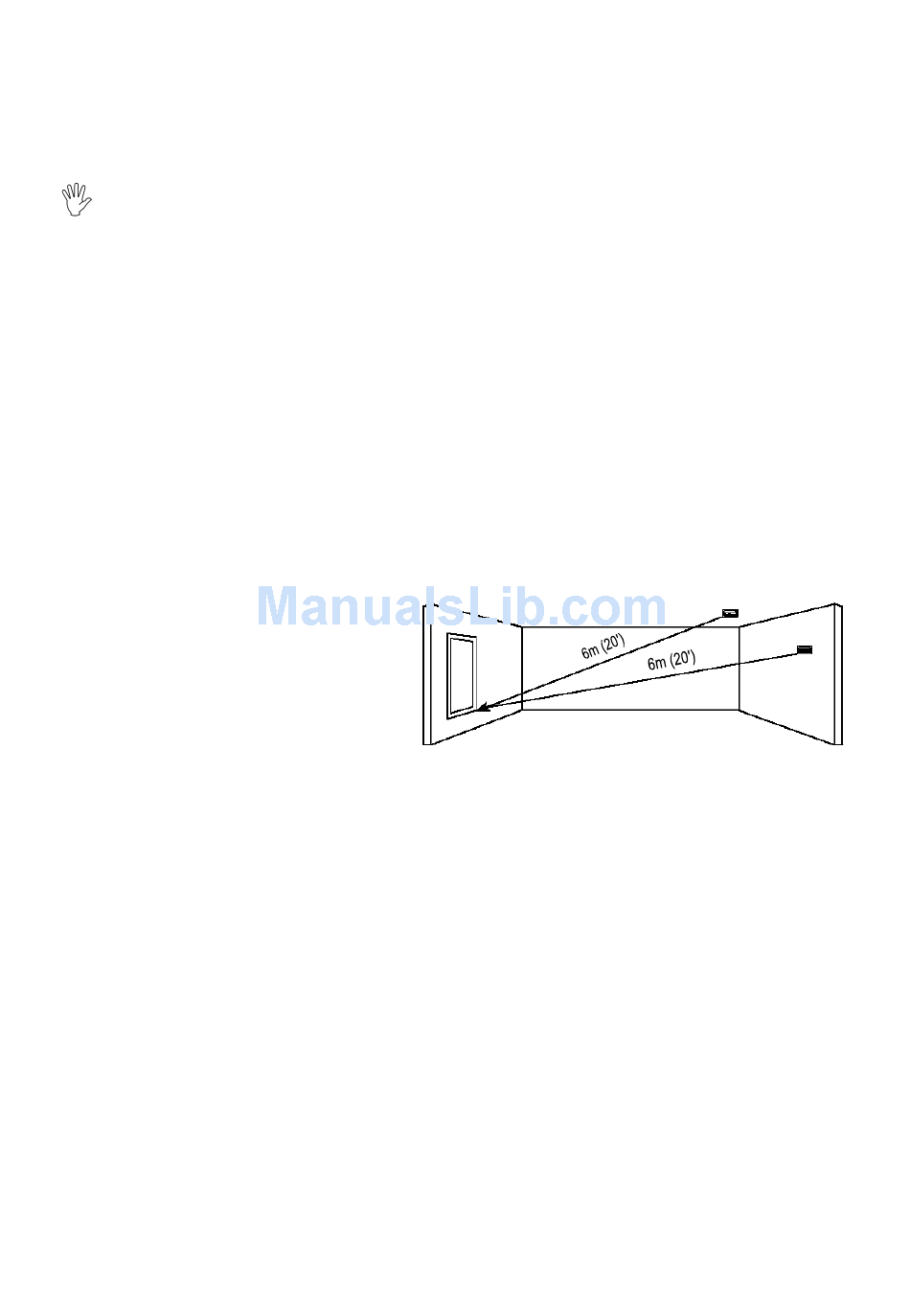

Figure B.6: Acoustic Sensor Range Measurement
(plate, tempered, laminated and wired glass)
-98-
the LED is lit
