Electronics Line Infinite Prime Installation Manual page 11

1. Interface connector to Main Board
2. Flash programming connector
3. Power-line terminal connections to Main Board (1 - Neutral; 2 - Live)
Figure 1.6 shows the HA module used in the systems with external PLI.
1. Interface connector to Main board
2. Status LED
3. Flash programming connector
4. Jumper header
5. Connector to the external power-line interface
For external X10 PLI, we recommend to use the two way TTL/CMOS interface such as XM10E
module connected to the HA module with an RJ11 cable wired as shown on figure 1.7.

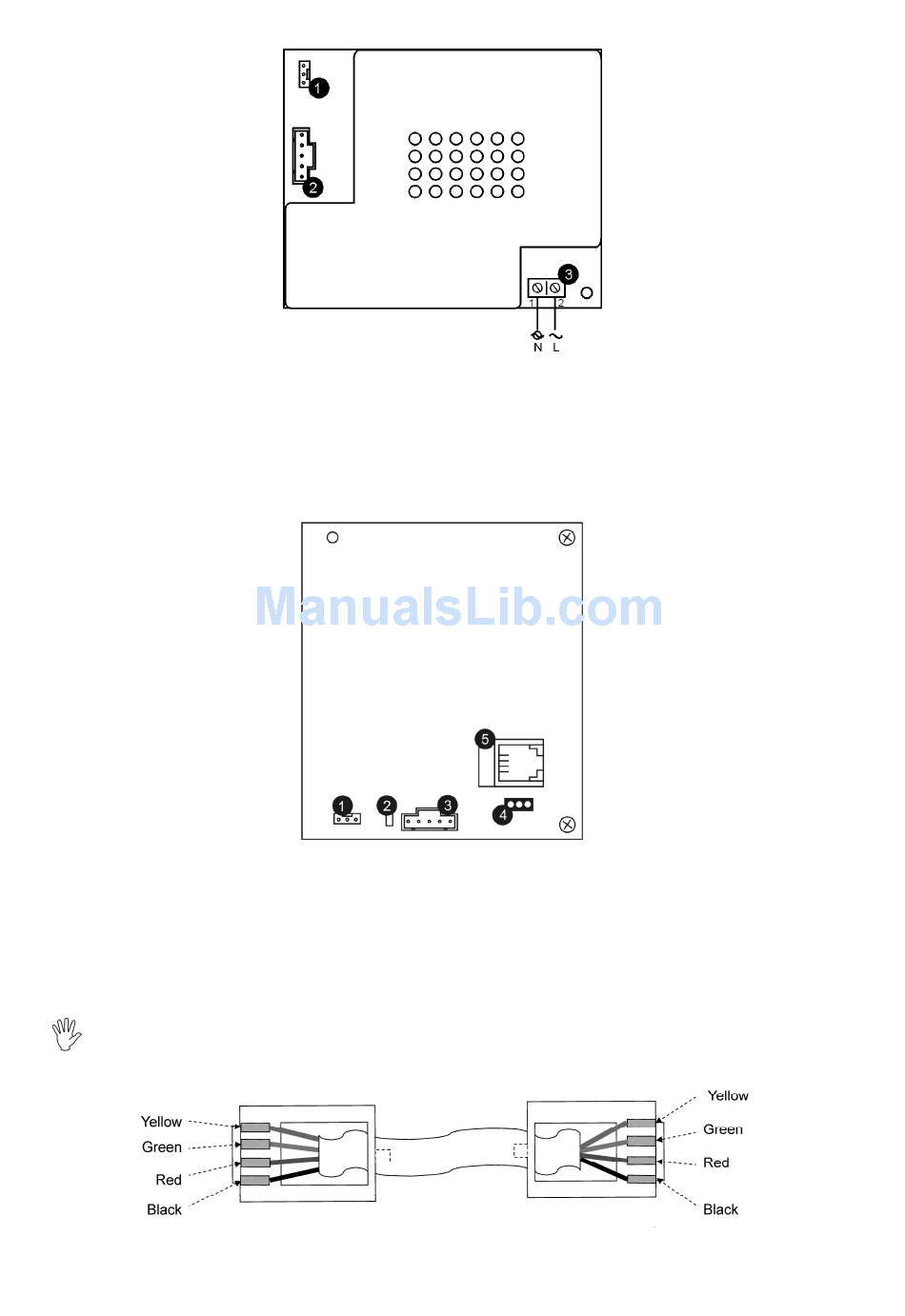

Figure 1.5: Home Automation Module (with internal PLI)
Figure 1.6: Home Automation Module (with external PLI)
Figure 1.7: RJ11 wiring diagram
-11-
