PIR Sensors (EL-2600/EL-2600PI/EL-2645/EL-2645PI)

The EL-2600, EL-2600PI, EL-2645 and EL-2645PI are intelligent wireless PIR sensors for use

with the infinite prime system. All of these sensors implement a feature to combat the problem of

multiple transmissions, which drastically reduce the life of the batteries. After each transmission,

there is a four-minute delay during which further transmissions will not be sent.

The EL-2600PI and EL-2645PI are designed for installations prone to nuisance alarms

caused by pets or small animals.

Mounting

Hole

Battery

Holder

Mode

Jumper

Tamper

Switch

Vertical

Adjustment

Scale

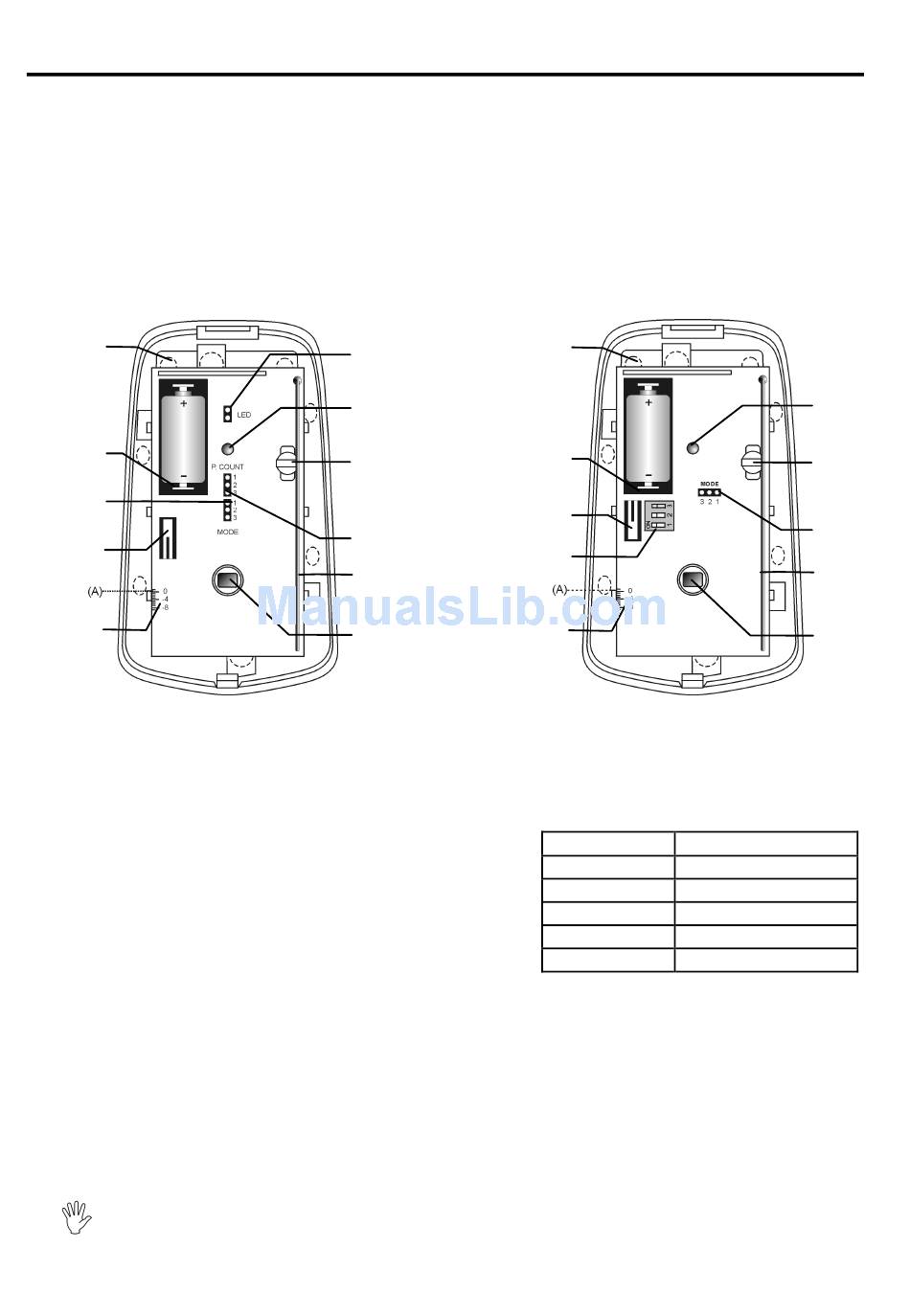

Figure B.1: PIR Sensors with Cover Removed – EL-2600/EL-2600PI (left) and EL-2645/EL-2645PI (right)

Considerations Before Installation

•

Select a location from which the pattern of the detector is most likely to

be crossed by a burglar, should there be a break in.

•

Do not place bulky objects in front of

the detector.

•

Avoid a location which comes in direct

contact

ducts, mirrors and air conditioners.

•

Select an appropriate installation height

from Table B1.

Pet Immunity Guidelines (EL-2600PI/EL-2645PI)

It is expected that the EL-2600PI and EL-2645PI will eliminate false alarms caused by:

•

Animals

(EL-2600PI)

•

Animals

(EL-2645PI)

•

Several small rodents

The weight of the animal should only be used as a guide, other factors such as the length

and color of fur also affect the level of immunity.
