7. To remove the PCB, press the PCB release tab and carefully lift the
board and slide the board away from the back cover.
8. The EL-2601 is able to operate in
three modes:
Universal Transmitter or a combination
of the two. If connecting a wired
contact loop (N.C.), connect the
terminal block as follows: 1 - Alarm; 2 -
GND. For this purpose, a wiring
knockout is provided in the back cover.
9. Mount the back cover using two screws and replace the PCB.
Use ISO 7050 (ST3.5 x 22) or similar countersunk screws so
that the screw head will not touch the PCB – see Figure B.4.
10. To open the magnet's housing, insert a small screwdriver into
one of the pry-off slots located at either end of the magnet's
back cover and lift to separate from the front cover.
11. Mount the back cover of the magnet using two screws. Make
sure that the guideline on the magnet is correctly aligned with
the guideline on the transmitter.
Do not install the magnet further than 1cm from the transmitter.
12. Test the transmitter, making certain that the LED is lit when opening
the door/window and again when closing.
13. Close the front covers of the transmitter and the magnet.

Universal Transmitter (EL-2602)

The EL-2602 is a universal transmitter that includes a single output for use in a wide range of
wireless applications.
Installation Procedure
To install universal transmitters:
1. To open the housing, insert a small
screwdriver at the bottom of the unit
between the front and back cover and
twist the screwdriver to release the cover.
2. Remove the divider separating the
battery from the contacts on the
battery holder. When you apply power
and the Tamper switch is open, the
EL-2602 enters Test mode during
which a transmission is sent every few
seconds. You can terminate Test
mode by closing the Tamper switch.
Test mode is automatically terminated
after approximately five minutes.
3. From the Programming menu, select Devices, Zones [911].
4. Select the zone to which you want to register the transmitter; the system
initiates Registration mode. When Save? appears on the control system's
LCD display, press .
Magnetic Switch,
-97-
Jumper Position Operation Mode
Pins 1&2 Universal Transmitter
Pins 2&3 Magnetic Switch
Jumper Magnetic Switch/
Removed Universal Transmitter
Table B.5: Operation Mode Jumper
Antenna
LED
Indicator
Location
of wiring
knockout

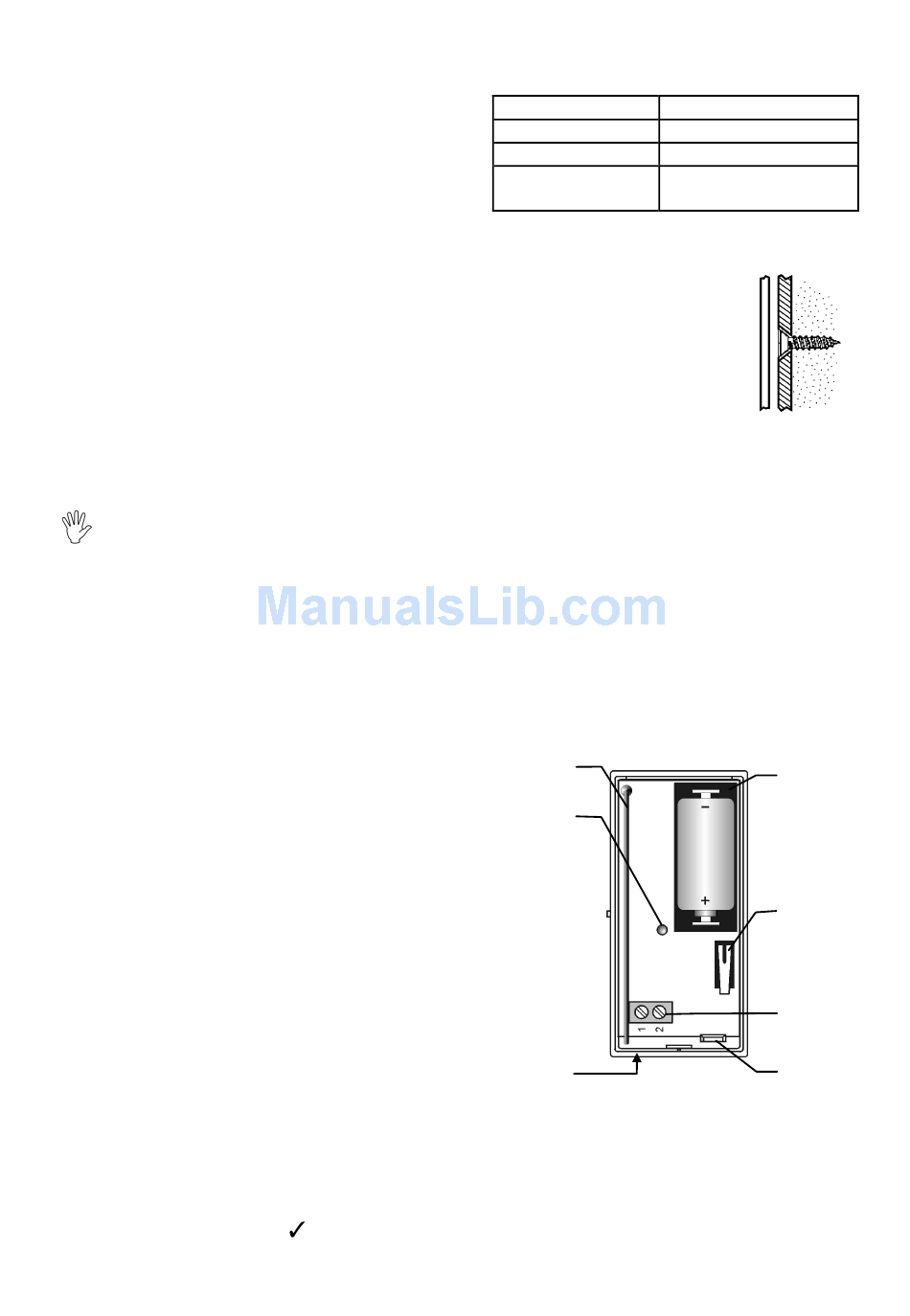

Figure B.5: EL-2602 (cover off)
PCB
HOUSING
Figure B.4:
Mounting
Screw Position
Battery
Holder
Tamper
Switch
Loop
Terminals
PCB
Release
Tab
