1.4.4: Cellular Communications Module
The Cellular Communications module enables the control system to communicate via
cellular networks. This offers the ability to send or receive SMS messages, perform
up/downloading, implement cellular 2-way voice applications.
1.
SIM card holder
2.
SIM card release
3.
Status LED
4.
Flash programming connector
5.
Flat-cable interface connector to Main Board
6.
Internal Antenna
7.
External Antenna Connector

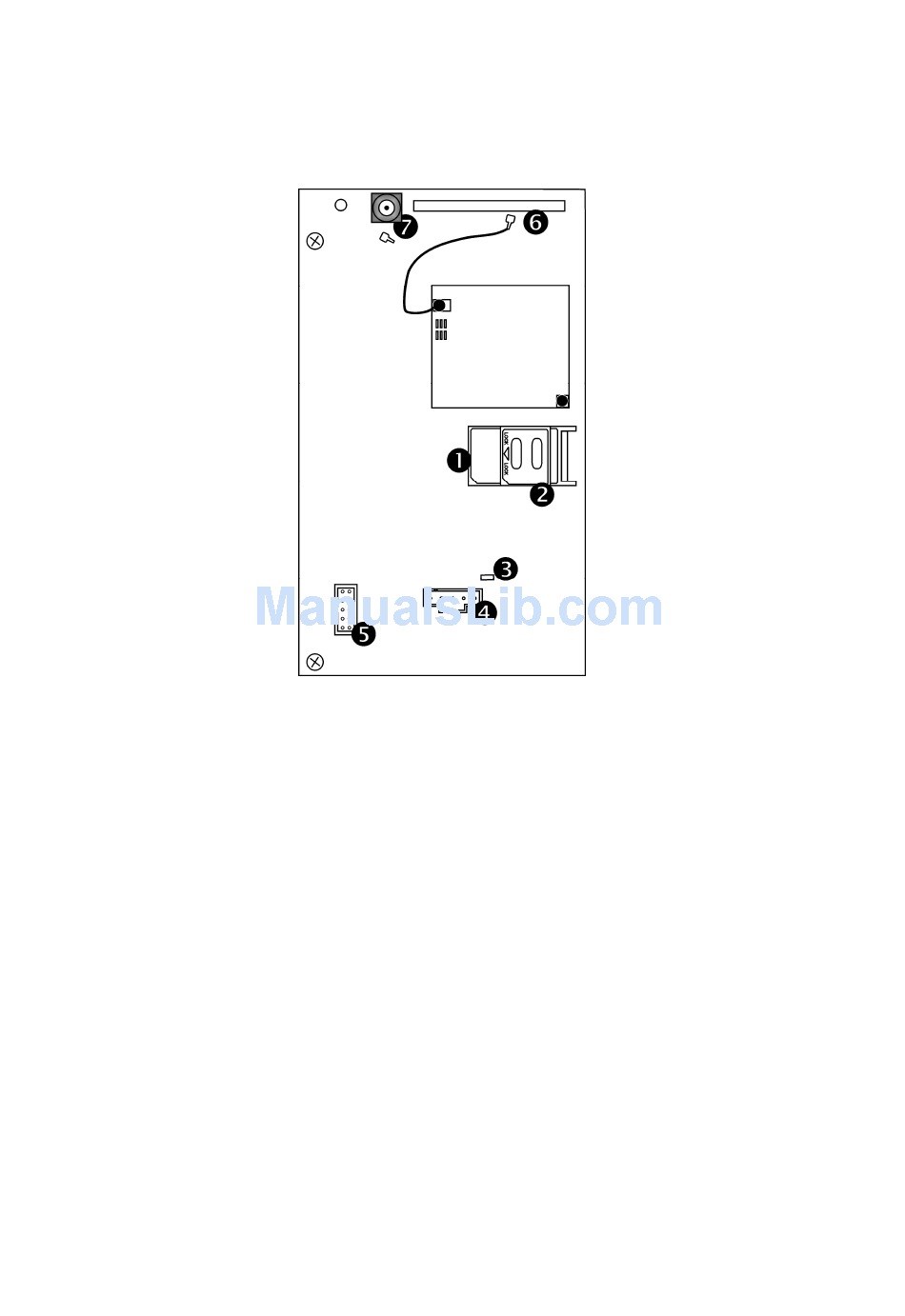

Figure 1.8: Cellular Communications Module
-12-
