Electronics Line Infinite Prime Installation Manual page 10

1.4.2: PSTN Module
The PSTN module provides the system with a standard dialer for communication via the
Public Switched Telephone Network (PSTN).
Do not use VoIP phone lines for communication to the central monitoring station. In certain
cases the system may not transmit alarm signals successfully over the VoIP network.
1. Status LED
2. Flash programming connector
3. Telephone line terminal block (Terminals 1 & 2: Outgoing line to
telephone, Terminals 3 & 4: Incoming line from telephone company)
4. Flat-cable interface connector to Main Board
5. Telephone socket for outgoing line to telephone
6. Telephone socket for incoming line from telephone company
1.4.3: Home Automation Module
The Home Automation module provides the system with an interface to the power-line
network, enabling control over 16 home automation units employing the X10 protocol via
an external or internal Power-line Interface (PLI), depending on your system
configuration. If using the external PLI, connect it to the HA module as shown on figure
1.6, position 5, and figure 1.7, then plug it into power-line. For further information on the
X10 protocol and the choice of options that are available in programming, see Chapter
Eleven: Home Automation Programming. Figure 1.5 shows the HA module used in the
systems with internal PLI.

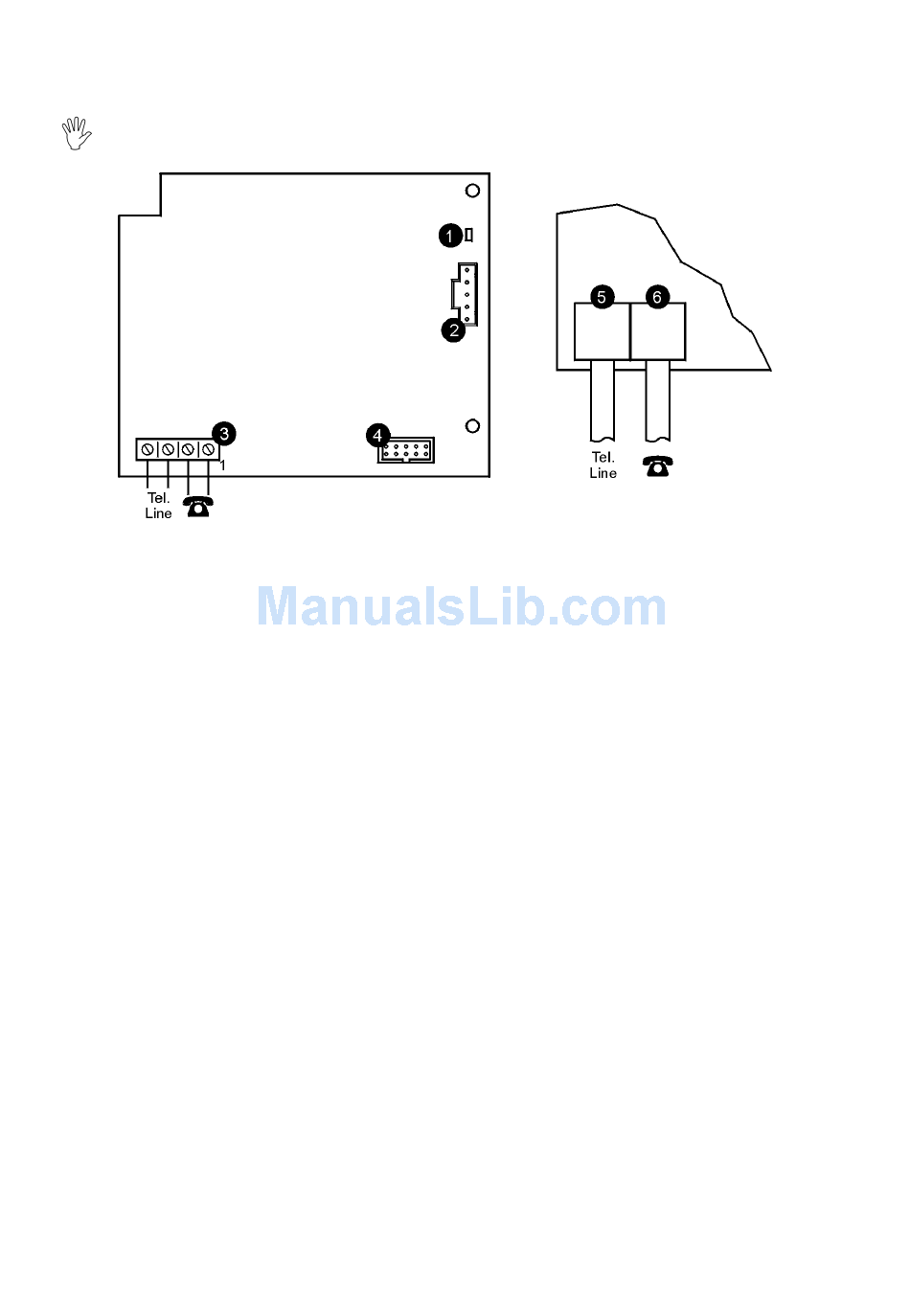

Figure 1.4: PSTN Module
-10-
Alternative
Telephone
Line Socket
Option
