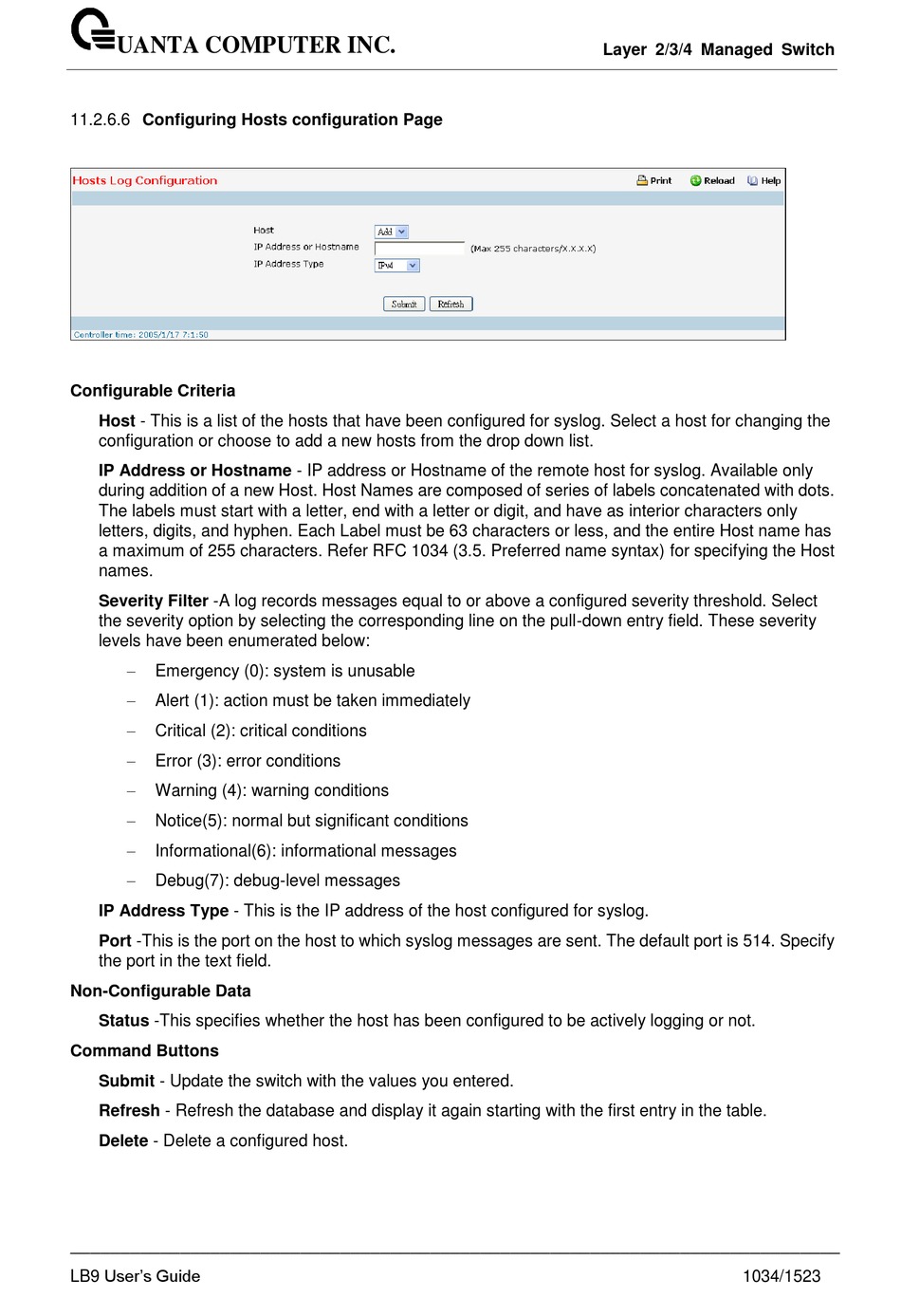

11.2.6.6 Configuring Hosts configuration Page
Configurable Criteria
Host - This is a list of the hosts that have been configured for syslog. Select a host for changing the
configuration or choose to add a new hosts from the drop down list.
IP Address or Hostname - IP address or Hostname of the remote host for syslog. Available only
during addition of a new Host. Host Names are composed of series of labels concatenated with dots.
The labels must start with a letter, end with a letter or digit, and have as interior characters only
letters, digits, and hyphen. Each Label must be 63 characters or less, and the entire Host name has
a maximum of 255 characters. Refer RFC 1034 (3.5. Preferred name syntax) for specifying the Host
names.
Severity Filter -A log records messages equal to or above a configured severity threshold. Select
the severity option by selecting the corresponding line on the pull-down entry field. These severity
levels have been enumerated below:

Emergency (0): system is unusable

Alert (1): action must be taken immediately

Critical (2): critical conditions

Error (3): error conditions

Warning (4): warning conditions

Notice(5): normal but significant conditions

Informational(6): informational messages

Debug(7): debug-level messages
IP Address Type - This is the IP address of the host configured for syslog.
Port -This is the port on the host to which syslog messages are sent. The default port is 514. Specify
the port in the text field.
Non-Configurable Data
Status -This specifies whether the host has been configured to be actively logging or not.
Command Buttons
Submit - Update the switch with the values you entered.
Refresh - Refresh the database and display it again starting with the first entry in the table.
Delete - Delete a configured host.
