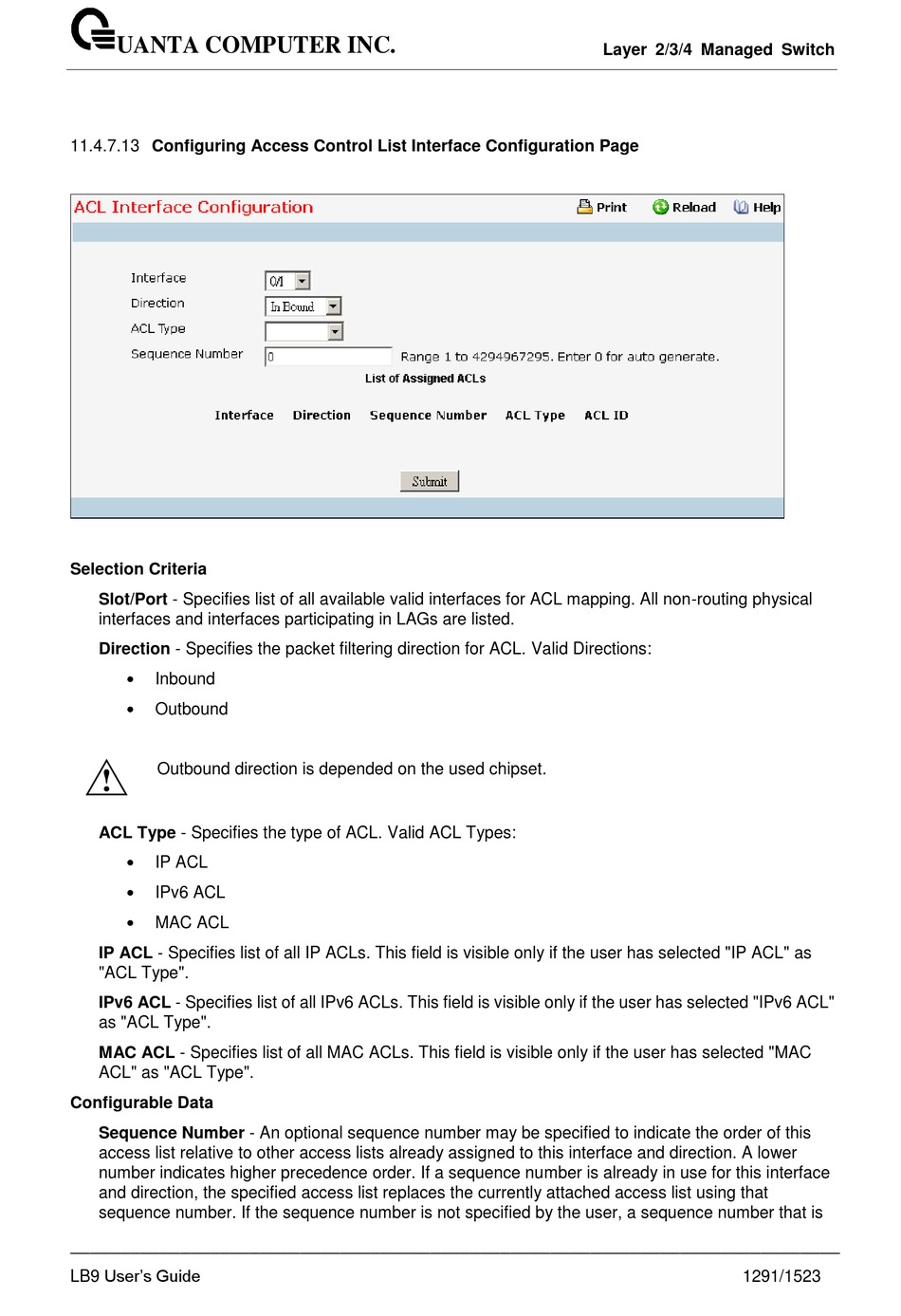

11.4.7.13 Configuring Access Control List Interface Configuration Page
Selection Criteria
Slot/Port - Specifies list of all available valid interfaces for ACL mapping. All non-routing physical
interfaces and interfaces participating in LAGs are listed.
Direction - Specifies the packet filtering direction for ACL. Valid Directions:

Inbound

Outbound
Outbound direction is depended on the used chipset.
!
ACL Type - Specifies the type of ACL. Valid ACL Types:

IP ACL

IPv6 ACL

MAC ACL
IP ACL - Specifies list of all IP ACLs. This field is visible only if the user has selected "IP ACL" as
"ACL Type".
IPv6 ACL - Specifies list of all IPv6 ACLs. This field is visible only if the user has selected "IPv6 ACL"
as "ACL Type".
MAC ACL - Specifies list of all MAC ACLs. This field is visible only if the user has selected "MAC
ACL" as "ACL Type".
Configurable Data
Sequence Number - An optional sequence number may be specified to indicate the order of this
access list relative to other access lists already assigned to this interface and direction. A lower
number indicates higher precedence order. If a sequence number is already in use for this interface
and direction, the specified access list replaces the currently attached access list using that
sequence number. If the sequence number is not specified by the user, a sequence number that is
