MFP stapler assembly sensor (bin full send) removal
1. Remove the stapler/stacker controller card assembly. See
removal" on page

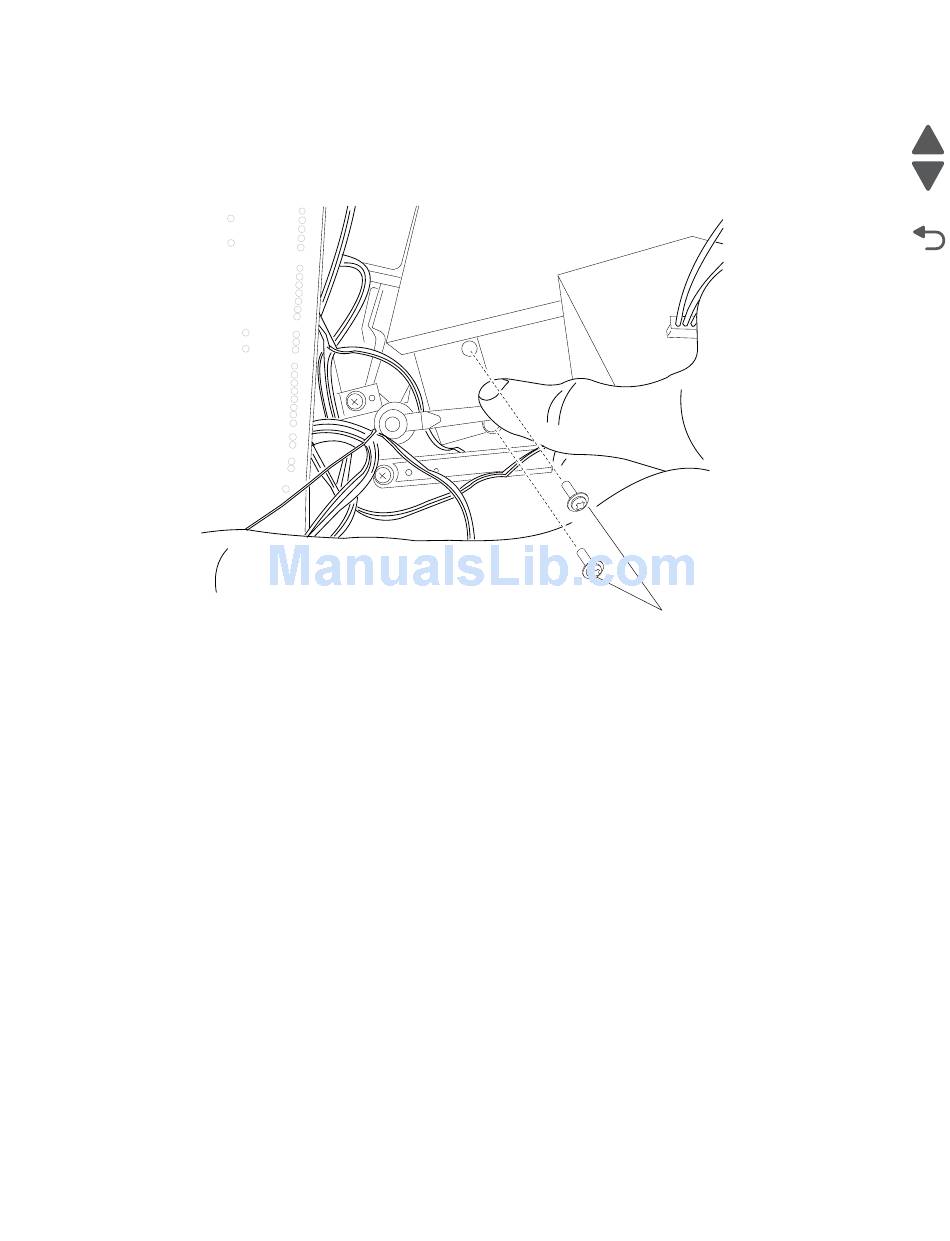

2. Remove the two screws (A) securing the staple finisher sensor (bin full send).
3. Disconnect the harness and remove.
Service Manual
4-214
4-208.
"Stapler/stacker controller card assembly
