3. Swing the fuser access door assembly away from the machine.
4. Unsnap the fuser access door assembly from the machine.
5. Remove the fuser access door assembly.
Main cooling fan removal
1. Remove the side cover, left. See
page 4-121

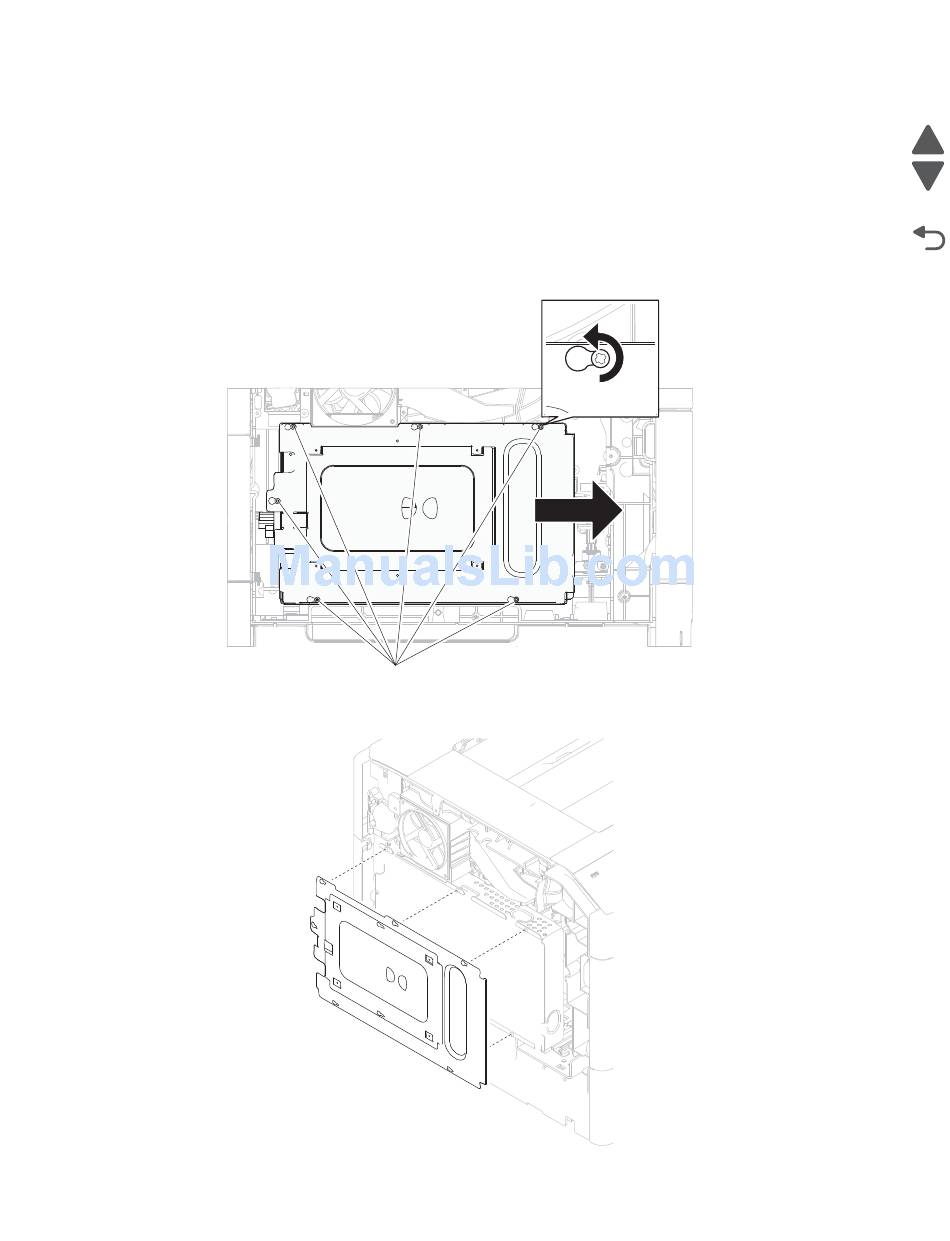

2. Remove the six screws (A) securing the metal shield to the machine.
3. Move the metal shield in the direction of the arrow.
4. Remove the metal shield.
Service Manual
4-14
"Side cover, left removal (models X651, X652, X654, and X656)" on
or
"Side cover, left removal (model X658)" on page
A
4-120.
