Carriage belt tensioner assembly removal

1. Remove the scanner platen glass cover assembly. See
(models X651, X652, X654 and X656)" on page 4-137
removal (model X658)" on page
2. Remove the tensioner spring from the carriage belt tensioner. and remove the carriage belt from the
tensioner pulley.

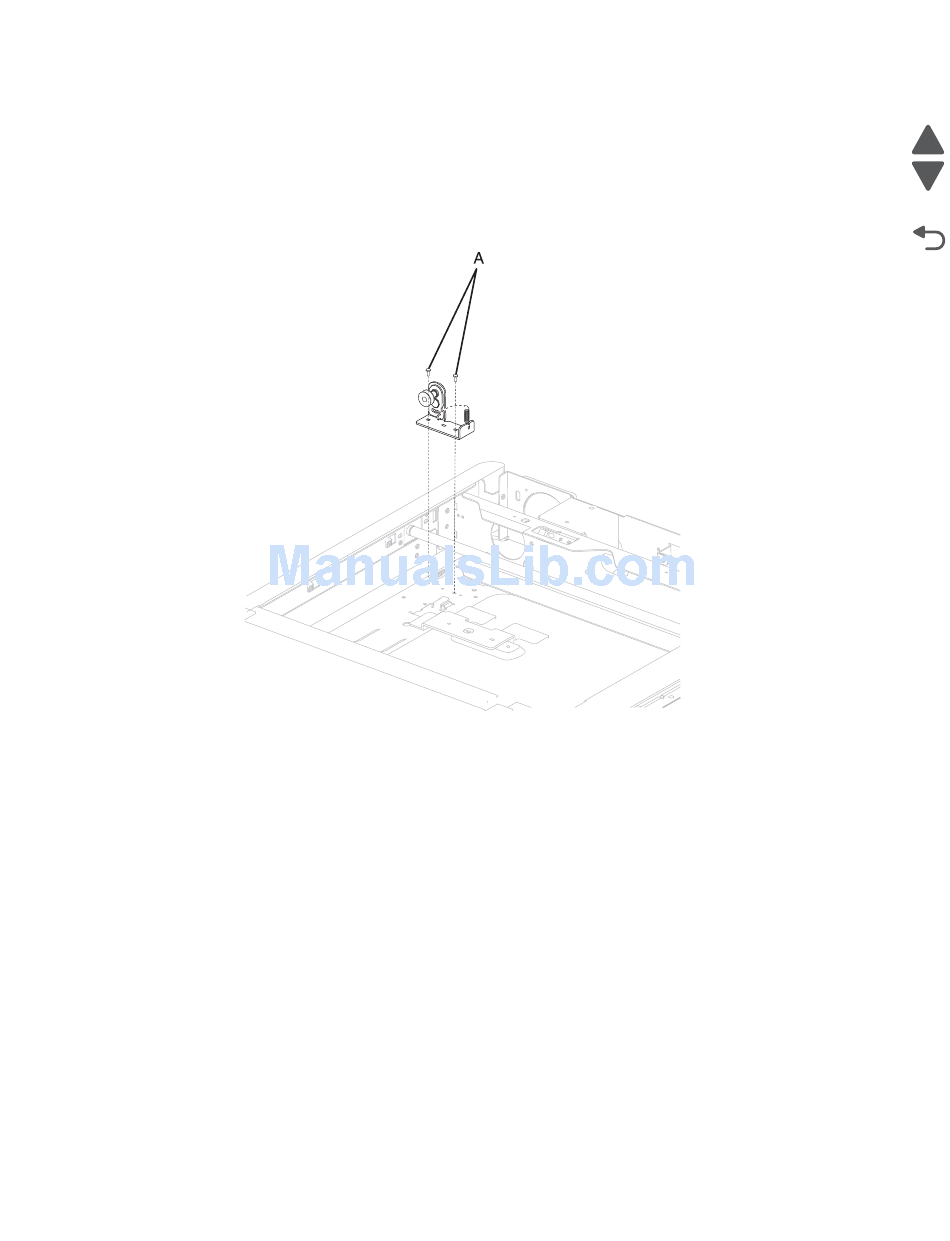

3. Remove the two screws (A) securing the carriage belt tensioner assembly to the flatbed scanner frame.
4. Remove the carriage belt tensioner assembly.
Service Manual
4-140
"Scanner platen glass cover assembly removal
or
"Scanner platen glass cover assembly
4-136.
