Slaving the DMX-R100

There may be circumstances where you want the DMX-R100 to slave to connected devices instead of controlling
them. In such a configuration, either an external SMPTE or MIDI Time Code (MTC) generator can be used as

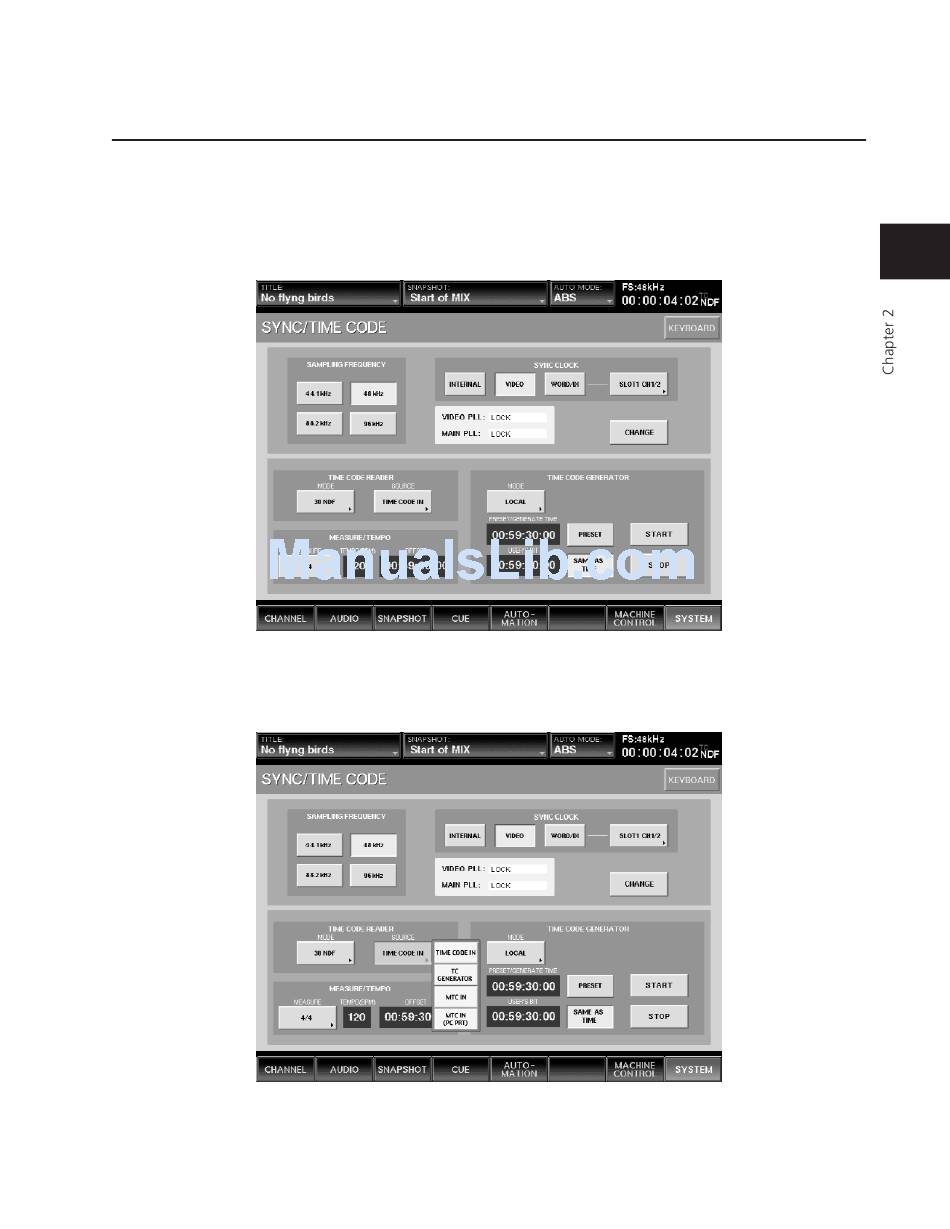

master. These functions are set in the SYNC/TIME CODE Window. To open this window, press the SYSTEM
tab at the bottom of the touchscreen, and, from the pop-up menu select SYNC/TIME CODE. (See Figure 6)
The SOURCE button in the Time Code Reader section of the touchscreen is used to select external SMPTE or
MTC control. (See Figure 7)
Figure 6
Figure 7
Chapter 2 Machine Control and MIDI Functions
2-7
