Channel Windows
A handy RETURN button at the upper right-hand corner of each of these Channel sub-screens allows you to
return to the main Channel window instantly. More information about the use of these windows will be pre-
sented in the tutorials in this guidebook.

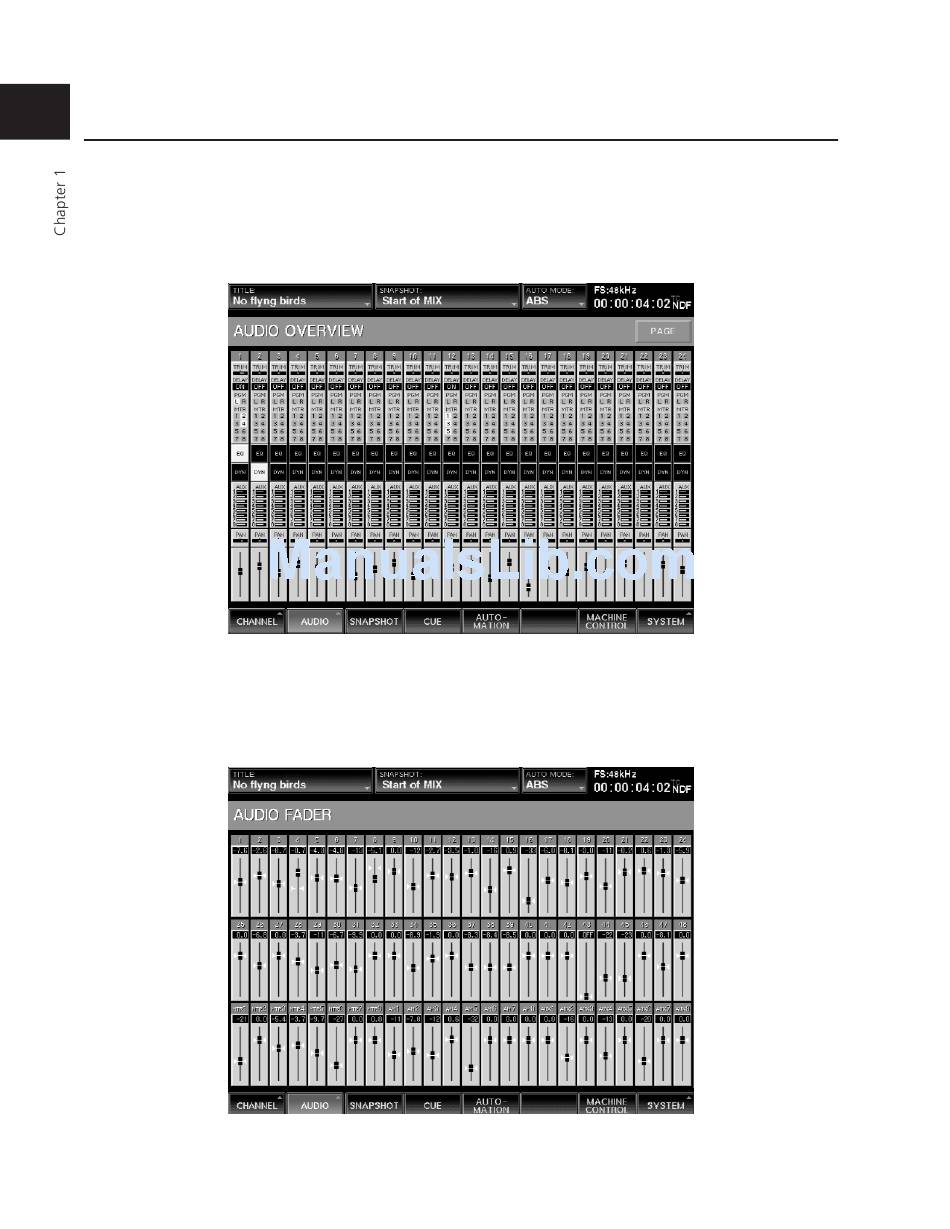

Other handy windows include the Audio Overview window (accessed by pressing the AUDIO tab at the bottom
of the touchscreen, then selecting OVERVIEW). (See Figure 38)
The Audio Overview window gives a fairly detailed report the status of input channels 1 - 24 or 25 - 48 at a
glance (you can switch between them by pressing the PAGE button in the upper right-hand corner of the
screen), while the Faders window shows basic on/off and level information for all channels, Aux sends, and Aux
returns. The Faders window is accessed by pressing the AUDIO tab at the bottom of the touchscreen, then
selecting FADER. (See Figure 39)
